LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPHWHAHDNM271ZR3D2LED COB D GEN2 COOL WHT SQ 5000K |
4,204 |
|
Datasheet | COB D Gen2 | Tray | Last Time Buy | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 11375lm (Typ) | 1.62A | 85°C | 52V | 135 lm/W | 4.14A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNM271ZT3D2LED COB D GEN2 NEUT WHT SQ 4000K |
2,875 |
|
Datasheet | COB D Gen2 | Tray | Last Time Buy | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 11247lm (Typ) | 1.62A | 85°C | 52V | 134 lm/W | 4.14A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNM271ZU3D2LED COB D GEN2 WARM WHT SQ 3500K |
4,763 |
|
Datasheet | COB D Gen2 | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 11004lm (Typ) | 1.62A | 85°C | 52V | 131 lm/W | 4.14A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNM271ZW3D2LED COB D GEN2 WARM WHT SQ 2700K |
2,190 |
|
Datasheet | COB D Gen2 | Tray | Last Time Buy | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 10157lm (Typ) | 1.62A | 85°C | 52V | 121 lm/W | 4.14A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|

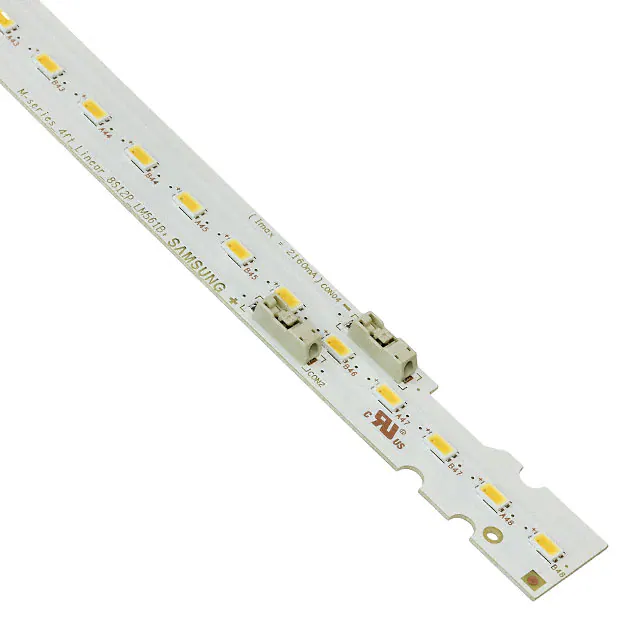

SI-B8T341B20WWLED MOD MSERIES 4FTC 4000K STRIP |
1,243 |
|
Datasheet | M Series 4ft_C | Bulk | Obsolete | LED Module | White, Neutral | 4000K | - | Linear Light Strip | 5310lm (Typ) | 1.4A | 50°C | 24V | 158 lm/W | 2.16A | 80 | 115° | With Connector | 1120.00mm L x 18.00mm W | 5.20mm | - | Flat |
|
|
SI-B8R451B20WWLED MODULES |
3,522 |
|
Datasheet | K | Bulk | Last Time Buy | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 8247lm (7423lm ~ 9072lm) | 1A | 50°C | 45.1V | 183 lm/W | 2A | 80 | 118° | With Connector | 1120.00mm L x 20.00mm W | 4.30mm | - | Flat |
|
|
SI-B8U451B20WWLED MODULES |
4,033 |
|
Datasheet | K | Bulk | Last Time Buy | LED Module | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Linear Light Strip | 7908lm (7117lm ~ 8699lm) | 1A | 50°C | 45.1V | 175 lm/W | 2A | 80 | 118° | With Connector | 1120.00mm L x 20.00mm W | 4.30mm | - | Flat |
|
|
SI-B8T451B20WWLED MODULES |
4,601 |
|
Datasheet | K | Bulk | Last Time Buy | LED Module | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 8112lm (7300lm ~ 8923lm) | 1A | 50°C | 45.1V | 180 lm/W | 2A | 80 | 118° | With Connector | 1120.00mm L x 20.00mm W | 4.30mm | - | Flat |
|
|
SI-B8V451B20WWLED MODULES |
1,907 |
|
Datasheet | K | Bulk | Last Time Buy | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 7795lm (7016lm ~ 8575lm) | 1A | 50°C | 45.1V | 173 lm/W | 2A | 80 | 118° | With Connector | 1120.00mm L x 20.00mm W | 4.30mm | - | Flat |
|
|
SPHWHAHDNM251ZT2D2LED COB D GEN2 NEUT WHT SQ 4000K |
4,742 |
|
Datasheet | COB D Gen2 | Tray | Last Time Buy | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 13123lm (Typ) | 1.62A | 85°C | 52V | 156 lm/W | 4.14A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
