LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

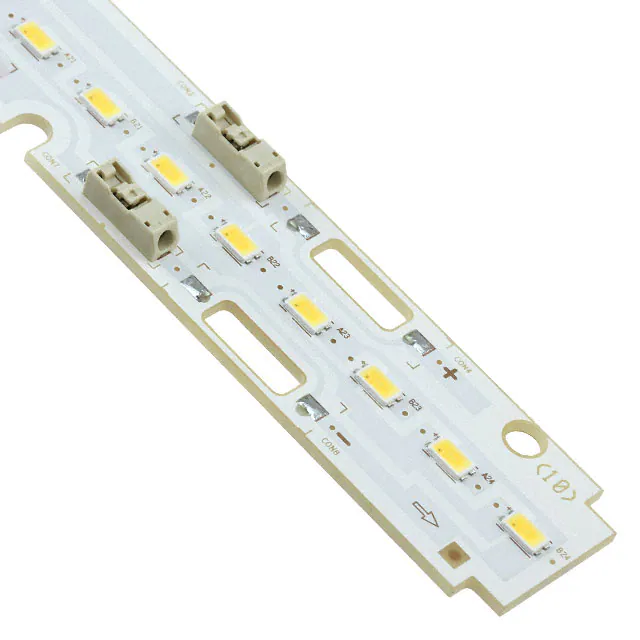

SI-B8R14156LWWLED MOD LT-S562L LNR STRP 5000K |
220 |
|
Datasheet | LT-S562L | Tray | Not For New Designs | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2290lm (Typ) | 400mA | 50°C | 35.2V | 163 lm/W | 720mA | 80 | 115° | With Connector | 559.70mm L x 23.80mm W | 5.80mm | - | Flat |
|
|
SI-B8V14156LWWLED MOD LT-S562L LNR STRP 3000K |
212 |
|
Datasheet | LT-S562L | Tray | Not For New Designs | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2180lm (Typ) | 400mA | 50°C | 35.2V | 155 lm/W | 720mA | 80 | 115° | With Connector | 559.70mm L x 23.80mm W | 5.80mm | - | Flat |
|
SPHWHAHDNM271ZT3DCLED COB D GEN3 NEUT WHT SQ 4000K |
127 |
|
Datasheet | COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 11743lm (Typ) | 1.62A | 85°C | 50.6V | 144 lm/W | 3.24A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
SI-B8R101560USLED ENG LT-Q562A LNR STRP 5000K |
180 |
|
Datasheet | LT-Q562A | Tray | Active | LED Engine | White, Cool | 5000K | - | Linear Light Strip | 2000lm (Typ) | 450mA | 40°C | 21.9V | 203 lm/W | - | 80 | - | - | 560.00mm L x 18.00mm W | 5.80mm | - | Flat |
|
|
SPHWHAHDNM271ZV3DCLED COB D GEN3 WM WHT SQ 3000K |
140 |
|
Datasheet | COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 11139lm (Typ) | 1.62A | 85°C | 50.6V | 137 lm/W | 3.24A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNL231ZT3DCLED COB D GEN3 NEUT WHT SQ 4000K |
150 |
|
Datasheet | COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 9723lm (Typ) | 1.08A | 85°C | 50.6V | 178 lm/W | 2.16A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNL231ZR3DCLED COB D GEN3 COOL WHT SQ 5000K |
146 |
|
Datasheet | COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 9870lm (Typ) | 1.08A | 85°C | 50.6V | 181 lm/W | 2.16A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNL251ZR3DCLED COB D GEN3 COOL WHT SQ 5000K |
125 |
|
Datasheet | COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 9546lm (Typ) | 1.08A | 85°C | 50.6V | 175 lm/W | 2.16A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
SPHWHAHDNM231ZR3DCLED COB D GEN3 COOL WHT SQ 5000K |
159 |
|
Datasheet | COB D Gen3 Plus | Box | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 14449lm (Typ) | 1.62A | 85°C | 50.6V | 177 lm/W | 3.24A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNM251ZQ3D4LED COB D GEN4 COOL WHT SQ 5700K |
138 |
|
Datasheet | COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 14336lm (Typ) | 1.62A | 85°C | 50.5V | 175 lm/W | 4.14A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
