LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPHWHAHDNL231ZV3DBLED COB D GEN2 WM WHT SQ 3000K |
149 |
|
Datasheet | COB D Gen2 Plus | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 9225lm (Typ) | 1.08A | 85°C | 51.1V | 167 lm/W | 2.16A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNK23YZR3D4LED COB D GEN4 COOL WHT SQ 5000K |
160 |
|
Datasheet | COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 6833lm (Typ) | 1.08A | 85°C | 33.6V | 188 lm/W | 2.76A | 70 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNK27YZW3D4LED COB D GEN4 WARM WHT SQ 2700K |
140 |
|
Datasheet | COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 4899lm (Typ) | 1.08A | 85°C | 33.6V | 135 lm/W | 2.76A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNK25YZV3D4LED COB D GEN4 WM WHT SQ 3000K |
135 |
|
Datasheet | COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 6122lm (Typ) | 1.08A | 85°C | 33.6V | 169 lm/W | 2.76A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNK25YZQ3D4LED COB D GEN4 COOL WHT SQ 5700K |
123 |
|
Datasheet | COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Cool | 5700K 3-Step MacAdam Ellipse | - | Square | 6527lm (Typ) | 1.08A | 85°C | 33.6V | 180 lm/W | 2.76A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNK25YZP3D4LED COB D GEN4 COOL WHT SQ 6500K |
122 |
|
Datasheet | COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 6421lm (Typ) | 1.08A | 85°C | 33.6V | 177 lm/W | 2.76A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNK27YZR3D4LED COB D GEN4 COOL WHT SQ 5000K |
110 |
|
Datasheet | COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 5697lm (Typ) | 1.08A | 85°C | 33.6V | 157 lm/W | 2.76A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNM271ZR3DCLED COB D GEN3 COOL WHT SQ 5000K |
142 |
|
Datasheet | COB D Gen3 Plus | Box | Not For New Designs | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 11974lm (Typ) | 1.62A | 85°C | 50.6V | 147 lm/W | 3.24A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
SPHWHAHDNK27YZV3D4LED COB D GEN4 WM WHT SQ 3000K |
147 |
|
Datasheet | COB D Gen4 | Bulk | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 5189lm (Typ) | 1.08A | 85°C | 33.6V | 143 lm/W | 2.76A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.70mm | 22.00mm Dia | Flat |
|

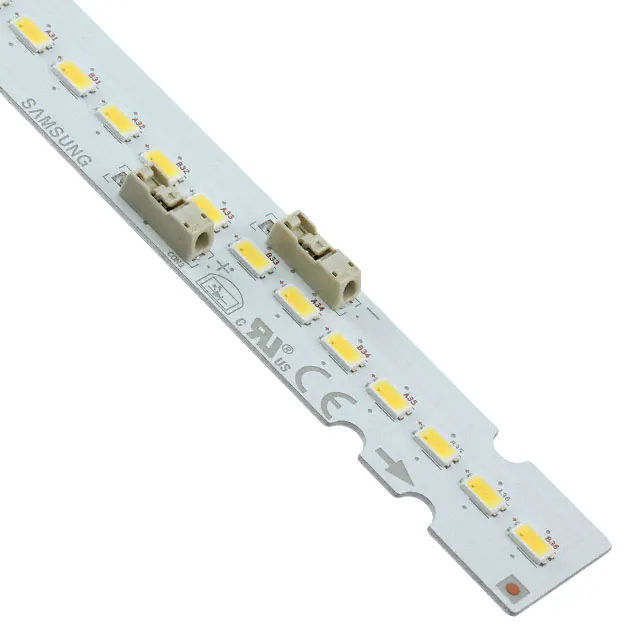

SI-B8R141560LDLED MOD LT-S562N LNR STRP 5000K |
209 |
|
Datasheet | LT-S562N | Tray | Not For New Designs | LED Module | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 2290lm (Typ) | 400mA | 50°C | 35.2V | 163 lm/W | 720mA | 80 | 115° | With Connector | 560.00mm L x 24.00mm W | 5.80mm | - | Flat |
