UARTs (Universal Asynchronous Receiver Transmitter)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Features | Number of Channels | FIFO's | Protocol | Data Rate (Max) | Voltage - Supply | With Auto Flow Control | With IrDA Encoder/Decoder | With False Start Bit Detection | With Modem Control | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC16IS741AIPWJIC UART SGL I2C BUS SPI 16TSSOP |
25,620 |
|
Datasheet | 16-TSSOP (0.173", 4.40mm Width) | - | Tape & Reel (TR) | Active | - | 1, UART | 64 Byte | RS232, RS485 | 5Mbps | 2.3V ~ 3.6V | Yes | Yes | - | Yes | - | - | Surface Mount | 16-TSSOP |
|
TL16C550CPTRIC ASYNC COMM ELEMENT 48-LQFP |
2,425 |
|
Datasheet | 48-LQFP | - | Tape & Reel (TR) | Active | - | 1, UART | 16 Byte | - | 1Mbps | 3V ~ 5.25V | Yes | - | Yes | Yes | - | - | Surface Mount | 48-LQFP (7x7) |
|
|
TL16C550CIPTRIC ASYNC COMM ELEMENT 48-LQFP |
455 |
|
Datasheet | 48-LQFP | - | Tape & Reel (TR) | Active | - | 1, UART | 16 Byte | - | 1Mbps | 3V ~ 5.25V | Yes | - | Yes | Yes | - | - | Surface Mount | 48-LQFP (7x7) |
|
SC16C752BIB48,128IC DUAL UART 64BYTE 48LQFP |
2,237 |
|
Datasheet | 48-LQFP | - | Tape & Reel (TR) | Active | - | 2, DUART | 64 Byte | - | 5Mbps | 2.5V, 3.3V, 5V | Yes | - | Yes | Yes | - | - | Surface Mount | 48-LQFP (7x7) |
|
ST16C2550CQ48-FIC DUART FIFO 16B 48TQFP |
4,015 |
|
Datasheet | 48-TQFP | - | Tray | Active | Internal Oscillator, Timer/Counter | 2, DUART | 16 Byte | RS232, RS485 | 4Mbps | 2.97V ~ 5.5V | - | - | Yes | Yes | - | - | Surface Mount | 48-TQFP (7x7) |
|
ST16C2550CJ44-FIC DUART FIFO 16B 44PLCC |
671 |
|
Datasheet | 44-LCC (J-Lead) | - | Tube | Active | Internal Oscillator, Timer/Counter | 2, DUART | 16 Byte | RS232, RS485 | 4Mbps | 2.97V ~ 5.5V | - | - | Yes | Yes | - | - | Surface Mount | 44-PLCC (16.59x16.59) |
|
|
ST16C2552CJ44-FIC UART FIFO 16B DUAL 44PLCC |
334 |
|
Datasheet | 44-LCC (J-Lead) | - | Tube | Active | Configurable GPIO, Internal Oscillator, Timer/Counter | 2, DUART | 16 Byte | RS232, RS485 | 4Mbps | 2.97V ~ 5.5V | - | - | Yes | Yes | - | - | Surface Mount | 44-PLCC (16.59x16.59) |
|
|
ST16C1550IQ48-FIC UART FIFO 16B 48TQFP |
228 |
|
Datasheet | 48-TQFP | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 48-TQFP (7x7) |
|
|
ST16C2550IQ48-FIC DUART FIFO 16B 48TQFP |
1,384 |
|
Datasheet | 48-TQFP | - | Tray | Active | Internal Oscillator, Timer/Counter | 2, DUART | 16 Byte | RS232, RS485 | 4Mbps | 2.97V ~ 5.5V | - | - | Yes | Yes | - | - | Surface Mount | 48-TQFP (7x7) |
|
ST16C554DIQ64-FIC UART FIFO 16B QUAD 64LQFP |
6,331 |
|
Datasheet | 64-LQFP | - | Tray | Active | Internal Oscillator, Timer/Counter | 4, QUART | 16 Byte | RS232 | 1.5Mbps | 2.97V ~ 5.5V | Yes | - | Yes | Yes | - | - | Surface Mount | 64-LQFP (10x10) |
|
|
ST16C554DCQ64-FIC UART FIFO 16B QUAD 64LQFP |
2,109 |
|
Datasheet | 64-LQFP | - | Tray | Active | Internal Oscillator, Timer/Counter | 4, QUART | 16 Byte | RS232 | 1.5Mbps | 2.97V ~ 5.5V | Yes | - | Yes | Yes | - | - | Surface Mount | 64-LQFP (10x10) |
|
XR17V352IB113-FIC UART PCIE 256B DUAL 113FBGA |
4,258 |
|
Datasheet | 113-LFBGA | - | Tray | Active | - | 2, DUART | 256 Byte | RS485 | 31.25Mbps | 3.3V | Yes | Yes | Yes | Yes | - | - | Surface Mount | 113-FPBGA (9x9) |
|

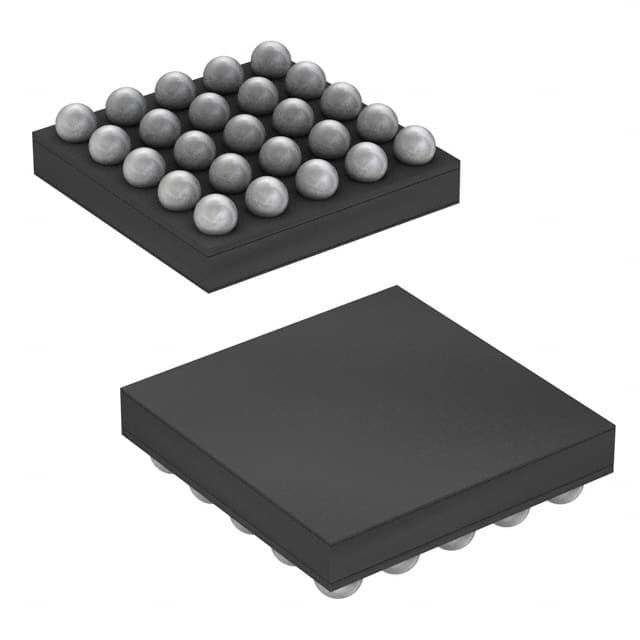

MAX3108EWA+TIC UART SPI/I2C 128-WORD 25WLP |
4,946 |
|
Datasheet | 25-WFBGA, WLCSP | - | Tape & Reel (TR) | Active | Internal Oscillator | 1, UART | 128 Byte | RS232, RS485 | - | 1.71V ~ 3.6V | Yes | Yes | - | - | - | - | Surface Mount | 25-WLP (2.19x2.19) |
|
MAX3109ETJ+TIC UART DUAL 32-TQFN |
5,996 |
|
Datasheet | 32-WFQFN Exposed Pad | - | Tape & Reel (TR) | Active | Internal Oscillator | 2, DUART | 128 Byte | RS232, RS485 | 24Mbps | 1.71V ~ 3.6V | Yes | Yes | Yes | - | - | - | Surface Mount | 32-TQFN (5x5) |
|
|
MAX3109ETJ+IC UART DUAL 32-TQFN |
261 |
|
Datasheet | 32-WFQFN Exposed Pad | - | Tube | Active | Internal Oscillator | 2, DUART | 128 Byte | RS232, RS485 | 24Mbps | 1.71V ~ 3.6V | Yes | Yes | Yes | - | - | - | Surface Mount | 32-TQFN (5x5) |
|
XR17V354IB176-FIC UART PCIE 256B QUAD 176FBGA |
977 |
|
Datasheet | 176-LFBGA | - | Tray | Active | - | 4, QUART | 256 Byte | RS485 | 31.25Mbps | 3.3V | Yes | Yes | Yes | Yes | - | - | Surface Mount | 176-FPBGA (13x13) |
|
|
XR17V358IB176-FIC UART PCIE OCTAL 176FBGA |
2,223 |
|
Datasheet | 176-LFBGA | - | Tray | Active | - | 8 | 256 Byte | RS485 | 31.25Mbps | 1.2V, 3.3V | Yes | Yes | Yes | Yes | - | - | Surface Mount | 176-FPBGA (13x13) |
|

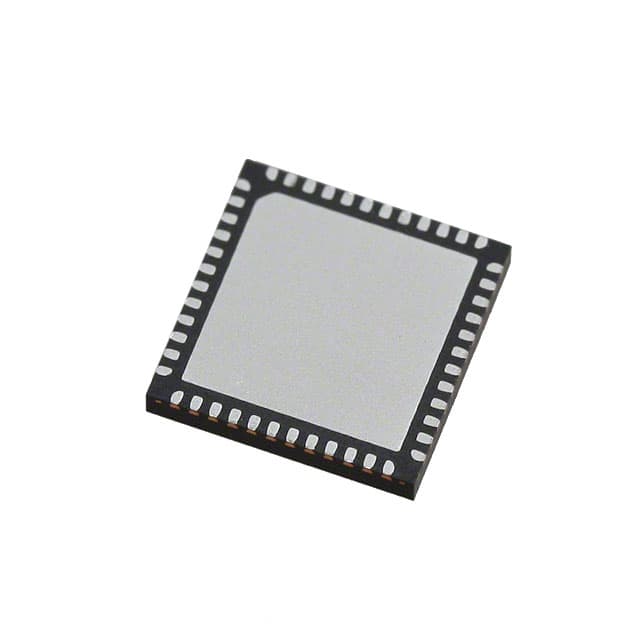

XR16V654IL-FIC UART FIFO 64B QUAD 48QFN |
382 |
|
Datasheet | 48-VFQFN Exposed Pad | - | Tray | Active | Internal Oscillator, Timer/Counter | 4, QUART | 64 Byte | RS232 | 16Mbps | 2.25V ~ 3.6V | Yes | Yes | Yes | Yes | - | - | Surface Mount | 48-QFN (7x7) |
|

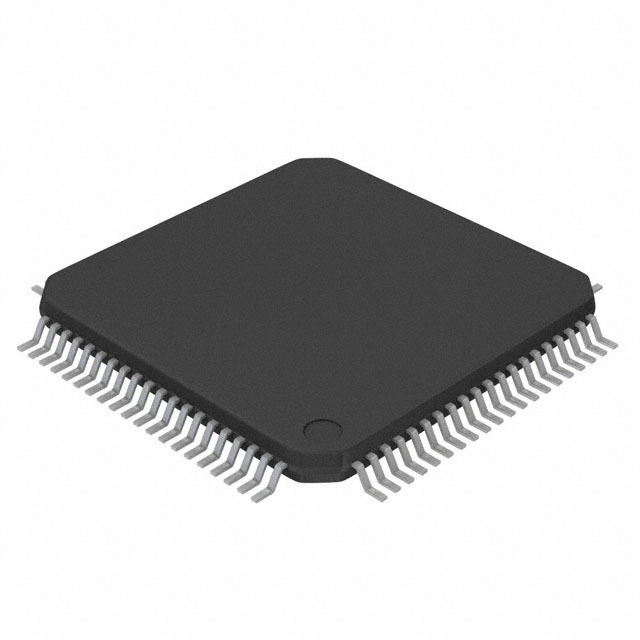

TL16C554APNIC QUAD UART W/FIFO 80-LQFP |
510 |
|
Datasheet | 80-LQFP | - | Tray | Active | - | 4, QUART | 16 Byte | - | 1Mbps | 3V ~ 5.25V | Yes | - | Yes | Yes | - | - | Surface Mount | 80-LQFP (12x12) |
|
MAX14830ETM+TIC UART QUAD 48-TQFN |
3,791 |
|
Datasheet | 48-WFQFN Exposed Pad | - | Tape & Reel (TR) | Active | Internal Oscillator | 4, QUART | 128 Byte | RS232, RS485 | - | 1.71V ~ 3.6V | Yes | Yes | - | - | - | - | Surface Mount | 48-TQFN (7x7) |
