Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NBB2-12GM40-E2-5M-PURINDUCTIVE DC |
3,876 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.079" (2mm) | PNP-NO, 3-Wire | - | Unshielded | Brass | 5V ~ 36V | Cable | -40°C ~ 85°C | IP65, IP66, IP67, IP68 | LED |
|
|
NBB10-30GK50-E2INDUCTIVE DC |
1,771 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.394" (10mm) | PNP-NO, 3-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 30V | Cable | -25°C ~ 70°C | IP68, IP69K | LED |
|
|
NBN15-30GK50-E0INDUCTIVE DC |
4,230 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.591" (15mm) | NPN-NO, 3-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 30V | Cable | -25°C ~ 70°C | IP68, IP69K | LED |
|
|
NJ2-11-N-Y14235INDUCTIVE NAMUR |
2,835 |
|
Datasheet | - | Cylinder | Box | Active | Inductive | 0.079" (2mm) | NAMUR-NC, 2-Wire | - | Unshielded | Polyvinylidene Difluoride (PVDF) | 8V | Cable | -25°C ~ 100°C | IP68 | No Indicator |
|
|
SJ2-NINDUCTIVE NAMUR |
4,488 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.079" (2mm) | NAMUR-NC, 2-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 5V ~ 25V | Cable | -25°C ~ 100°C | IP67 | No Indicator |
|
|
NBN15-30GK50-E2INDUCTIVE DC |
4,936 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Active | Inductive | 0.591" (15mm) | PNP-NO, 3-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 10V ~ 30V | Cable | -25°C ~ 70°C | IP68, IP69K | LED |
|

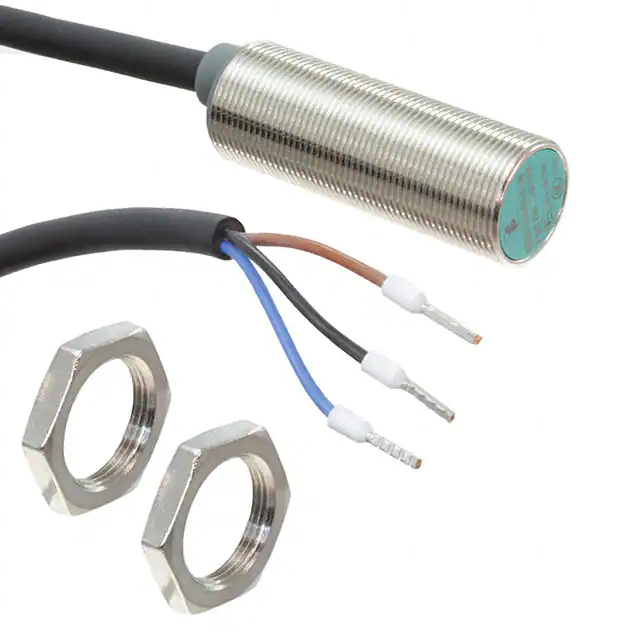

NBB8-18GM50-E2-MINDUCTIVE SEN 8MM PNP |
3,802 |
|
Datasheet | - | Cylinder, Threaded - M18 | Box | Obsolete | Inductive | 0.315" (8mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 60V | Cable | -40°C ~ 85°C | IP68, IP69K | LED |
|
|
NBB8-18GM50-E2-V1-Y220132INDUCTIVE DC |
3,169 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
NEN6-8GM40-E2-V1SENSOR 6MM NO PNP |
3,401 |
|
- |
- | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.236" (6mm) | PNP-NO, 3-Wire | - | Unshielded | Nickel-Plated Brass | 5V ~ 30V | Connector | -40°C ~ 85°C | IP67 | LED |
|
|
NBB2-V3-Z4L-3G-3DINDUCTIVE DC |
1,984 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.079" (2mm) | NO, 2-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 3.7V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
