Proximity Sensors - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Sensor Type | Sensing Distance | Output Type | Response Frequency | Shielding | Material - Body | Voltage - Supply | Termination Style | Operating Temperature | Ingress Protection | Indicator |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NBB2-V3-E2-Y205564INDUCTIVE DC |
3,995 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
NBB20-L2-E3-V1INDUCTIVE DC |
1,729 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.787" (20mm) | PNP-NC, 3-Wire | - | Unshielded | Polyamide (PA) | 10V ~ 30V | Connector | -25°C ~ 85°C | IP69K | LED |
|
NBB10-30GM60-A2INDUCTIVE SEN 10MM PNP |
2,336 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Obsolete | Inductive | 0.394" (10mm) | NPN-NC/NO, 4-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|

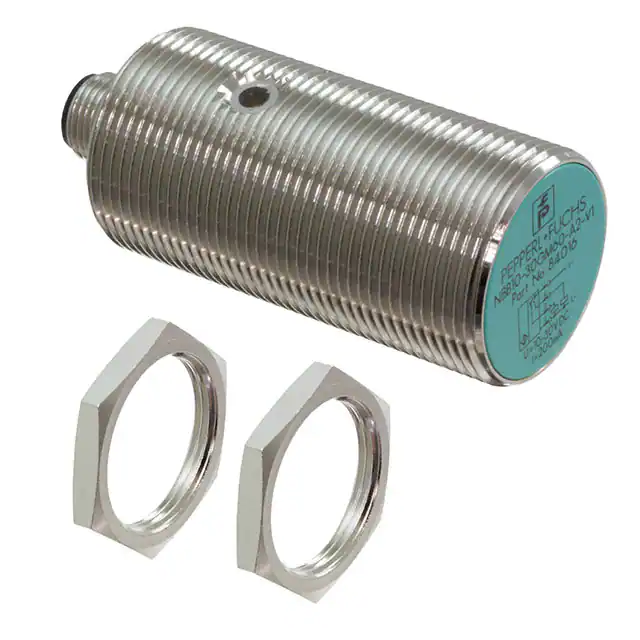

NBB10-30GM60-A2-V1INDUCTIVE SEN 10MM PNP |
3,164 |
|
Datasheet | - | Cylinder, Threaded - M30 | Box | Obsolete | Inductive | 0.394" (10mm) | NPN-NC/NO, 4-Wire | - | Unshielded | Nickel-Plated Brass | 10V ~ 30V | Connector | -40°C ~ 70°C | IP67 | LED |
|
|
NJ4-12GK-N-Y10454INDUCTIVE NAMUR |
4,207 |
|
Datasheet | - | Cylinder, Threaded - M12 | Box | Active | Inductive | 0.157" (4mm) | NAMUR-NC, 2-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 8.2V | Cable | -25°C ~ 100°C | IP68 | No Indicator |
|
|
NBB3-V3-Z5-V5INDUCTIVE DC |
4,205 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.118" (3mm) | NC, 2-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 5V ~ 60V | Connector | -25°C ~ 70°C | IP67 | LED |
|
|
NBB3-V3-Z5INDUCTIVE DC |
2,739 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.118" (3mm) | NC, 2-Wire | - | Unshielded | Polybutylene Terephthalate (PBT) | 5V ~ 60V | Cable | -25°C ~ 70°C | IP67 | LED |
|
|
NBN4-V3-E2-0.2M-V3INDUCTIVE DC |
4,080 |
|
- |
- | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
3RG4075-0AH00-PFINDUCTIVE DC |
2,556 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.197" (5mm) | PNP, 3-Wire | - | Unshielded | Plastic | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
|
|
3RG4075-0AJ00-PFINDUCTIVE DC |
2,125 |
|
Datasheet | - | Module | Box | Active | Inductive | 0.197" (5mm) | PNP, 3-Wire | - | Unshielded | Plastic | 10V ~ 30V | Cable | -25°C ~ 70°C | IP67 | LED |
