Photoelectric, Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensing Method | Sensing Distance | Voltage - Supply | Response Time | Output Configuration | Light Source | Connection Method | Ingress Protection | Cable Length | Adjustment Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q60BB6AFV1000QPHOTO SEN 200-1000MM BIPOLAR |
3,589 |
|
Datasheet | Q60 | Box | Active | Background Suppression | 39.370" (1m) | 10V ~ 30V | 2ms | NPN/PNP - Dark-ON/Light-ON | Red LED | Connector | NEMA 6P, IP67 | - | Adjustable | -20°C ~ 55°C |
|
Q60VR3AF2000PHOTO SEN 200-2000MM SPST |
4,209 |
|
Datasheet | Q60 | Box | Active | Background Suppression | 7.87" ~ 78.74" (200mm ~ 2000mm) | 12VDC ~ 250VDC, 24VAC ~ 250VAC | 15ms | SPDT | Infrared LED | Cable | NEMA 6P, IP67 | 78.74" (2m) | Adjustable | -20°C ~ 55°C |
|
S183EPHOTO SEN EMITTER 20M |
3,165 |
|
Datasheet | S18 | Box | Active | Through-Beam | 787.402" (20m) | 20 VAC ~ 250 VAC | - | - | Infrared LED | Cable | NEMA 6P, IEC IP67, IEC IP69K | 78.74" (2m) | - | -40°C ~ 70°C |
|
S18SP6DQPHOTO SEN DIFFUSE 100MM PNP |
4,482 |
|
Datasheet | S18 | Box | Active | Diffuse | 3.937" (100mm) | 10V ~ 30V | 3ms | PNP - Dark-ON/Light-ON | Infrared LED | Connector | NEMA 6P, IEC IP69K | - | - | -40°C ~ 70°C |
|
PT300PHOTO SEN RECEIVER 2.4M/LR300 |
496 |
|
Datasheet | - | Box | Active | - | 7.87' (2.4m) | - | - | - | - | - | - | - | - | -40°C ~ 85°C |
|
S18-2VPLP-5MPOLARIZED RETROREFLECTIVE SENSOR |
3,810 |
|
Datasheet | S18-2 | Bag | Active | Retroreflective, Polarized | 236.22" (6m) | 10V ~ 30V | 1.5ms | PNP - Dark-ON/Light-ON | Red LED | Cable | IEC IP67 | 196.85" (5m) | - | -40°C ~ 70°C |
|
Q456EQ5PHOTO SEN EMITTER 60M |
3,366 |
|
Datasheet | Q45 | Box | Active | Through-Beam | 196.85' (60m) | 10V ~ 30V | 2ms | NPN/PNP | Infrared (880nm) | Connector | NEMA 6P, IEC IP67 | - | Adjustable | -40°C ~ 70°C |
|
PBPF215UPLASTIC FIBER, DIFFUSE REFLECTIV |
3,464 |
|
Datasheet | PBPF2 | Box | Active | Reflective, Diffuse | - | - | - | - | - | - | - | - | - | 70°C |
|

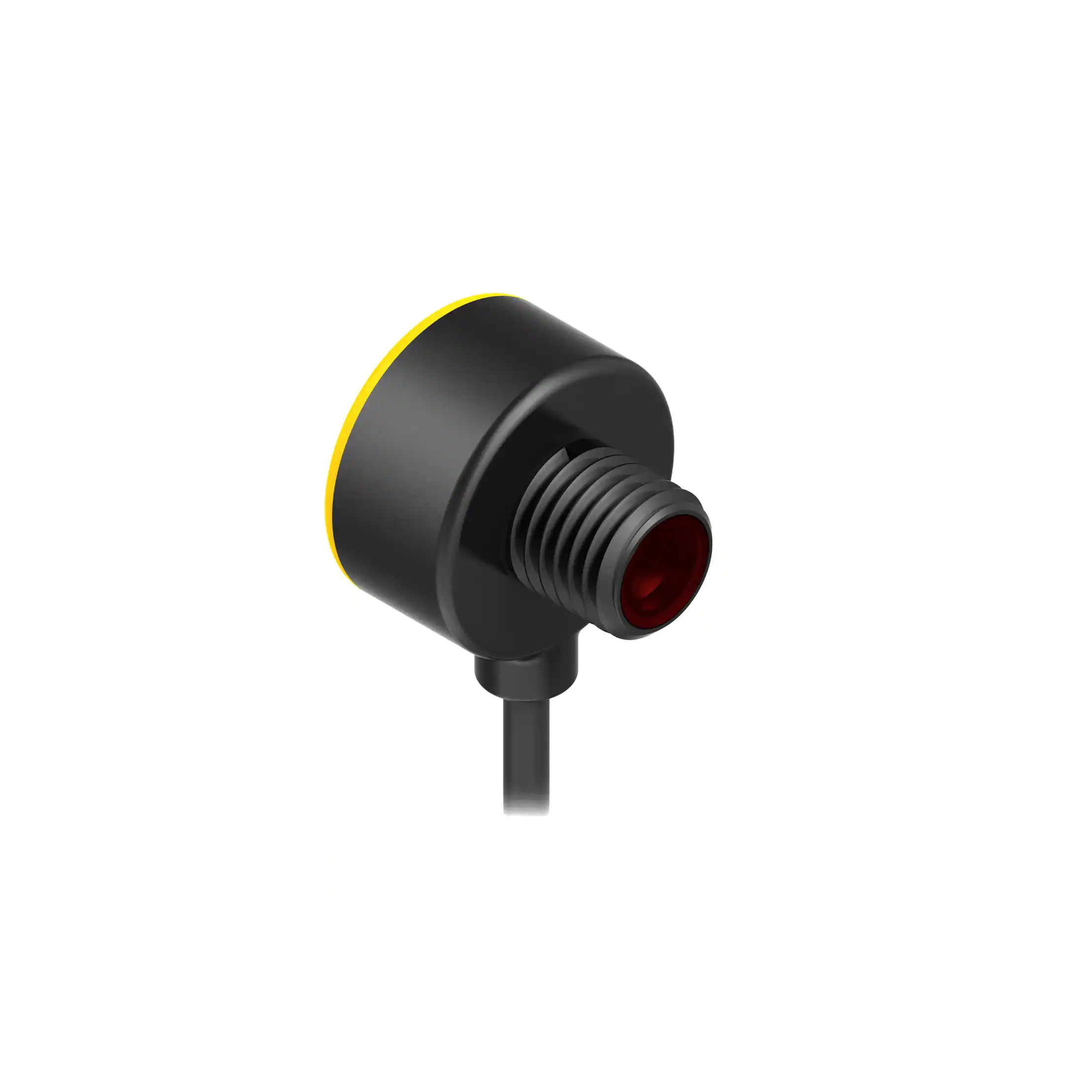

T8AN6RT8 SERIES: OPPOSED MODERANGE |
4,090 |
|
Datasheet | T8 | Box | Active | Through-Beam | 78.740" (2m) | 10V ~ 30V | 1ms | NPN - Light-ON | Red LED | Cable with Connector | NEMA 6P, IEC IP67 | 78.74" (2m) | - | -20°C ~ 55°C |
|
Q2XANAF150-2MSENSOR, ADJ FLD, 150MM, 10-30VDC |
2,045 |
|
Datasheet | Q2X | Box | Active | Background Suppression | 0.709" ~ 5.906" (18mm ~ 150mm) | 10V ~ 30V | 850µs | NPN - Light-ON | Red (645nm) | Cable | IP67 | 78.74" (2m) | Adjustable, 3-Turn Potentiometer | -25°C ~ 50°C |
