Photoelectric, Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensing Method | Sensing Distance | Voltage - Supply | Response Time | Output Configuration | Light Source | Connection Method | Ingress Protection | Cable Length | Adjustment Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PBT26UFIBER REFLECT 0.5MM THREADED |
3,404 |
|
Datasheet | PBT2 | Box | Active | Reflective, Diffuse | - | - | - | - | - | - | - | - | - | 70°C |
|
QS186EQ8PHOTO SEN EMITTER 20M |
2,241 |
|
Datasheet | QS18 | Bag | Active | Through-Beam | 787.402" (20m) | 10V ~ 30V | - | - | LED | Connector | NEMA 6P, IEC IP67 | - | - | -20°C ~ 70°C |
|
S18SP6DPHOTO SEN DIFFUSE 100MM PNP |
222 |
|
Datasheet | S18 | Box | Active | Diffuse | 3.937" (100mm) | 10V ~ 30V | 3ms | PNP - Dark-ON/Light-ON | Infrared (880nm) | Cable | NEMA 6P, IEC IP67, IEC IP69K | 78.74" (2m) | - | -40°C ~ 70°C |
|
Q14AN6RPHOTO SEN RECEIVER 1.8M LO NPN |
613 |
|
Datasheet | Q14 | Box | Active | Through-Beam | 70.866" (1.8m) | 10V ~ 30V | 8ms | NPN - Light-ON | Infrared LED | Cable | NEMA 4, IP54 | 78.74" (2m) | - | -20°C ~ 55°C |
|
PBCT46UPHOTO FIBER 1.0MM CORE |
1,267 |
|
Datasheet | PBCT4 | Box | Active | Reflective, Diffuse | - | - | - | - | - | - | - | - | - | 70°C |
|

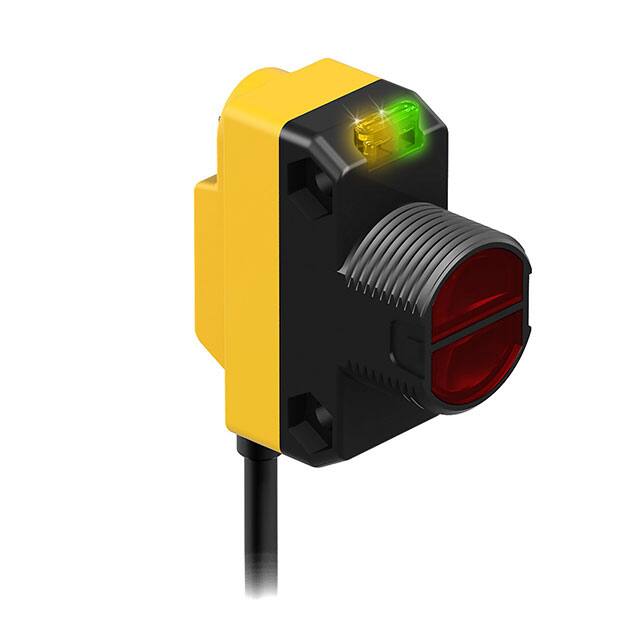

QS18VN6DPHOTO SEN DIFFUSED 450MM NPN |
3,924 |
|
Datasheet | QS18 | Box | Active | Diffuse | 17.717" (450mm) | 10V ~ 30V | 600µs | NPN - Dark-ON/Light-ON | LED | Cable | NEMA 6P, IEC IP67 | 78.74" (2m) | Adjustable, Potentiometer | -20°C ~ 70°C |
|
QS18EP6WQ5WORLD-BEAM QS18 EXPERT SERIES: D |
102 |
|
Datasheet | QS18 | Box | Active | Diffuse | 11.811" (300mm) | 10V ~ 30V | 600µs | PNP - Dark-ON/Light-ON - Selectable | Infrared (940nm) | Connector | NEMA 6P, IEC IP67 | - | Adjustable | -20°C ~ 70°C |
|
T18-2VNFF50IR-Q8T18-2 IR 50MM NPN M12 4PIN |
4,501 |
|
Datasheet | T18-2 | Bulk | Active | Background Suppression | 1.969" (50mm) | 10V ~ 30V | 2ms, 2ms | NPN - Dark-ON/Light-ON - Selectable | Infrared | Connector | NEMA 6P, IEC IP67, IEC IP68, IEC IP69 | - | - | -40°C ~ 70°C |
|
Q45BB6RQ5PHOTO SEN RECEIVER 60M BIPOLAR |
2,691 |
|
Datasheet | Q45 | Box | Active | Through-Beam | 196.85' (60m) | 10V ~ 30V | 2ms | NPN/PNP | Infrared (880nm) | Connector | NEMA 6P, IEC IP67 | - | Adjustable | -40°C ~ 70°C |
|
SME312FPQDPHOTO SEN 1 NPN 1 PNP |
1,894 |
|
Datasheet | SME312 | Box | Active | Fiber Optic | - | 10V ~ 30V | 500µs | NPN/PNP | Red (650nm) | Cable | NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13, IEC IP67 | 78.74" (2m) | Adjustable | -20°C ~ 70°C |
