Photoelectric, Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensing Method | Sensing Distance | Voltage - Supply | Response Time | Output Configuration | Light Source | Connection Method | Ingress Protection | Cable Length | Adjustment Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PDIS16UM10PLASTIC FIBER, OPPOSED MODEC |
2,325 |
|
Datasheet | PDIS1 | Box | Active | Through-Beam | - | - | - | - | - | - | - | - | - | 70°C |
|

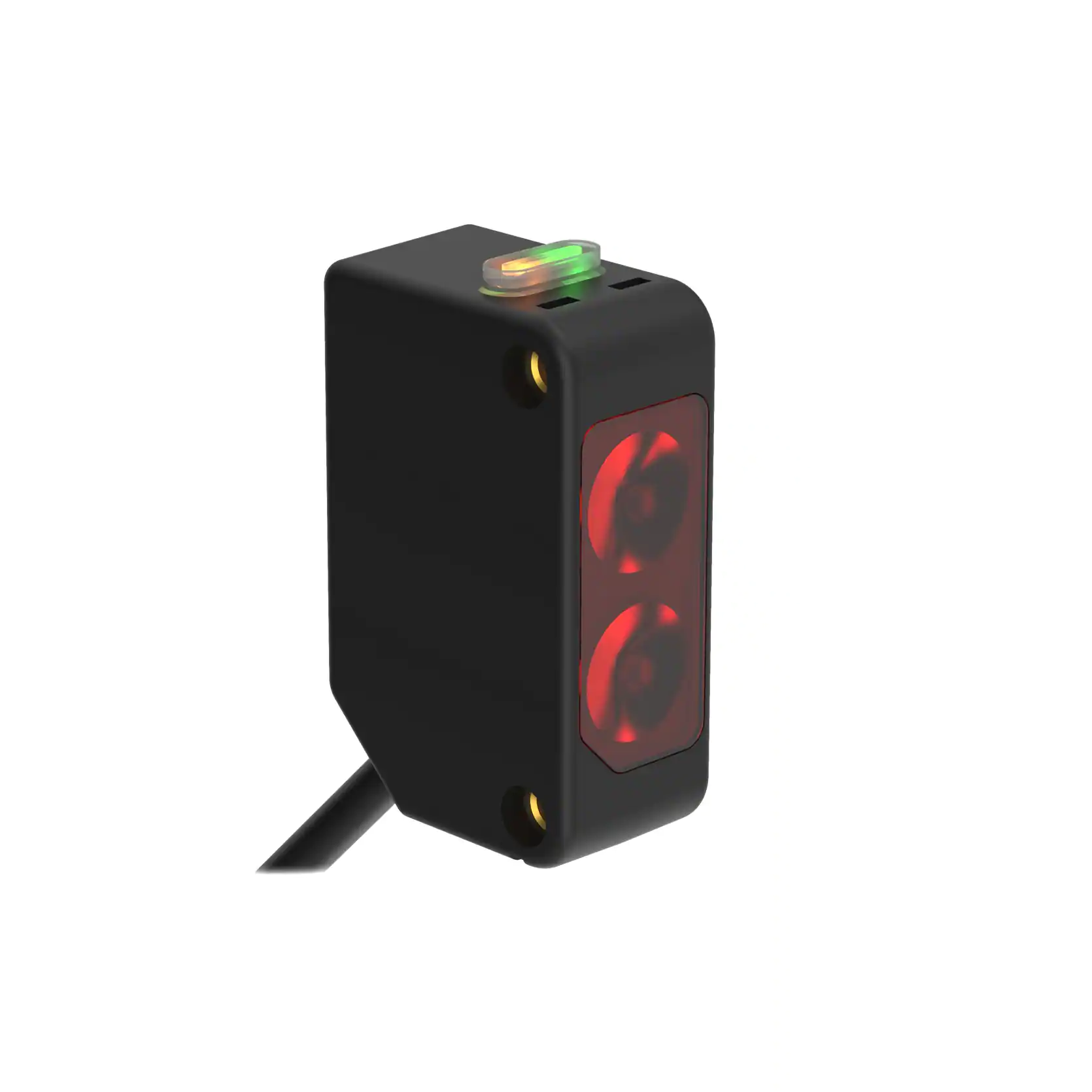

Q20NFF50QWORLD-BEAM Q20 SERIES: FIXED-FIE |
4,497 |
|
Datasheet | Q20 | Box | Active | Background Suppression | 1.969" (50mm) | 10V ~ 30V | 800µs | NPN - Dark-ON/Light-ON - Selectable | Red (655nm) | Connector | NEMA 6P, IEC IP67 | - | - | -20°C ~ 60°C |
|
Q20PFF50QWORLD-BEAM Q20 SERIES: FIXED-FIE |
2,635 |
|
Datasheet | Q20 | Box | Active | Background Suppression | 1.969" (50mm) | 10V ~ 30V | 800µs | PNP - Dark-ON/Light-ON - Selectable | Red (655nm) | Connector | NEMA 6P, IEC IP67 | - | - | -20°C ~ 60°C |
|
|
Q20PFF150QWORLD-BEAM Q20 SERIES: FIXED-FIE |
1,408 |
|
Datasheet | Q20 | Box | Active | Background Suppression | 5.906" (150mm) | 10V ~ 30V | 800µs | PNP - Dark-ON/Light-ON - Selectable | Red (655nm) | Connector | NEMA 6P, IEC IP67 | - | - | -20°C ~ 60°C |
|
Q20PLPQPHOTO SEN RETRO 4M PNP |
4,341 |
|
Datasheet | Q20 | Bag | Active | Retroreflective, Polarized | 13.12' (4m) | 10V ~ 30V | 800µs | PNP - Dark-ON/Light-ON | Red (645nm) | Connector | NEMA 6P, IEC IP67 | - | Adjustable, Potentiometer | -20°C ~ 60°C |
|

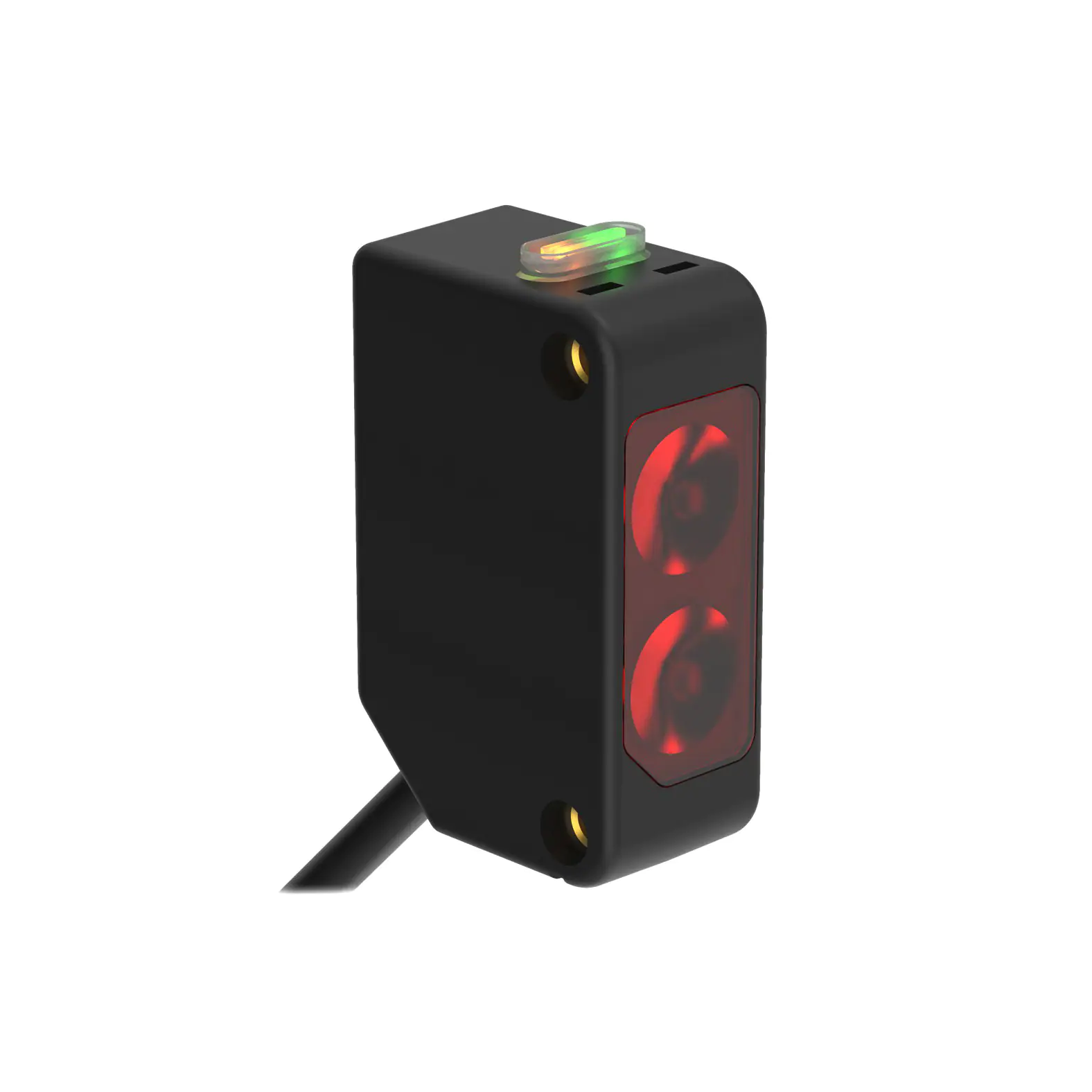

Q20NFF150Q5WORLD-BEAM Q20 SERIES: FIXED-FIE |
2,288 |
|
Datasheet | Q20 | Box | Active | Background Suppression | 5.906" (150mm) | 10V ~ 30V | 800µs | NPN - Dark-ON/Light-ON - Selectable | Red (655nm) | Connector | NEMA 6P, IEC IP67 | - | - | -20°C ~ 60°C |
|
|
Q20NFF100Q5WORLD-BEAM Q20 SERIES: FIXED-FIE |
1,416 |
|
Datasheet | Q20 | Box | Active | Background Suppression | 3.937" (100mm) | 10V ~ 30V | 800µs | NPN - Dark-ON/Light-ON - Selectable | Red (655nm) | Connector | NEMA 6P, IEC IP67 | - | - | -20°C ~ 60°C |
|

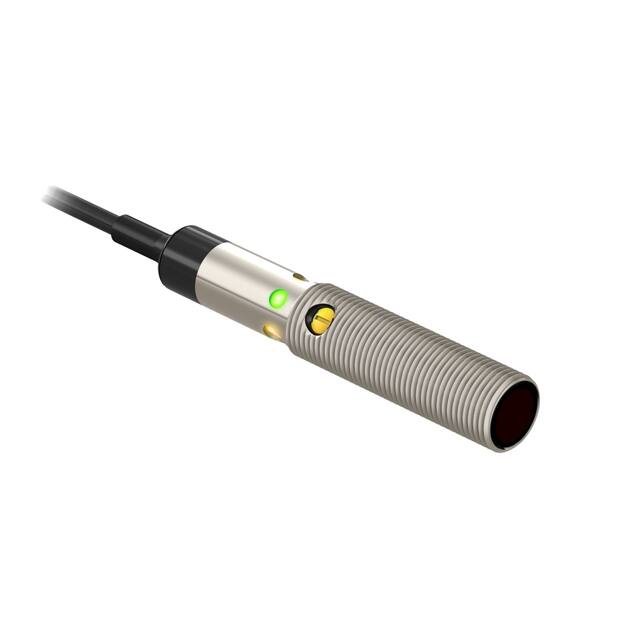

M12NLVSENSOR RETROREFLECTIVE 2.5M NPN |
1,024 |
|
Datasheet | M12 | Box | Active | Retroreflective | 8.20' (2.5m) | 10V ~ 30V | 500µs | NPN | Red (660nm) | Cable | NEMA 6 IEC IP67, IEC IP68 | 78.74" (2m) | Adjustable, 1-Turn Potentiometer | -20°C ~ 60°C |
|
|
M12NDSENSOR DIFFUSE RANGE 400MM NPN |
3,606 |
|
Datasheet | M12 | Box | Active | Diffuse | 15.748" (400mm) | 10V ~ 30V | 500µs | NPN | Red (660nm) | Cable | NEMA 6 IEC IP67, IEC IP68 | 78.74" (2m) | Adjustable, 1-Turn Potentiometer | -20°C ~ 60°C |
|
|
M12NLPSENSOR RETROREFLECTIVE 1.50M NPN |
1,852 |
|
Datasheet | M12 | Box | Active | Retroreflective | 4.9' (1.50m) | 10V ~ 30V | 500µs | NPN | Red (660nm) | Cable | NEMA 6 IEC IP67, IEC IP68 | 78.74" (2m) | Adjustable, 1-Turn Potentiometer | -20°C ~ 60°C |
