Photoelectric, Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensing Method | Sensing Distance | Voltage - Supply | Response Time | Output Configuration | Light Source | Connection Method | Ingress Protection | Cable Length | Adjustment Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PIAT16UPLASTIC FIBER, OPPOSED MODEC |
4,914 |
|
Datasheet | PIAT1 | Box | Active | Through-Beam | - | - | - | - | - | - | - | - | - | 70°C |
|

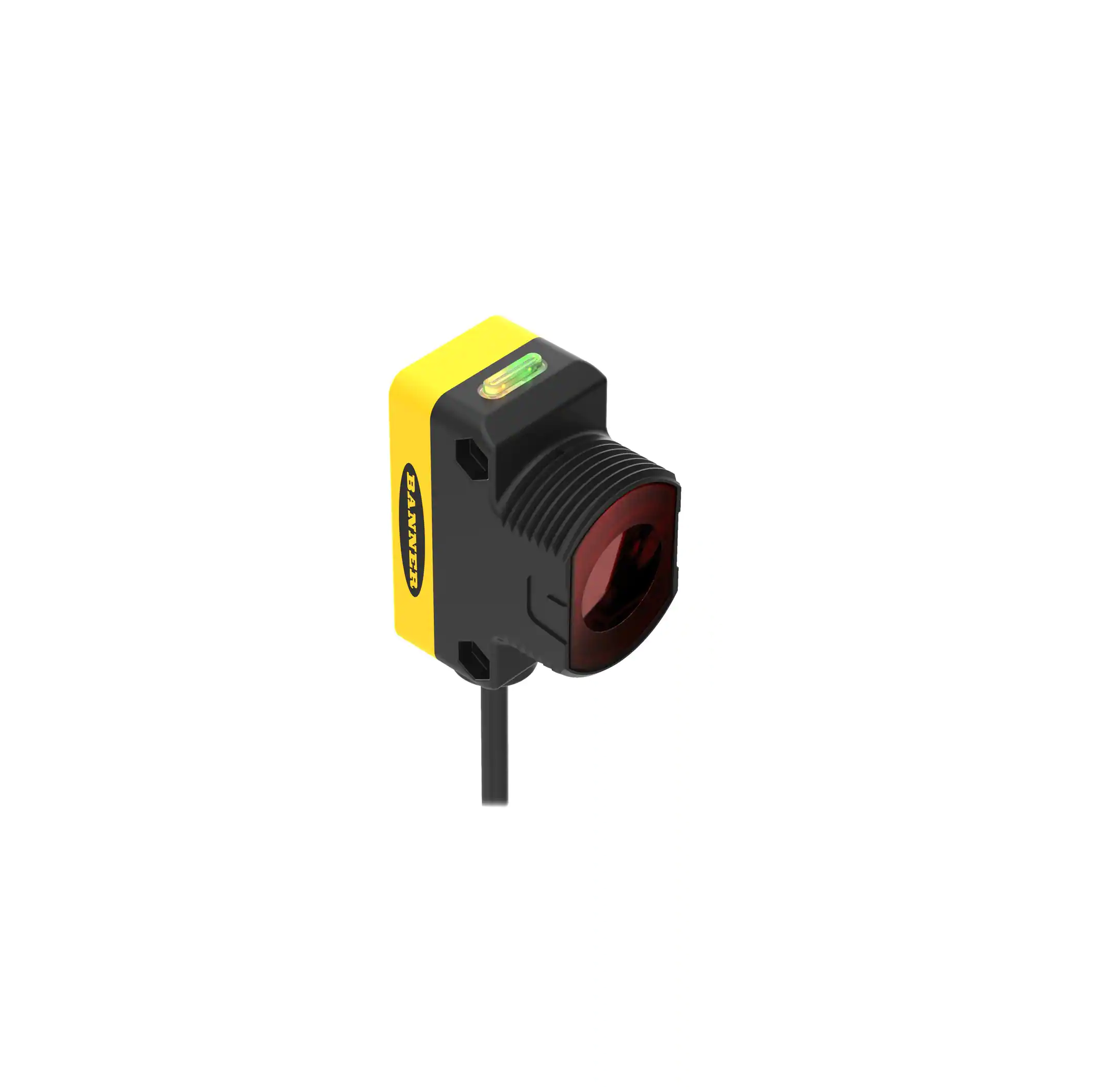

QS30E W/30RANGE: 60 M; INPUT: 10-30V DC |
2,078 |
|
- |
QS30 | Box | Active | Through-Beam | 196.85' (60m) | 10V ~ 30V | 5ms | - | Infrared (875nm) | Cable with Connector | NEMA 6P, IEC IP67 | 354.33" (9m) | - | -20°C ~ 70°C |
|
QS18VN6FF50PHOTO SEN FIXED 50MM NPN |
2,621 |
|
Datasheet | QS18 | Box | Active | Background Suppression | 1.969" (50mm) | 10V ~ 30V | 850µs | NPN - Dark-ON/Light-ON | LED | Cable | NEMA 6P, IEC IP67 | 78.74" (2m) | - | -20°C ~ 70°C |
|
M18SN6DEZ-BEAM M18 SERIES: DIFFUSER |
3,823 |
|
Datasheet | M18 | Box | Active | Diffuse | 3.937" (100mm) | 10V ~ 30V | 3ms | NPN | Infrared (880nm) | Cable with Connector | NEMA 6P, IP69K | 78.74" (2m) | - | -40°C ~ 70°C |
|
M12PRSENSOR RANGE 5M PNP |
4,657 |
|
Datasheet | M12 | Box | Active | - | 196.850" (5m) | 10V ~ 30V | 625µs | PNP | Red (660nm) | Cable | NEMA 6 IEC IP67, IEC IP68 | 78.74" (2m) | Adjustable, 1-Turn Potentiometer | -20°C ~ 60°C |
|
Q2XRPLPF-Q3SENSOR, RETRO, 3300MM, 10-30VDC |
2,020 |
|
Datasheet | Q2X | Box | Active | Retroreflective, Polarized | 129.921" (3.3m) | 10V ~ 30V | 600µs | PNP - Dark-ON | Red (645nm) | Connector, M8 | IP67 | - | Adjustable, Potentiometer | -25°C ~ 50°C |
|
Q2XRBLPF-Q5SENSOR, RETRO, 3300MM, 10-30VDC |
3,026 |
|
Datasheet | Q2X | Box | Active | Retroreflective, Polarized | 129.921" (3.3m) | 10V ~ 30V | 600µs | NPN/PNP - Dark-ON | Red (645nm) | Connector, M12 | IP67 | - | Adjustable, Potentiometer | -25°C ~ 50°C |
|
|
Q2XRBLPF-QSENSOR, RETRO, 3300MM, 10-30VDC |
4,699 |
|
Datasheet | Q2X | Box | Active | Retroreflective, Polarized | 129.921" (3.3m) | 10V ~ 30V | 600µs | NPN/PNP - Dark-ON | Red (645nm) | Connector, M8 | IP67 | - | Adjustable, Potentiometer | -25°C ~ 50°C |
|
|
Q2XABLPF-QSENSOR, RETRO, 3300MM, 10-30VDC |
4,031 |
|
Datasheet | Q2X | Box | Active | Retroreflective, Polarized | 129.921" (3.3m) | 10V ~ 30V | 600µs | NPN/PNP - Light-ON | Red (645nm) | Connector, M8 | IP67 | - | Adjustable, Potentiometer | -25°C ~ 50°C |
|
|
Q2XABLPF-Q5SENSOR, RETRO, 3300MM, 10-30VDC |
2,692 |
|
Datasheet | Q2X | Box | Active | Retroreflective, Polarized | 129.921" (3.3m) | 10V ~ 30V | 600µs | NPN/PNP - Light-ON | Red (645nm) | Connector, M12 | IP67 | - | Adjustable, Potentiometer | -25°C ~ 50°C |
