Photoelectric, Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensing Method | Sensing Distance | Voltage - Supply | Response Time | Output Configuration | Light Source | Connection Method | Ingress Protection | Cable Length | Adjustment Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BGL001CSERIES=A, DIMENSION=10 X 50 X 68 |
3,888 |
|
Datasheet | A | Bag | Active | Through-Beam | - | 10V ~ 30V | - | PNP-NC/NO | Red (640nm) | Connector, M8 | IP67 | - | Adjustable, 270° Turn Potentiometer | -10°C ~ 60°C |
|
BGL001TSERIES=A, DIMENSION=10 X 70 X 88 |
3,285 |
|
Datasheet | A | Bag | Active | Through-Beam | - | 10V ~ 30V | - | PNP-NC/NO | Infrared (880nm) | Connector, M8 | IP67 | - | Adjustable, 270° Turn Potentiometer | -10°C ~ 60°C |
|
BKT0001SERIES=67M, DIMENSION=32 X 64 X |
4,701 |
|
Datasheet | 67M | Bag | Active | Diffuse | 0.236" ~ 0.472" (6mm ~ 12mm) | 10V ~ 30V | - | NPN/PNP-NC/NO | Blue (465nm), Green (520nm), Red (630nm) | Connector, M12 | IP67 | - | Adjustable | -10°C ~ 55°C |
|
BGL0010SERIES=A, DIMENSION=10 X 25 X 54 |
1,944 |
|
Datasheet | A | Bag | Active | Through-Beam | - | 10V ~ 30V | - | PNP-NC/NO | Red LED | Connector, M8 | IP67 | - | Adjustable, 270° Turn Potentiometer | -10°C ~ 60°C |
|
BGL000JSERIES=A, DIMENSION=10 X 200 X 1 |
1,387 |
|
Datasheet | A | Bag | Active | Through-Beam | - | 10V ~ 30V | - | PNP-NC/NO | Red LED | Connector, M8 | IP67 | - | Adjustable, 270° Turn Potentiometer | -10°C ~ 60°C |
|
BOS01K3SERIES=64K, DIMENSION=25 X 69.7 |
2,718 |
|
Datasheet | 64K | Bag | Active | Retroreflective | 32.81' (10m) | 24 ~ 240VAC, 24 ~ 60VDC | - | NC/NO | Red (660nm) | Terminal | IP67 | - | Adjustable, 240° Turn Potentiometer | -25°C ~ 55°C |
|
BGL0005SERIES=A, DIMENSION=10 X 30 X 54 |
2,787 |
|
Datasheet | A | Bag | Active | Through-Beam | - | 10V ~ 30V | - | PNP-NC/NO | Infrared (880nm) | Connector, M8 | IP67 | - | Adjustable, 270° Turn Potentiometer | -10°C ~ 60°C |
|
BOS01K1SERIES=64K, DIMENSION=25 X 69.7 |
3,741 |
|
Datasheet | 64K | Bag | Active | Diffuse, Background Suppression | 78.740" (2m) | 24 ~ 240VAC, 24 ~ 60VDC | - | NC/NO | Infrared (880nm) | Terminal | IP67 | - | Adjustable, 240° Turn Potentiometer | -25°C ~ 55°C |
|
BOS01L8SERIES=6K, DIMENSION=12 X 41.5 X |
4,857 |
|
Datasheet | 6K | Bag | Active | Retroreflective | 78.740" (2m) | 10V ~ 30V | - | PNP-NC/NO | Red (660nm) | Connector, M8 | IP67, IP69K | - | Adjustable | -20°C ~ 60°C |
|

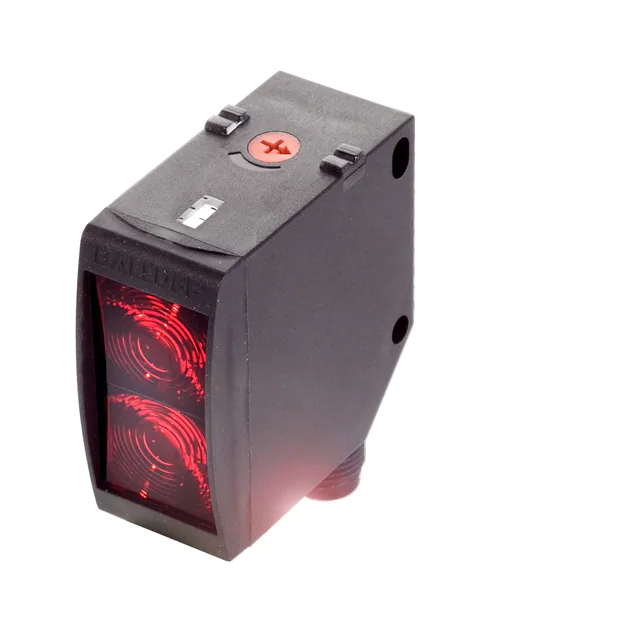

BOS0178SERIES=23K, DIMENSION=23 X 51 X |
1,512 |
|
Datasheet | 23K | Bag | Active | Diffuse, Background Suppression | 31.496" (800mm) | 10V ~ 30V | - | PNP-NC/NO | Red (640nm) | Connector, M12 | IP6x, IPx9K | - | Adjustable | -20°C ~ 60°C |
