Photoelectric, Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensing Method | Sensing Distance | Voltage - Supply | Response Time | Output Configuration | Light Source | Connection Method | Ingress Protection | Cable Length | Adjustment Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BGL0008SERIES=A, DIMENSION=10 X 140 X 9 |
3,228 |
|
Datasheet | A | Bag | Active | Through-Beam | - | 10V ~ 30V | - | NPN-NC/NO | Red LED | Connector, M8 | IP67 | - | Adjustable, 270° Turn Potentiometer | -10°C ~ 60°C |
|
BOS026RSERIES=21M, DIMENSION=15 X 51 X |
1,900 |
|
Datasheet | 21M | Bag | Active | Diffuse, Through-Beam | 0" ~ 393.701" (0m ~ 10m) | 10V ~ 30V | - | Push-Pull, NPN/PNP | Red (633nm) | Connector, M12 | IP67 | - | Adjustable, Potentiometer | -5°C ~ 55°C |
|
BOS01W0SERIES=M06M, DIMENSION= 6 X 45 M |
3,129 |
|
Datasheet | M06M | Bag | Active | Diffuse | 1.969" (50mm) | 10V ~ 30V | - | PNP-NO | Red LED | Cable | IP65 | 78.74" (2m) | - | -10°C ~ 55°C |
|
BOS00H8SERIES=18K, DIMENSION= 18 X 86.8 |
2,451 |
|
Datasheet | 18K | Bag | Active | Retroreflective | 472.441" (12m) | 10V ~ 30V | - | PNP-NO | Red (650nm) | Connector, M12 | IP67 | - | Adjustable, 270° Turn Potentiometer | -10°C ~ 50°C |
|

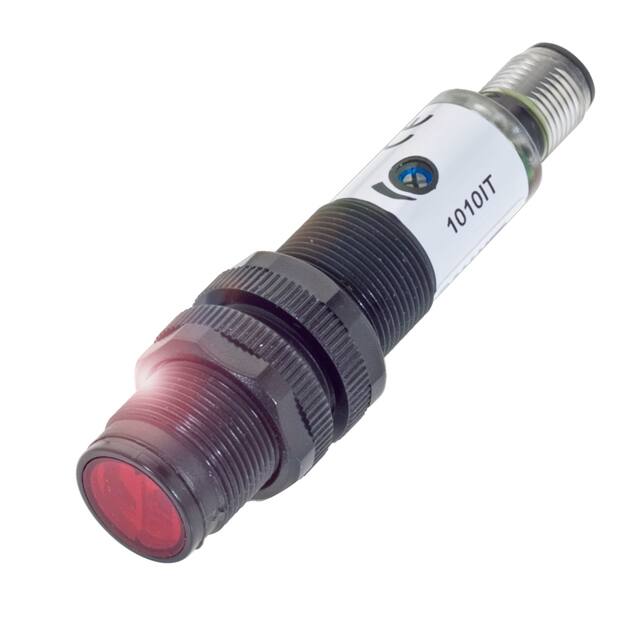

BOS00H7SERIES=18K, DIMENSION= 18 X 83.8 |
1,813 |
|
Datasheet | 18K | Bag | Active | Diffuse | 13.780" (350mm) | 10V ~ 30V | - | PNP-NO | Red (650nm) | Connector, M12 | IP67 | - | Adjustable, 270° Turn Potentiometer | -10°C ~ 50°C |
|

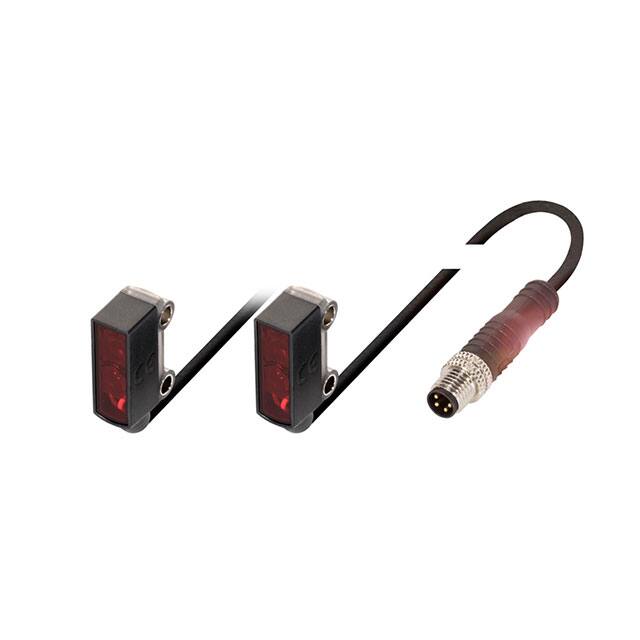

BOS0214SERIES=R020K, DIMENSION=7.7 X 26 |
2,842 |
|
Datasheet | R020K | Bag | Active | Through-Beam | 78.740" (2m) | 10V ~ 30V | - | PNP-NO | Red (660nm) | Cable with Connector, M8 | IP67 | 7.87" (200.00mm) | - | -25°C ~ 55°C |
|
BOS01K2SERIES=64K, DIMENSION=25 X 69.7 |
3,664 |
|
Datasheet | 64K | Bag | Active | Diffuse | 78.740" (2m) | 24 ~ 240VAC, 24 ~ 60VDC | - | NC/NO | Infrared (940nm) | Terminal | IP67 | - | Adjustable, 240° Turn Potentiometer | -25°C ~ 55°C |
|
BOS01LLSERIES=6K, DIMENSION=12 X 41.5 X |
1,921 |
|
Datasheet | 6K | Bag | Active | Diffuse | 31.496" (800mm) | 10V ~ 30V | - | PNP-NC/NO | Red (660nm) | Connector, M8 | IP67, IP69K | - | Adjustable | -20°C ~ 60°C |
|
BOS01C5SERIES=18M, DIMENSION= 18 X 75 M |
2,444 |
|
Datasheet | 18M | Bag | Active | Diffuse, Background Suppression | 5.906" (150mm) | 10V ~ 30V | - | PNP-NO | Red (660nm) | Connector, M12 | IP67 | - | Adjustable, Potentiometer | -5°C ~ 55°C |
|
|
BOS002KSERIES=18M, DIMENSION= 18 X 75 M |
4,392 |
|
Datasheet | 18M | Bag | Active | Diffuse, Background Suppression | 5.906" (150mm) | 10V ~ 30V | - | PNP-NO | Red (660nm) | Connector, M12 | IP67 | - | Adjustable, Potentiometer | -5°C ~ 55°C |
