Photoelectric, Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensing Method | Sensing Distance | Voltage - Supply | Response Time | Output Configuration | Light Source | Connection Method | Ingress Protection | Cable Length | Adjustment Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OBG5000-R100-2EP-IO-0.3M-V1PHOTOELECTRIC (AUTOMATION) |
3,829 |
|
Datasheet | R100 | Box | Active | Retroreflective | 0" ~ 137.795" (0m ~ 3.5m) | 10V ~ 30V | 1ms | Push-Pull, NPN/PNP - Dark-ON/Light-ON | Red LED | Connector | IP69K | - | Adjustable | -20°C ~ 60°C |
|
|
MLV41-LL-IR/92/136PHOTOELECTRIC (AUTOMATION) |
1,631 |
|
Datasheet | - | Box | Active | Fiber Optic | 0" ~ 6.299" (0mm ~ 160mm) | 10V ~ 30V | 500µs | Push-Pull - Dark-ON/Light-ON | Infrared (880nm) | Connector, M12 | IP67 | - | Adjustable | -20°C ~ 60°C |
|
VT18-8-400-M/40A/118/128DIFFUSED PHOTO SEN 0-400MM |
4,233 |
|
Datasheet | - | Box | Active | Diffuse | 0.000" ~ 15.748" (0mm ~ 400mm) | 10V ~ 30V | 1ms | Light-On/Dark-On | Red LED | Connector, M12 | IP67 | - | Adjustable | -25°C ~ 70°C |
|
RL28-8-H-2000-IR/105/110 USPHOTO SEN 20-2000MM BACK SUPPRES |
4,768 |
|
Datasheet | - | Box | Active | Diffuse | 0.787" ~ 78.740" (20mm ~ 2m) | 10V ~ 30V | 2ms | Light-On/Dark-On | Infrared (880nm) | Connector, M12 | IP67 | - | Adjustable | -40°C ~ 60°C |
|
MD17/115THRU BEAM EMITTER 0-15M |
3,186 |
|
Datasheet | - | Box | Active | Through-Beam | 0" ~ 590.551" (0m ~ 15m) | 10V ~ 30V | 3ms | Light-On/Dark-On | Infrared (950nm) | Cable | IP67 | 78.74" (2m) | - | -20°C ~ 55°C |
|
MD17/73THRU BEAM EMITTER 0-15M |
3,184 |
|
Datasheet | - | Box | Active | Through-Beam | 0" ~ 590.551" (0m ~ 15m) | 10V ~ 30V | 3ms | Light-On/Dark-On | Infrared (950nm) | Connector, M12 | IP67 | - | - | -20°C ~ 55°C |
|
MV17/115/136THRU BEAM RECEIVER |
2,695 |
|
Datasheet | - | Box | Active | Through-Beam | 0.000" ~ 0.591" (0mm ~ 15mm) | 10V ~ 30V | 3ms | Light-On/Dark-On | Infrared (950nm) | Cable | IP67 | 78.74" (2m) | - | -20°C ~ 55°C |
|
|
ML17-8-450/115/136DIFFUSED PHOTO SEN 10-450MM |
1,129 |
|
Datasheet | - | Box | Active | Diffuse | 0.394" ~ 17.717" (10mm ~ 450mm) | 10V ~ 30V | 1ms | Light-On/Dark-On | Infrared (950nm) | Cable | IP67 | 78.74" (2m) | Adjustable | -20°C ~ 55°C |
|
ML17-8-450/73/136PHT DIFUSED SEN 10-450MM |
3,353 |
|
Datasheet | - | Box | Active | Diffuse | 0.394" ~ 17.717" (10mm ~ 450mm) | 10V ~ 30V | 1ms | Light-On/Dark-On | Infrared (950nm) | Connector, M12 | IP67 | - | Adjustable | -20°C ~ 55°C |
|

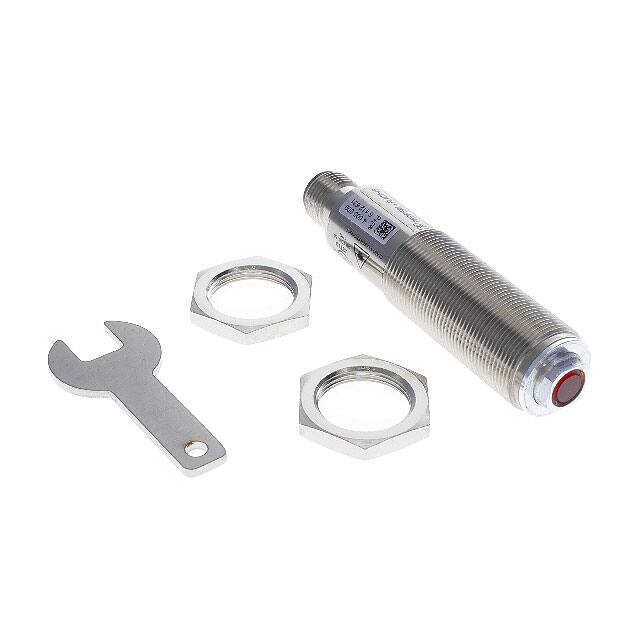

VS18-M-LAS/76A/118THRU BEAM EMITTER 0-60M |
3,781 |
|
Datasheet | - | Box | Active | Through-Beam | 0.000" ~ 2.362" (0mm ~ 60mm) | 10V ~ 30V | 100µs | PNP - Open Collector, Light-ON\Dark-ON | Red Laser Diode (655nm) | Connector, M12 | IP67 | - | Adjustable | -25°C ~ 55°C |
