Photoelectric, Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensing Method | Sensing Distance | Voltage - Supply | Response Time | Output Configuration | Light Source | Connection Method | Ingress Protection | Cable Length | Adjustment Type | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

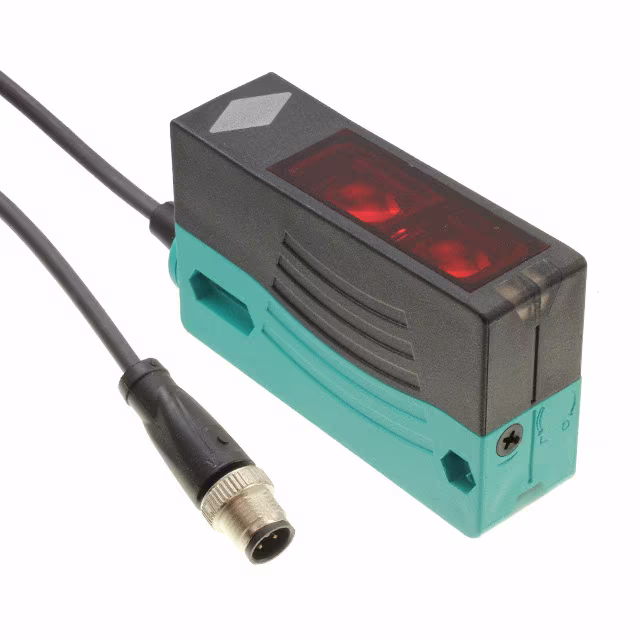

LV28-F1-3057/35/47/115BTHRU BEAM RECEIVER |
4,007 |
|
Datasheet | - | Box | Active | Through-Beam | 0.000" ~ 2559.055" (0m ~ 65m) | 10V ~ 30V | 20ms | PNP - Open Collector, Light-ON\Dark-ON | Red LED | Cable with Connector | IP67 | 9.06" (230.00mm) | Adjustable | -40°C ~ 60°C |
|

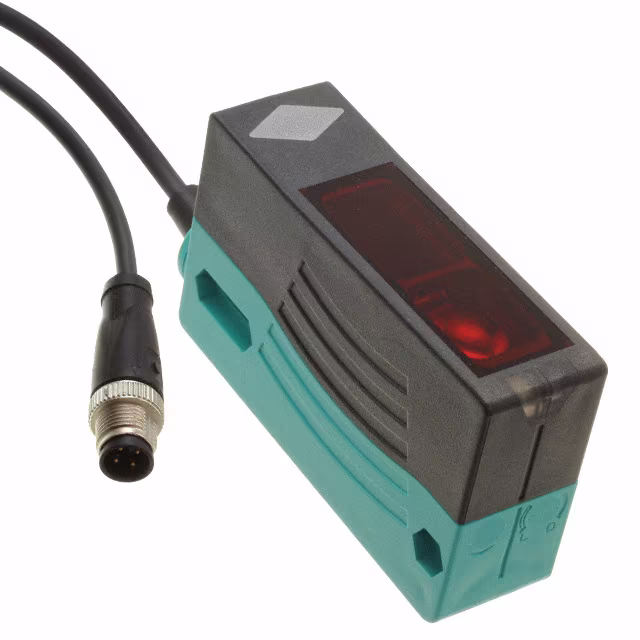

LD28-F1-3057/35/76A/115BTHRU BEAM EMITTER 65M |
4,100 |
|
Datasheet | - | Box | Active | Through-Beam | 0.000" ~ 2559.055" (0m ~ 65m) | 10V ~ 30V | 20ms | PNP - Open Collector, Light-ON\Dark-ON | Red LED | Cable with Connector | IP67 | 9.06" (230.00mm) | Adjustable | -40°C ~ 60°C |
|
RL28-8-H-700-IR/49/105PHOTO SEN 20-700MM BACK SUPPRESS |
1,975 |
|
Datasheet | - | Box | Active | Diffuse | 0.787" ~ 27.559" (20mm ~ 700mm) | 10V ~ 30V | 2ms | NPN/PNP - Open Collector, Light-ON\Dark-ON | Infrared (880nm) | Connector, M12 | IP67 | - | Adjustable | -40°C ~ 60°C |
|
GLV18-55/73/120PHOTOELECTRIC (AUTOMATION) |
2,471 |
|
Datasheet | - | Box | Active | Retroreflective | 0" ~ 157.480" (0m ~ 4m) | 10V ~ 30V | 1ms | Dark-ON/Light-ON | Red (640nm) | Connector, M12 | IP67 | - | Fixed | -25°C ~ 60°C |
|
|
OBT50-R2-E2-PPHOTOELECTRIC (AUTOMATION) |
2,293 |
|
Datasheet | - | Box | Active | Triangulation | 0.118" ~ 1.969" (3mm ~ 50mm) | 10V ~ 30V | 600µs | PNP - Light-ON | Red (630nm) | Cable | IP67 | 78.74" (2m) | Fixed | -25°C ~ 60°C |
|
|
ML17-8-H-50-RT/115B/136PHOTOELECTRIC (AUTOMATION) |
2,919 |
|
Datasheet | - | Box | Active | Background Suppression | 0.394" ~ 1.969" (10mm ~ 50mm) | 10V ~ 30V | 1ms | Dark-ON/Light-ON | Red (640nm) | Cable with Connector, M12 | IP67 | 5.906" (150.00mm) | Fixed | -20°C ~ 55°C |
|
|
OBT300-R103-2EP-IO-0.3M-V1PHOTOELECTRIC (AUTOMATION) |
2,822 |
|
Datasheet | - | Box | Active | Triangulation | 0.197" ~ 11.811" (5mm ~ 300mm) | 10V ~ 30V | 1ms | NPN/PNP - Dark-ON/Light-ON - NC/NO | Red LED | Cable with Connector, M12 | IP67, IP69, IP69K | 11.81" (300.00mm) | Adjustable | -40°C ~ 60°C |
|
|
ML100-8-HGU-100-RT/102/115/162PHOTOELECTRIC (AUTOMATION) |
3,073 |
|
Datasheet | - | Box | Active | Diffuse | 0.394" ~ 3.937" (10mm ~ 100mm) | 10V ~ 30V | 1ms | Light-On | Red LED | Cable | IP67 | 78.74" (2m) | Adjustable | -30°C ~ 60°C |
|

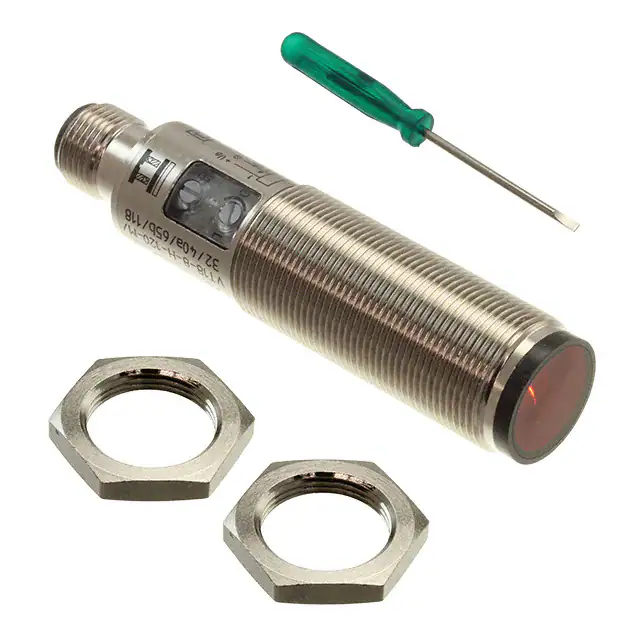

VT18-8-H-120-M/32/40A/65B/118PHOTO SEN 20-120MM BACK SUPPRESS |
2,262 |
|
Datasheet | - | Box | Obsolete | Diffuse | 0.787" ~ 4.724" (20mm ~ 120mm) | 10V ~ 30V | 1ms | Light-On/Dark-On | Red LED | Connector, M12 | IP67 | - | Adjustable | -25°C ~ 70°C |
|
|
OBG5000-R100-2EP-IOPHOTOELECTRIC (AUTOMATION) |
4,103 |
|
Datasheet | - | Box | Active | Retroreflective | 0" ~ 137.795" (0m ~ 3.5m), 0" ~ 196.850" (0m ~ 5m) | 10V ~ 30V | 1ms | Push-Pull | Red LED | Cable | IP67, IP69, IP69K | 78.74" (2m) | Adjustable | -20°C ~ 60°C |
