Encoders - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
01036-519ROTARY ENCODER OPTICAL 1800PPR |
1,275 |
|
Datasheet | H38 | Box | Active | Optical | Quadrature with Index (Incremental) | 1800 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Terminal Block, Straight - Push In | 200M |
|
|
01059-009ROTARY ENCODER OPTICAL 2048PPR |
4,049 |
|
Datasheet | H38 | Box | Active | Optical | Quadrature with Index (Incremental) | 2048 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Terminal Block, Straight - Push In | 200M |
|
01064-044ROTARY ENCODER OPTICAL 100PPR |
3,421 |
|
Datasheet | HS35 | Box | Active | Optical | Quadrature with Index (Incremental) | 100 | 5V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Connector | 7.5B |
|
01062-049ROTARY ENCODER OPTICAL 1024PPR |
3,960 |
|
Datasheet | H25 | Bulk | Active | Optical | Quadrature (Incremental) | 1024 | 9V | Shaft | No | No | Chassis Mount | User Selectable | Cable | 10B |
|
01142-008LINEAR CABLE TRANSDUCER INCREMEN |
1,791 |
|
Datasheet | CD120 | Box | Not For New Designs | Optical | Quadrature with Index (Incremental) | - | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | - |
|
|
01059-034ROTARY ENCODER ABSOLUTE 4096PPR |
2,354 |
|
Datasheet | H38 | Box | Active | Absolute | Gray Code (Absolute) | 4096 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Terminal Block, Straight - Push In | - |
|

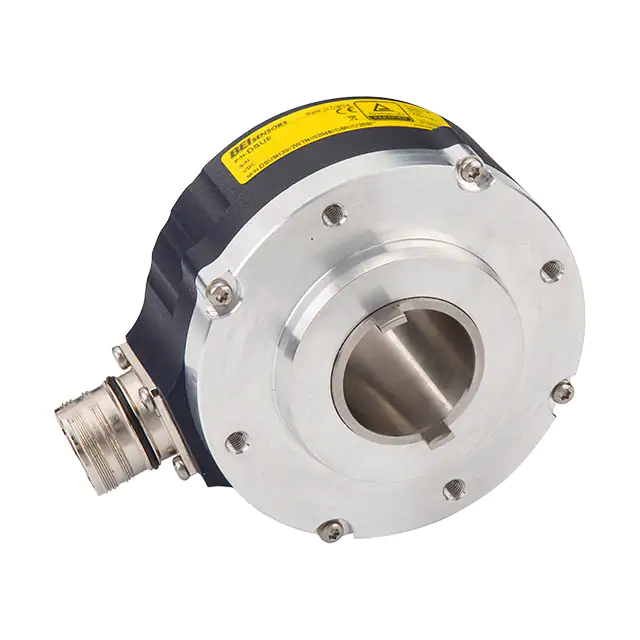

DSU930-1024-001ROTARY ENCODR INCREMENT 1024PPR |
1,398 |
|
Datasheet | DSU9H | Box | Active | Incremental | Voltage | 1024 | 11V ~ 30V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 29.7B |
|
|
DSU930-1024-013ROTARY ENCODR INCREMENT 1024PPR |
2,929 |
|
Datasheet | DSU9H | Box | Active | Incremental | Voltage | 1024 | 11V ~ 30V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 29.7B |
|
|
DSU930-1024-018ROTARY ENCODR INCREMENT 1024PPR |
1,453 |
|
Datasheet | DSU9H | Box | Active | Incremental | Voltage | 1024 | 5V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 29.7B |
|
|
DSU930-2048-009ROTARY ENCODR INCREMENT 2048PPR |
1,476 |
|
Datasheet | DSU9H | Box | Active | Incremental | Voltage | 2048 | 11V ~ 30V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 29.7B |
