Encoders - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
01079-067ROTARY ENCODER OPTICAL 10PPR |
3,922 |
|
Datasheet | H25 | Bulk | Active | Optical | Binary (Absolute) | 10 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|
|
01002-10650ROTARY ENCODER OPTICAL 500PPR |
1,873 |
|
Datasheet | H25 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 500 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 10B |
|

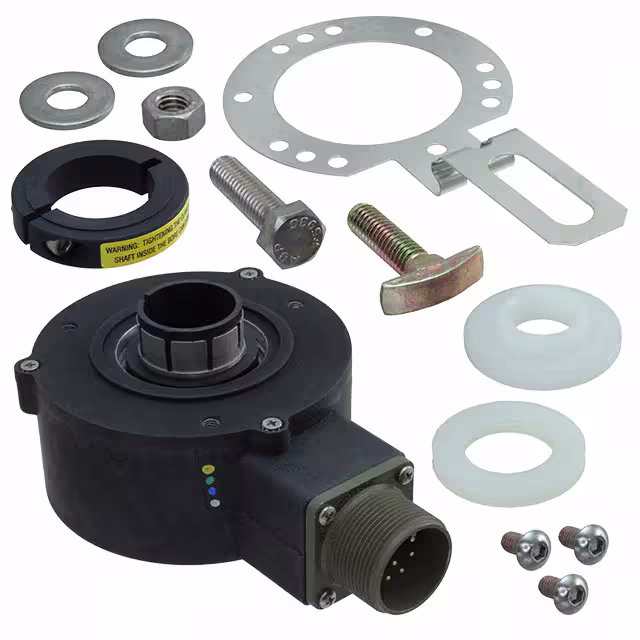

01070-916ROTARY ENCODER OPTICAL 1800PPR |
3,065 |
|
Datasheet | HS35 | Bulk | Not For New Designs | Optical | Quadrature with Index (Incremental) | 1800 | 5V ~ 28V | Hole for Shaft | No | No | Chassis Mount, Motors | User Selectable | Connector | 7.5B |
|
|
01005-1208ROTARY ENCODER OPTICAL 10000PPR |
3,849 |
|
Datasheet | H25 | Box | Active | Optical | Quadrature with Index (Incremental) | 10000 | 5V ~ 28V | Shaft | No | No | Servo Mount | User Selectable | Connector | 200M |
|

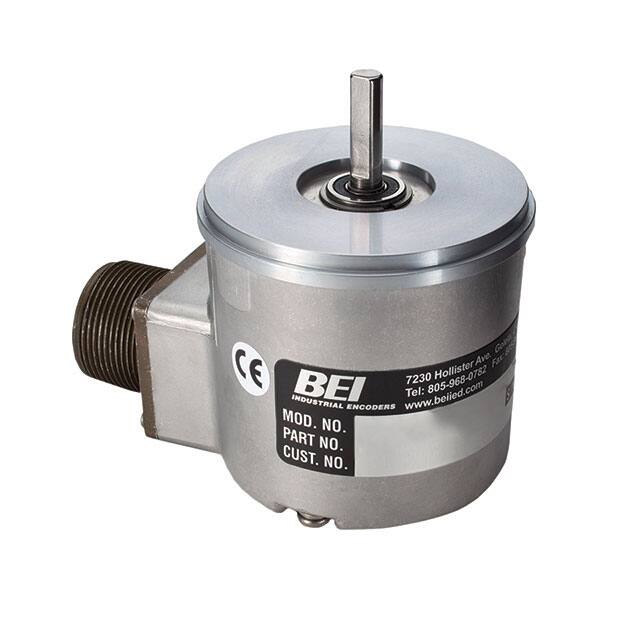

L25G-F12-SB-2500-ABZC-28V/V-SM18ROTARY ENCODER OPTICAL 2500PPR |
2,622 |
|
Datasheet | L25 | Bulk | Active | Optical | Quadrature with Index (Incremental) | 2500 | 5V ~ 28V | Shaft | No | No | Servo Mount | - | Connector | 1B |
|
01076-029ROTARY ENCODER OPTICAL 500PPR |
4,564 |
|
Datasheet | HS25 | Box | Active | Optical | Quadrature (Incremental) | 500 | 5V ~ 15V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Connector | 7.5B |
|
|
01082-050ROTARY ENCODER ABSOLUTE 8192PPR |
3,068 |
|
Datasheet | H25 | Box | Active | Absolute | Gray Code (Absolute) | 8192 | - | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|
|
01082-004ROTARY ENCODER ABSOLUTE 8192PPR |
4,484 |
|
Datasheet | H25 | Box | Active | Absolute | Gray Code (Absolute) | 8192 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Connector | 200M |
|
01059-018ROTARY ENCODER OPTICAL PROG |
3,002 |
|
Datasheet | H38 | Bulk | Active | Optical | Pulse | Programmable | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Terminal Block, Straight - Push In | - |
|
01036-527ROTARY ENCODER OPTICAL 500PPR |
2,633 |
|
Datasheet | H38 | Box | Not For New Designs | Optical | Quadrature with Index (Incremental) | 500 | 5V ~ 28V | Shaft | No | No | Chassis Mount | User Selectable | Terminal Block, Straight - Push In | 200M |
