High Frequency (RF) Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9002-05-02RELAY RF SPST-NC 500MA 5V |
1,711 |
|
Datasheet | 9000 | Tube | Obsolete | Non Latching | 14.3 mA | 5VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.35 ms | 0.1 ms | - | Through Hole | PC Pin | -20°C ~ 85°C |
|
|
9402-05-10RELAY RF SPST-NO 500MA 5V |
2,391 |
|
Datasheet | 9400 | Tube | Obsolete | Non Latching | 25 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.2 ms | - | Surface Mount | Axial | -20°C ~ 85°C |
|
9402-12-30RELAY RF SPST-NO 500MA 12V |
1,821 |
|
Datasheet | 9400 | Tube | Obsolete | Non Latching | 14.5 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.4 ms | 0.2 ms | - | Through Hole | PC Pin | -20°C ~ 85°C |
|
|
9402-12-10RELAY RF SPST-NO 500MA 12V |
4,932 |
|
Datasheet | 9400 | Tube | Obsolete | Non Latching | 14.5 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.4 ms | 0.2 ms | - | Surface Mount | Axial | -20°C ~ 85°C |
|
|
9402-05-30RELAY RF SPST-NO 500MA 5V |
2,199 |
|
Datasheet | 9400 | Tube | Obsolete | Non Latching | 25 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.2 ms | - | Through Hole | PC Pin | -20°C ~ 85°C |
|
|
9903-05-00RELAY RF SPST-NO 250MA 5V |
3,200 |
|
Datasheet | 9900 | Tube | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|
|
9903-05-10RELAY RF SPST-NO 250MA 5V |
4,405 |
|
Datasheet | 9900 | Tube | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Axial | -20°C ~ 85°C |
|
|
9290-12-20RELAY RF SPST-NO 500MA 12V |
2,361 |
|
Datasheet | 9290 | Bulk | Obsolete | Non Latching | 20 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
|
9270-05-20TRRELAY RF SPST-NO 500MA 5V |
3,482 |
|
Datasheet | 9270 | Tape & Reel (TR) | Active | Non Latching | 50 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 2.5 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 125°C |
|

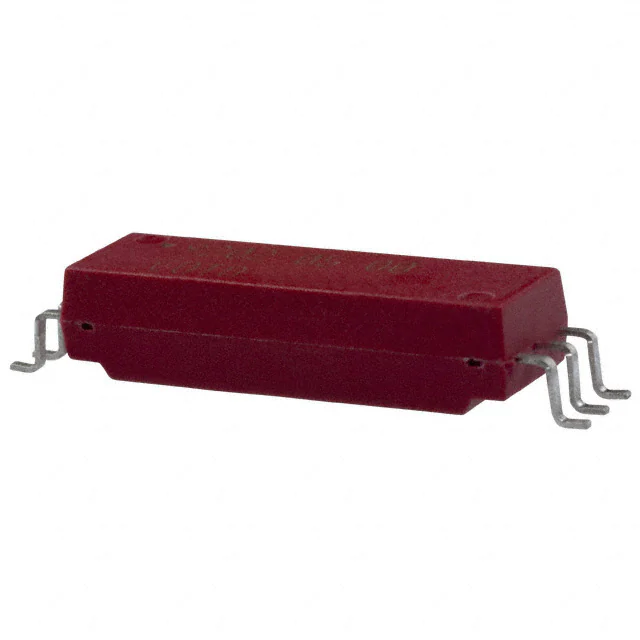

9202-12-00TRRELAY RF SPST-NO 500MA 12V |
1,718 |
|
Datasheet | 9200 | Tape & Reel (TR) | Active | Non Latching | 18.5 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | Sealed - Hermetically | Surface Mount | Gull Wing | -20°C ~ 85°C |
