High Frequency (RF) Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Coil Type | Coil Current | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Features | Mounting Type | Termination Style | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

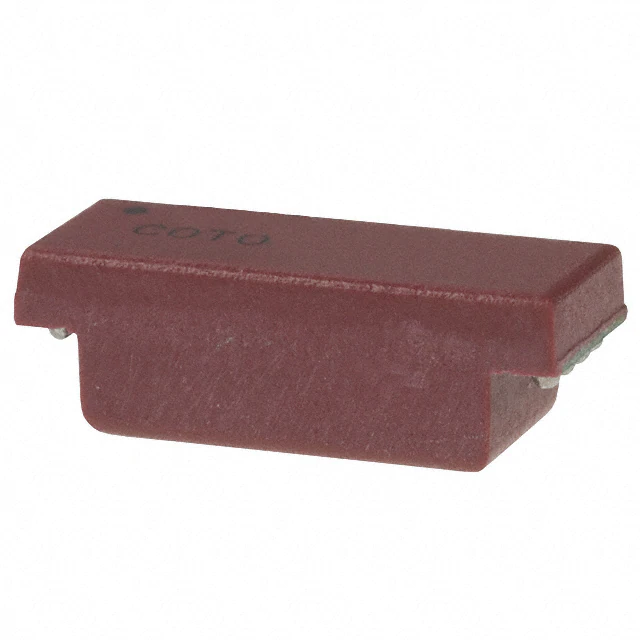

B10-03BRELAY RF SPST-NO 250MA 3.3V |
4,634 |
|
Datasheet | B10 | Tape & Reel (TR) | Obsolete | Non Latching | 60 mA | 3.3VDC | SPST-NO (1 Form A) | 250 mA | 125VAC, 125VDC - Max | 2.4 VDC | 0.4 VDC | 0.1 ms | 0.03 ms | - | Surface Mount | BGA | -20°C ~ 85°C |
|
2920-05-121RELAY RF SPST-NO 1A 5V |
1,834 |
|
Datasheet | 2900 | Tube | Not For New Designs | Non Latching | 66.7 mA | 5VDC | SPST-NO (1 Form A) | 1 A | 500VAC, 500VDC - Max | 3.8 VDC | 0.4 VDC | 1.5 ms | 1 ms | - | Through Hole | PC Pin | -20°C ~ 85°C |
|
|
2920-12-121RELAY RF SPST-NO 1A 12V |
1,454 |
|
Datasheet | 2900 | Tube | Not For New Designs | Non Latching | 48 mA | 12VDC | SPST-NO (1 Form A) | 1 A | 500VAC, 500VDC - Max | 9 VDC | 1 VDC | 1.5 ms | 1 ms | - | Through Hole | PC Pin | -20°C ~ 85°C |
|
B41-0002RELAY RF SPST-NO X 4 250MA 3.3V |
1,108 |
|
Datasheet | B41 | Tape & Reel (TR) | Obsolete | Non Latching | 60 mA | 3.3VDC | SPST-NO (1 Form A) x 4 | 250 mA | 125VAC, 125VDC - Max | 2.4 VDC | 0.4 VDC | 0.1 ms | 0.03 ms | - | Surface Mount | BGA | -20°C ~ 85°C |
|

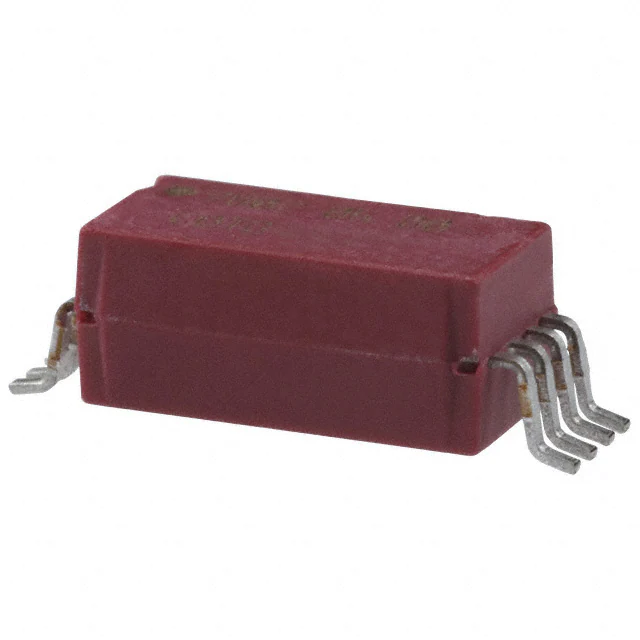

9802-05-00RELAY RF SPST-NO 250MA 5V |
4,198 |
|
Datasheet | 9800 | Bulk | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|

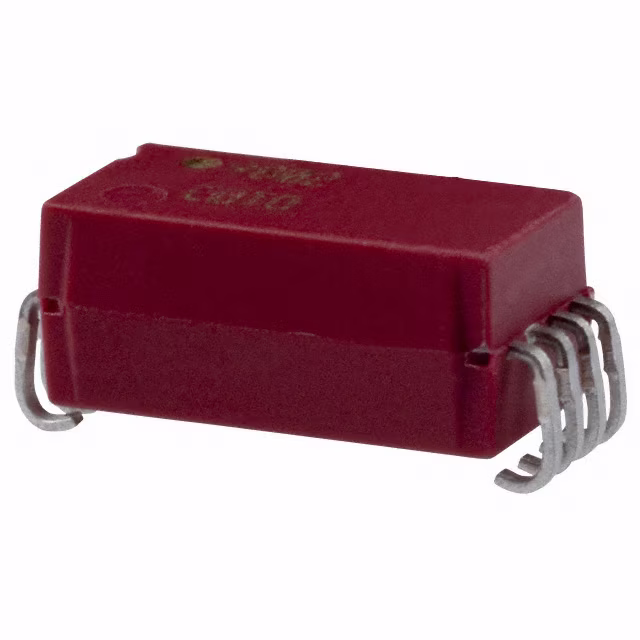

9802-05-20RELAY RF SPST-NO 250MA 5V |
4,136 |
|
Datasheet | 9800 | Tube | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
9290-12-00RELAY RF SPST-NO 500MA 12V |
3,086 |
|
Datasheet | 9290 | Bulk | Active | Non Latching | 20 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|

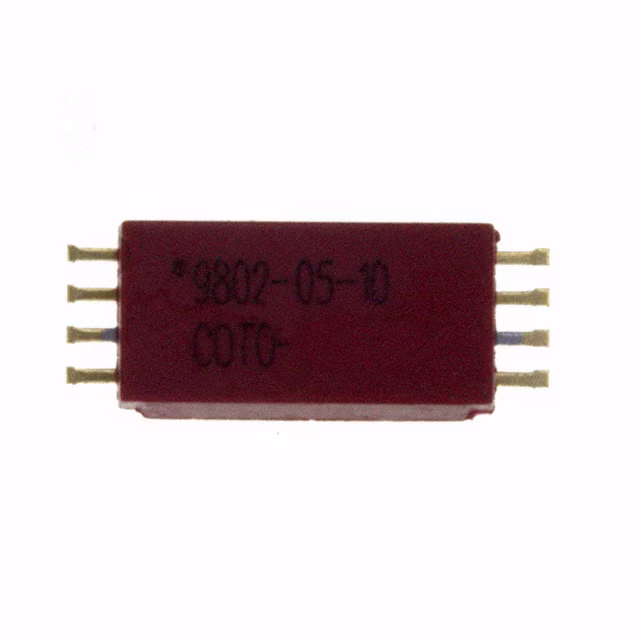

9802-05-10RELAY RF SPST-NO 250MA 5V |
2,021 |
|
Datasheet | 9800 | Tube | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Axial | -20°C ~ 85°C |
|
|
B10-05BRELAY RF SPST-NO 250MA 5V |
3,213 |
|
Datasheet | B10 | Tube | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 125VAC, 125VDC - Max | 3.8 VDC | 0.4 VDC | 0.1 ms | 0.03 ms | - | Surface Mount | BGA | -20°C ~ 85°C |
|

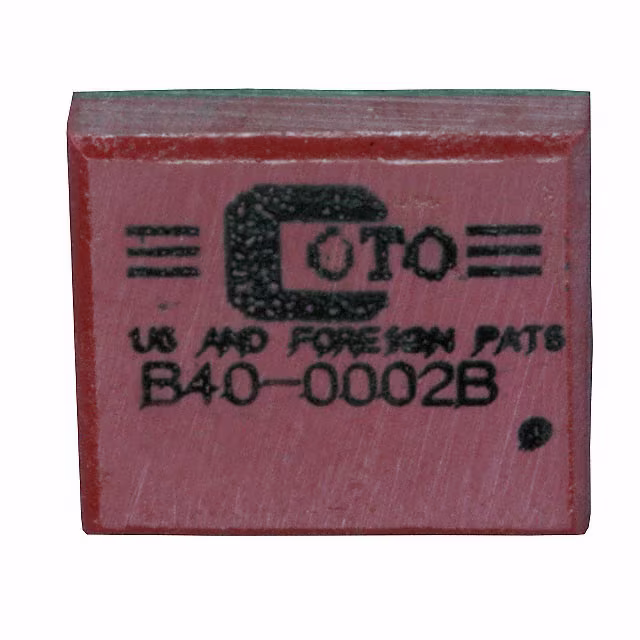

B40-0002BRELAY RF SPST-NO X 4 250MA 3.3V |
1,731 |
|
Datasheet | B40 | Tube | Obsolete | Non Latching | 60 mA | 3.3VDC | SPST-NO (1 Form A) x 4 | 250 mA | 125VAC, 125VDC - Max | 2.4 VDC | 0.4 VDC | 0.1 ms | 0.03 ms | - | Surface Mount | BGA | -20°C ~ 85°C |
