Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SL8802/04-11DN5-00CBL RIBN 4COND 0.093 SILVER 100' |
3,571 |
|
Datasheet | SL8800 | Spool | Active | Flat Twin Axial | 4 (2 Pair) | 0.093" (2.37mm) Between Pairs | 100.0' (30.48m) | 30 AWG | Solid | Shielded | Silver | 0.035" (0.89mm) | 0.215" (5.45mm) | Polyolefin (PO) | 150 V | - | - | - | UL E42769 | - |
.jpg)
|
3659/25 100CBL RIBN 25COND 0.05 BLACK 50' |
2,828 |
|
Datasheet | 3659 | Bulk | Active | Flat Cable, Round Jacket | 25 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 1.200" (30.48mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Zippable |
|
HF625/16-100MCBL RIBN 16COND 0.039 GRAY 164' |
3,991 |
|
Datasheet | HF625 | Bulk | Active | Flat Cable | 16 | 0.039" (1.00mm) | 164.0' (50.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.630" (16.00mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
3302/26 300SFCBL RIBN 26COND 0.05 MULTI 100' |
4,244 |
|
Datasheet | 3302 | Bulk | Active | Flat Cable | 26 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 1.300" (33.02mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Splice Free, Zippable |
|

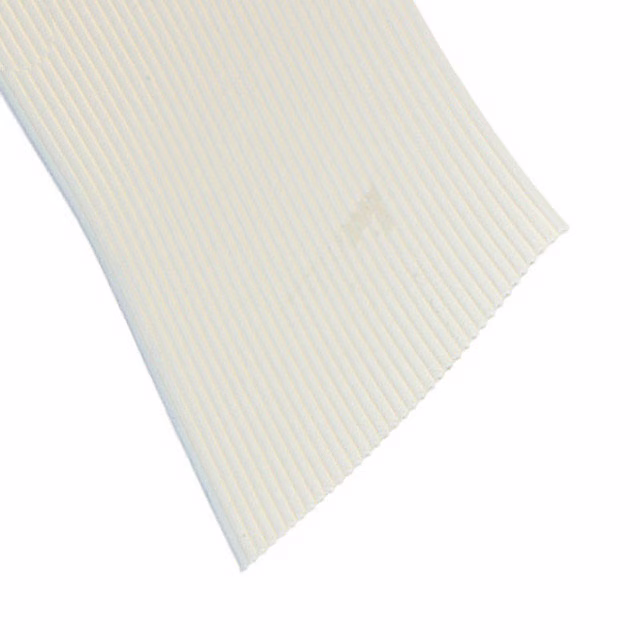

2010/36 100SFCBL RIBN 36COND 0.05 WHITE 100' |
3,497 |
|
Datasheet | 2010 | Spool | Obsolete | Flat Cable | 36 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | White | 0.035" (0.89mm) | 1.800" (45.72mm) | Polyolefin (PO) | 30 V | - | - | -20°C ~ 105°C | UL Style 20930 | Splice Free, Zippable |
|
SL8801/12-101A5-00CBL RIBN 8COND 0.093 SILVER 100' |
3,751 |
|
Datasheet | SL8800 | Bulk | Obsolete | Flat Twin Axial | 8 (4 Pair) | 0.093" (2.37mm) Between Pairs | 100.0' (30.48m) | 30 AWG | Solid | Shielded | Silver | 0.035" (0.89mm) | 0.627" (15.93mm) | Polyolefin (PO) | 150 V | - | - | - | UL E42769 | - |
|
HF319/40 (100')CBL RIBN 40COND 0.05 GRAY 10' |
3,263 |
|
Datasheet | HF319 | Bulk | Active | Flat Cable | 40 | 0.050" (1.27mm) | 10.0' (3.05m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 2.000" (50.80mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
.jpg)
|
3659/24 100SFCBL RIBN 24COND 0.05 BLACK 50' |
4,062 |
|
Datasheet | 3659 | Bulk | Active | Flat Cable, Round Jacket | 24 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 1.150" (29.21mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Splice Free, Zippable |
|
R9965/64 300SFCBL RIBN 64COND 0.05 GRAY 300' |
1,520 |
|
- |
R9965 | Bulk | Obsolete | Flat Cable | 64 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 3.200" (81.28mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E42769 | Splice Free, Zippable |
|
HF319/14 100CBL RIBN 14COND 0.05 GRAY 25' |
2,525 |
|
Datasheet | HF319 | Bulk | Active | Flat Cable | 14 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.700" (17.78mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
