Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
1700/50 100SFCBL RIBN 50COND TWIST PAIR 50' |
4,784 |
|
Datasheet | 1700 | Bulk | Active | Flat Twisted Pair | 50 (25 Pair Twisted) | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.080" (2.03mm) | 2.500" (63.50mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Splice Free |
|
HF365/44SFCBL RIBN 44COND 0.05 GRAY 50' |
4,724 |
|
Datasheet | HF365 | Box | Active | Flat Cable | 44 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 2.200" (55.88mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Splice Free, Zippable |
|
3759/40 100CBL RIBN 40COND 0.05 BLACK 50' |
4,269 |
|
Datasheet | 3759 | Bulk | Active | Flat Cable, Round Jacket | 40 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Black | - | 1.950" (49.53mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 20267 | Zippable |
|
3476/20 100CBL RIBN 20COND 0.05 GRAY 50' |
2,172 |
|
Datasheet | 3476 | Bulk | Obsolete | Flat Cable, Ground Plane | 20 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.047" (1.19mm) | 1.250" (31.75mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2682 | - |
|
2010/34 100SFCBL RIBN 34COND 0.05 WHITE 100' |
4,756 |
|
Datasheet | 2010 | Spool | Obsolete | Flat Cable | 34 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | White | 0.035" (0.89mm) | 1.700" (43.18mm) | Polyolefin (PO) | 30 V | - | - | -20°C ~ 105°C | UL Style 20930 | Splice Free, Zippable |
.jpg)
|
3302/50 300SFCBL RIBN 50COND 0.05 MULTI 50' |
4,971 |
|
Datasheet | 3302 | Bulk | Active | Flat Cable | 50 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 2.500" (63.50mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Splice Free, Zippable |
|
R9965/60 300SFCBL RIBN 60COND 0.05 GRAY 300' |
1,587 |
|
- |
R9965 | Bulk | Obsolete | Flat Cable | 60 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 3.000" (76.20mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E42769 | Splice Free, Zippable |
|
HF759/20SFCBL RIBN 20COND 0.05 GRAY 50' |
4,022 |
|
Datasheet | HF759 | Box | Active | Flat Cable, Round Jacket | 20 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | - | 0.950" (24.13mm) | Polyolefin (PO) | 150 V | - | - | -10°C ~ 75°C | UL Style 22170 | Splice Free, Zippable |
|

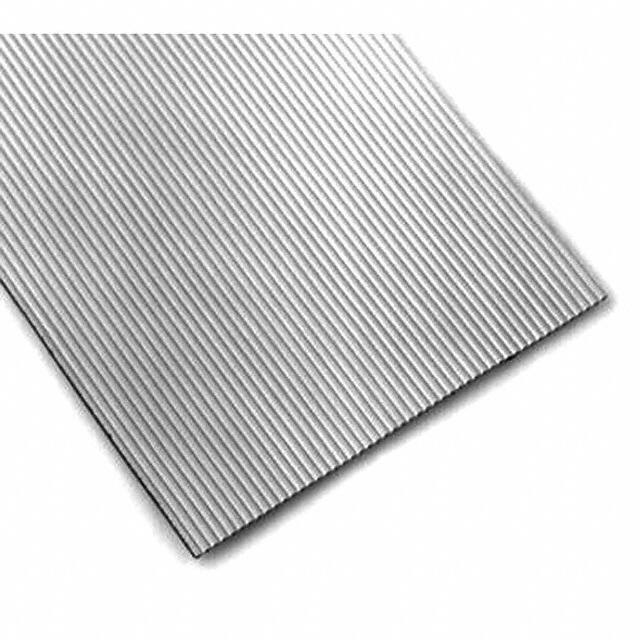

C3709/16 300CBL RIBN 16COND 0.05 GRAY 300' |
2,684 |
|
Datasheet | 3709 | Bulk | Obsolete | Flat Cable | 16 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | Solid | Unshielded | Gray | 0.033" (0.84mm) | 0.800" (20.32mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3849/96 100CBL RIBN 96COND 0.033 GRAY 25' |
1,372 |
|
Datasheet | 3849 | Bulk | Active | Flat Cable | 96 | 0.033" (0.85mm) | 25.0' (7.62m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Gray | 0.033" (0.84mm) | 3.197" (81.20mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
