Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HF659/26SFCBL RIBN 26COND 0.05 GRAY 275' |
1,925 |
|
Datasheet | HF659 | Spool | Active | Flat Cable, Round Jacket | 26 | 0.050" (1.27mm) | 275.0' (83.82m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | - | 1.250" (31.75mm) | Polyolefin (PO) | 150 V | - | - | -15°C ~ 75°C | UL Style 22170 | Splice Free, Zippable |
|

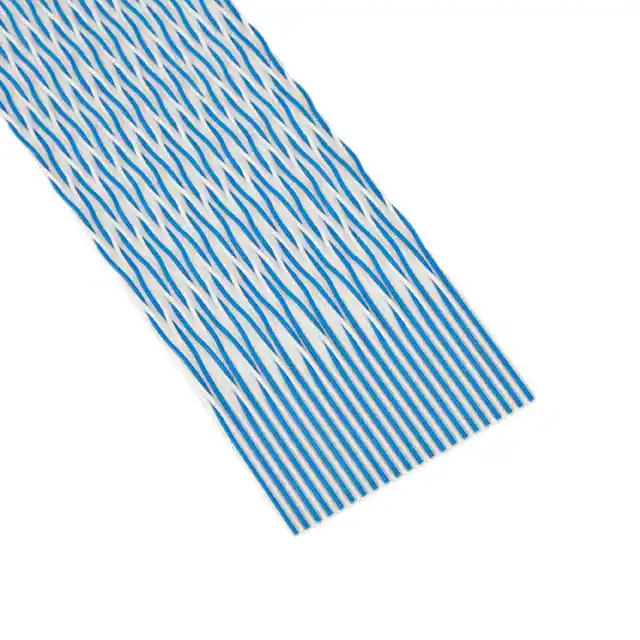

HF100/24TP 100CBL RIBN 24COND TWIST PAIR 100' |
600 |
|
Datasheet | HF100 | Spool | Active | Flat Twisted Pair | 24 (12 Pair Twisted) | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue, White | 0.070" (1.78mm) | 1.200" (30.48mm) | Polyolefin (PO) | 150 V | - | - | -40°C ~ 105°C | UL Style 21008 | - |
.jpg)
|
3659/40 100SFCBL RIBN 40COND 0.05 BLACK 100' |
1,100 |
|
Datasheet | 3659 | Spool | Active | Flat Cable, Round Jacket | 40 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 1.950" (49.53mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Splice Free, Zippable |
|
HF319/16 (300')CBL RIBN 16COND 0.05 GRAY 300' |
2,100 |
|
Datasheet | HF319 | Spool | Active | Flat Cable | 16 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.800" (20.32mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
.jpg)
|
3659/50 100SFCBL RIBN 50COND 0.05 BLACK 100' |
900 |
|
Datasheet | 3659 | Spool | Active | Flat Cable, Round Jacket | 50 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 2.450" (62.23mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Splice Free, Zippable |
|

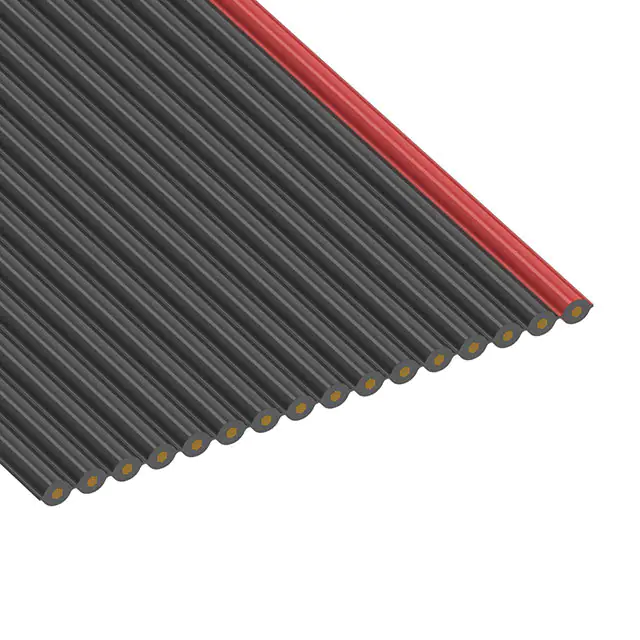

3319/16 100CBL RIBN 16COND 0.05 BLACK 100' |
697 |
|
Datasheet | 3319 | Spool | Active | Flat Cable | 16 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 0.800" (20.32mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
|
HF100/40TPCBL RIBN 40COND TWIST PAIR 100' |
200 |
|
Datasheet | HF100 | Spool | Active | Flat Twisted Pair | 40 (20 Pair Twisted) | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue, White | 0.070" (1.78mm) | 2.000" (50.80mm) | Polyolefin (PO) | 150 V | - | - | -40°C ~ 105°C | UL Style 21008 | - |
|
3517/26 100SFCBL RIBN 26COND 0.05 GRAY 100' |
5,700 |
|
Datasheet | 3517 | Spool | Active | Flat Cable, Flat Jacket | 26 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 1.430" (36.32mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
3517/34 100SFCBL RIBN 34COND 0.05 GRAY 100' |
600 |
|
Datasheet | 3517 | Spool | Active | Flat Cable, Flat Jacket | 34 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 1.830" (46.48mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
1785/40 100SFCBL RIBN 40COND TWIST PAIR 100' |
900 |
|
Datasheet | 1785 | Spool | Active | Flat Twisted Pair, Flat Jacket | 40 (20 Pair Twisted) | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | 0.120" (3.05mm) | 2.130" (54.10mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
