Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3659/14 300SFCBL RIBN 14COND 0.05 BLACK 300' |
1,200 |
|
Datasheet | 3659 | Spool | Active | Flat Cable, Round Jacket | 14 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 0.650" (16.51mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Splice Free, Zippable |
.jpg)
|

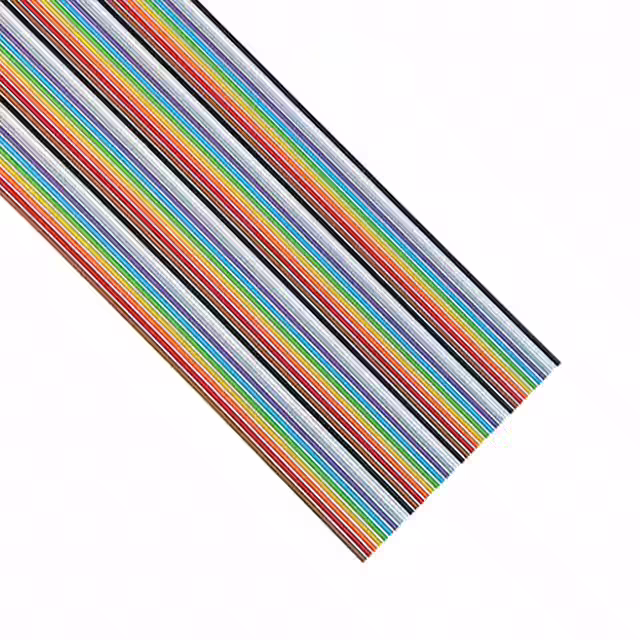

3302/40 300SFCBL RIBN 40COND 0.05 MULTI 300' |
600 |
|
Datasheet | 3302 | Spool | Active | Flat Cable | 40 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Splice Free, Zippable |
.jpg)
|

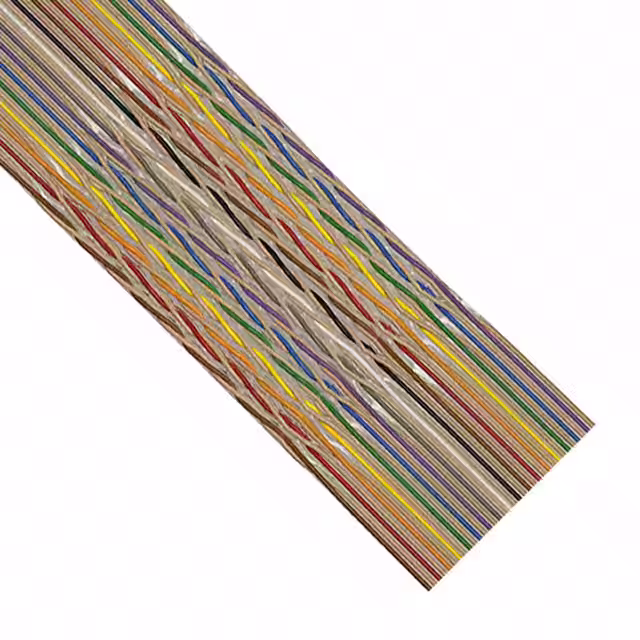

1700/34 100SFCBL RIBN 34COND TWIST PAIR 100' |
9,600 |
|
Datasheet | 1700 | Spool | Active | Flat Twisted Pair | 34 (17 Pair Twisted) | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.080" (2.03mm) | 1.700" (43.18mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Splice Free |
.jpg)
|
3659/37 300CBL RIBN 37COND 0.05 BLACK 300' |
600 |
|
Datasheet | 3659 | Spool | Active | Flat Cable, Round Jacket | 37 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 1.800" (45.72mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Zippable |
.jpg)
|

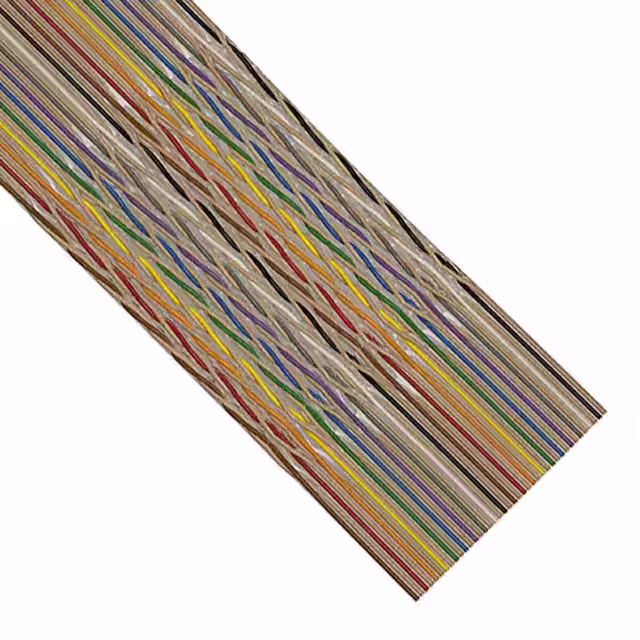

1700/40 100SFCBL RIBN 40COND TWIST PAIR 100' |
800 |
|
Datasheet | 1700 | Spool | Active | Flat Twisted Pair | 40 (20 Pair Twisted) | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.080" (2.03mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Splice Free |
.jpg)
|
3659/20 100SFCBL RIBN 20COND 0.05 BLACK 100' |
2,800 |
|
Datasheet | 3659 | Spool | Active | Flat Cable, Round Jacket | 20 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 0.950" (24.13mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Splice Free, Zippable |
|

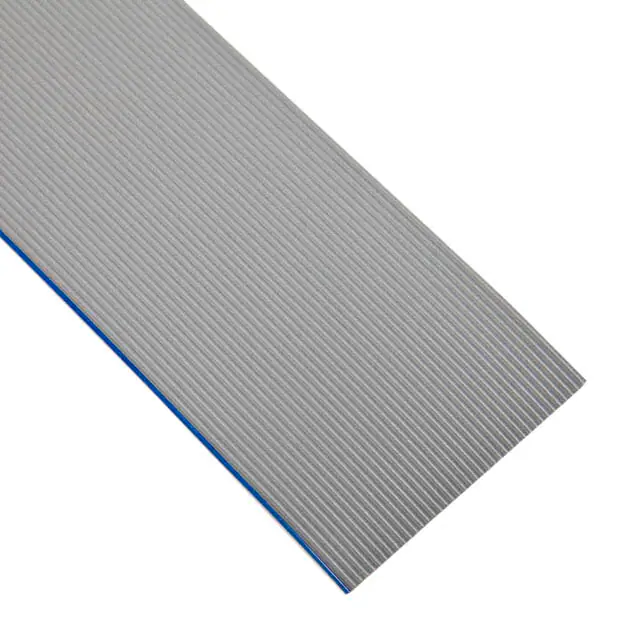

HF319/10 (300')CBL RIBN 10COND 0.05 GRAY 300' |
7,800 |
|
Datasheet | HF319 | Spool | Active | Flat Cable | 10 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.500" (12.70mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|

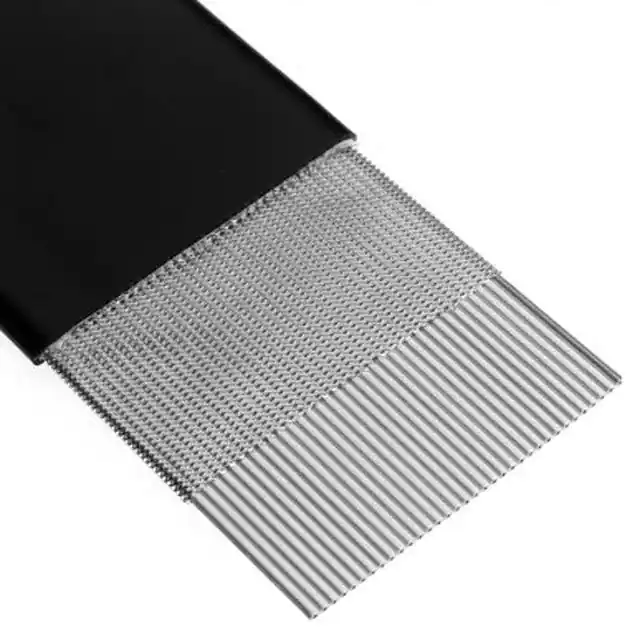

3517/10 100SFCBL RIBN 10COND 0.05 GRAY 100' |
1,900 |
|
Datasheet | 3517 | Spool | Active | Flat Cable, Flat Jacket | 10 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 0.630" (16.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
HF659/25SFCBL RIBN 25COND 0.05 GRAY 275' |
4,950 |
|
Datasheet | HF659 | Spool | Active | Flat Cable, Round Jacket | 25 | 0.050" (1.27mm) | 275.0' (83.82m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | - | 1.200" (30.48mm) | Polyolefin (PO) | 150 V | - | - | -15°C ~ 75°C | UL Style 22170 | Splice Free, Zippable |
.jpg)
|

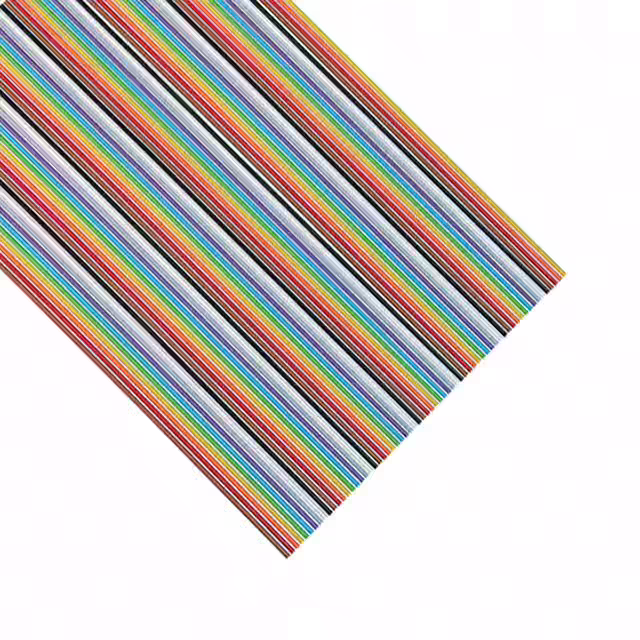

3302/64 100CBL RIBN 64COND 0.05 MULTI 100' |
1,000 |
|
Datasheet | 3302 | Spool | Active | Flat Cable | 64 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 3.200" (81.28mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
