Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

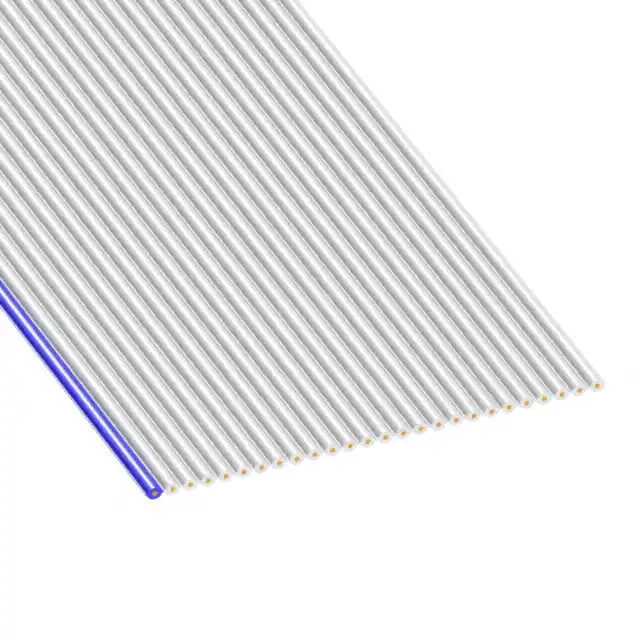

3609/26 100CBL RIBN 26COND 0.025 WHITE 100' |
1,900 |
|
Datasheet | 3609 | Spool | Active | Flat Cable | 26 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | White | 0.024" (0.61mm) | 0.650" (16.51mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 155°C | UL Style 20726 | - |
|
3601/16 100CBL RIBN 16COND 0.05 BLUE 100' |
800 |
|
Datasheet | 3601 | Spool | Active | Flat Cable | 16 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 0.800" (20.32mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
3601/15 100CBL RIBN 15COND 0.05 BLUE 100' |
500 |
|
Datasheet | 3601 | Spool | Active | Flat Cable | 15 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 0.750" (19.05mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
HF319/50 (100')CBL RIBN 50COND 0.05 GRAY 100' |
600 |
|
Datasheet | HF319 | Spool | Active | Flat Cable | 50 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 2.500" (63.50mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
3601/40 100CBL RIBN 40COND 0.05 BLUE 100' |
1,200 |
|
Datasheet | 3601 | Spool | Active | Flat Cable | 40 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 2.000" (50.80mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
|
HF365/64SFCBL RIBN 64COND 0.05 GRAY 100' |
300 |
|
Datasheet | HF365 | Spool | Active | Flat Cable | 64 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 3.200" (81.28mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Splice Free, Zippable |
|
3625/26 30MCBL RIBN 26COND 0.039 GRAY 98.4' |
2,408 |
|
Datasheet | 3625 | Spool | Active | Flat Cable | 26 | 0.039" (1.00mm) | 98.4' (30.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.024" (26.01mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
.jpg)
|
C3302/16 100CBL RIBN 16COND 0.05 MULTI 100' |
4,223 |
|
Datasheet | 3302 | Spool | Active | Flat Cable | 16 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 0.800" (20.32mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
|
8125/07 100CBL RIBN 7COND 0.1 GRAY 100' |
1,004 |
|
Datasheet | 8125 | Spool | Active | Flat Cable | 7 | 0.100" (2.54mm) | 100.0' (30.48m) | 24 AWG | 7 Strands / 32 AWG | Unshielded | Gray | 0.054" (1.37mm) | 0.668" (16.97mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E42769 | Zippable |
|
8132/06 100CBL RIBN 6COND 0.156 GRAY 100' |
110 |
|
Datasheet | 8132 | Spool | Active | Flat Cable | 6 | 0.156" (3.96mm) | 100.0' (30.48m) | 18 AWG | 19 Strands / 30 AWG | Unshielded | Gray | 0.077" (1.96mm) | 0.876" (22.25mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL E42769 | Zippable |
