Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|

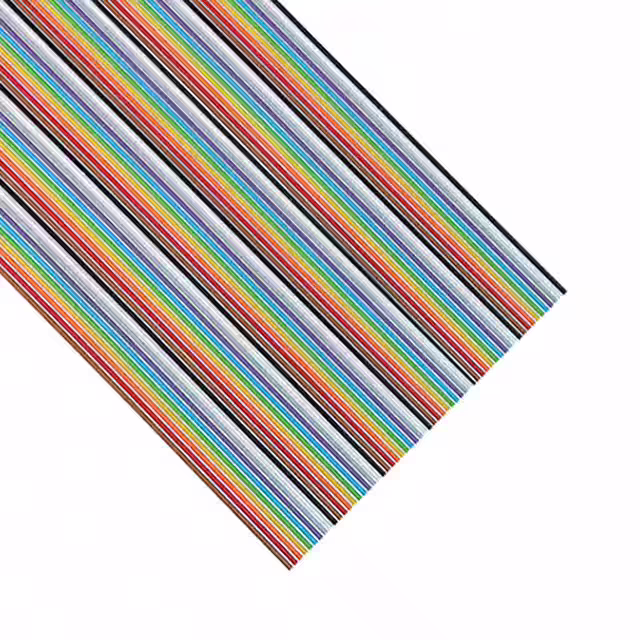

3302/60 300SFCBL RIBN 60COND 0.05 MULTI 300' |
600 |
|
Datasheet | 3302 | Spool | Active | Flat Cable | 60 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 3.000" (76.20mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Splice Free, Zippable |
|
3834/10CBL RIBN 10COND 0.05 BLACK 275' |
2,750 |
|
Datasheet | 3834 | Spool | Active | Flat Cable, Round Jacket | 10 | 0.050" (1.27mm) | 275.0' (83.82m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.080" (2.03mm) | 0.450" (11.43mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | - | UL Style 2912 | Zippable |
.jpg)
|
3659/25 100SFCBL RIBN 25COND 0.05 BLACK 100' |
3,500 |
|
Datasheet | 3659 | Spool | Active | Flat Cable, Round Jacket | 25 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 1.200" (30.48mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Splice Free, Zippable |
|
HF447/40 100'CBL RIBN 40COND 0.025 GRAY 100' |
200 |
|
Datasheet | HF447 | Spool | Active | Flat Cable | 40 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | Solid | Unshielded | Gray | 0.025" (0.64mm) | 1.000" (25.40mm) | Ethylene Vinyl Acetate Copolymer (EVA), Polyolefin (PO) | 150 V | - | - | -40°C ~ 90°C | - | - |
|
|
HF447/60 100'CBL RIBN 60COND 0.025 GRAY 100' |
300 |
|
Datasheet | HF447 | Spool | Active | Flat Cable | 60 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | Solid | Unshielded | Gray | 0.025" (0.64mm) | 1.500" (38.10mm) | Ethylene Vinyl Acetate Copolymer (EVA), Polyolefin (PO) | 150 V | - | - | -40°C ~ 90°C | - | - |
|
3625/24 100MSFCBL RIBN 24COND 0.039 GRY 328.1' |
500 |
|
Datasheet | 3625 | Spool | Active | Flat Cable | 24 | 0.039" (1.00mm) | 328.1' (100.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.945" (24.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Splice Free, Zippable |
|
3625/26 100MSFCBL RIBN 26COND 0.039 GRY 328.1' |
200 |
|
Datasheet | 3625 | Spool | Active | Flat Cable | 26 | 0.039" (1.00mm) | 328.1' (100.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.024" (26.01mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Splice Free, Zippable |
|
8124/12 100CBL RIBN 12COND 0.1 GRAY 100' |
200 |
|
Datasheet | 8124 | Spool | Active | Flat Cable | 12 | 0.100" (2.54mm) | 100.0' (30.48m) | 22 AWG | 7 Strands / 30 AWG | Unshielded | Gray | 0.060" (1.52mm) | 1.168" (29.67mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E42769 | Zippable |
|
HF365/60SFCBL RIBN 60COND 0.05 GRAY 100' |
300 |
|
Datasheet | HF365 | Spool | Active | Flat Cable | 60 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 3.000" (76.20mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Splice Free, Zippable |
|
HF100/34TPCBL RIBN 34COND TWIST PAIR 300' |
600 |
|
Datasheet | HF100 | Spool | Active | Flat Twisted Pair | 34 (17 Pair Twisted) | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue, White | 0.070" (1.78mm) | 1.700" (43.18mm) | Polyolefin (PO) | 150 V | - | - | -40°C ~ 105°C | UL Style 21008 | - |
