Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

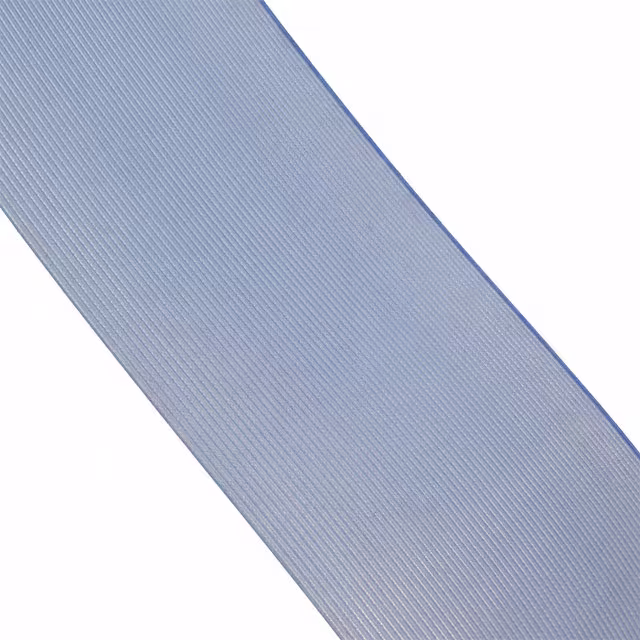

1000570040CBL RIBN 60COND 0.05 BLUE 10' |
2,821 |
|
Datasheet | Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 60 | 0.050" (1.27mm) | 10.0' (3.05m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 3.000" (76.20mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
1000570036CBL RIBN 26COND 0.05 BLUE 25' |
1,780 |
|
Datasheet | Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 26 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 1.300" (33.02mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
1000610130CBL RIBN 2COND FLAT BLUE 100' |
4,413 |
|
Datasheet | Temp-Flex 100061 | Spool | Obsolete | Flat Cable | 2 | - | 100.0' (30.48m) | 24 AWG | 19 Strands / 36 AWG | Unshielded | Blue | 0.044" (1.12mm) | 0.084" (2.13mm) | Fluorinated Ethylene-Propylene (FEP) | - | - | - | - | UL Style 21065 | - |
|
1000570028CBL RIBN 80COND 0.025 NATU 10' |
2,105 |
|
Datasheet | Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 80 | 0.025" (0.64mm) | 10.0' (3.05m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 2.000" (50.80mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 200°C | UL Style 20726 | - |
|
1000570033CBL RIBN 16COND 0.05 BLUE 50' |
3,961 |
|
Datasheet | Temp-Flex | Spool | Discontinued at Digi-Key | Flat Cable | 16 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 0.800" (20.32mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
1000570032CBL RIBN 15COND 0.05 BLUE 50' |
2,212 |
|
Datasheet | Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 15 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 0.750" (19.05mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
1000570021CBL RIBN 20COND 0.025 NATU 50' |
2,971 |
|
Datasheet | Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 20 | 0.025" (0.64mm) | 50.0' (15.24m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 0.500" (12.70mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 200°C | UL Style 20726 | - |
|
1000570029CBL RIBN 100COND 0.025 NATU 10' |
1,866 |
|
Datasheet | Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 100 | 0.025" (0.64mm) | 10.0' (3.05m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 2.500" (63.50mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 200°C | UL Style 20726 | - |
|
1000570024CBL RIBN 40COND 0.025 NATU 25' |
3,421 |
|
Datasheet | Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 40 | 0.025" (0.64mm) | 25.0' (7.62m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 1.000" (25.40mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 200°C | UL Style 20726 | - |
|
1000570037CBL RIBN 34COND 0.05 BLUE 25' |
1,587 |
|
Datasheet | Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 34 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 1.700" (43.18mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
