Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

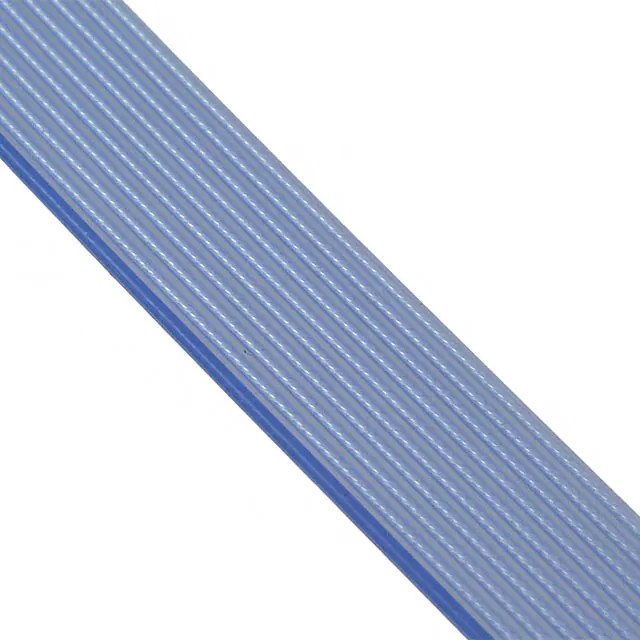

1000570031CBL RIBN 10COND FLAT 0.05 BLUE |
5,578 |
|
Datasheet | Temp-Flex 100057 | Digi-Spool®, Continuous Spool | Active | Flat Cable | 10 | 0.050" (1.27mm) | Enter Number of Feet in Order Quantity | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 0.500" (12.70mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|

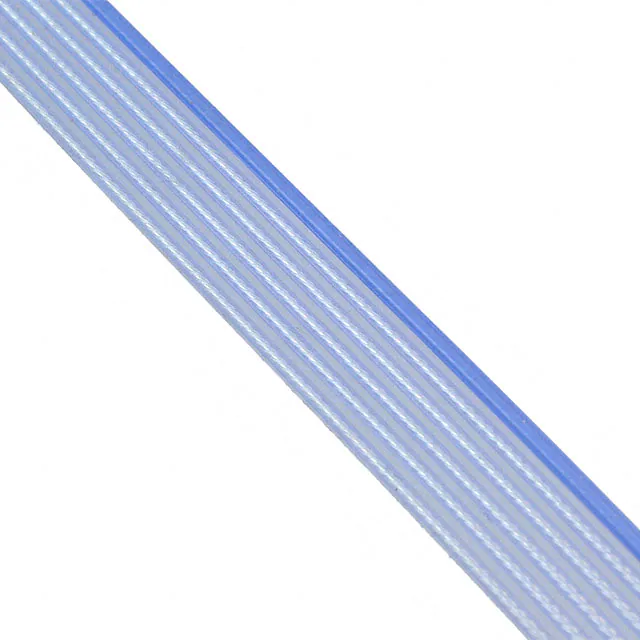

1000570030CBL RIBN 6COND FLAT 0.05 BLUE |
7,516 |
|
Datasheet | Temp-Flex 100057 | Digi-Spool®, Continuous Spool | Active | Flat Cable | 6 | 0.050" (1.27mm) | Enter Number of Feet in Order Quantity | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 0.300" (7.62mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|

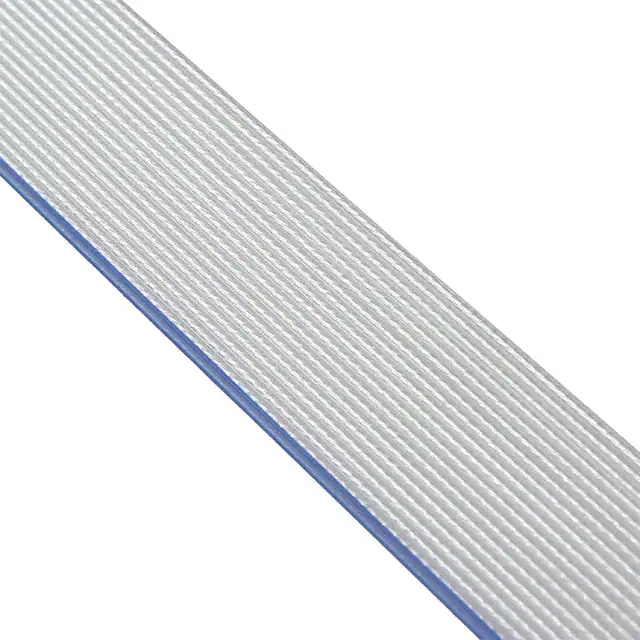

1000570021CBL RIBN 20COND 0.025 NATURAL |
3,691 |
|
Datasheet | Temp-Flex 100057 | Digi-Spool®, Continuous Spool | Active | Flat Cable | 20 | 0.025" (0.64mm) | Enter Number of Feet in Order Quantity | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 0.500" (12.70mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 200°C | UL Style 20726 | - |
|

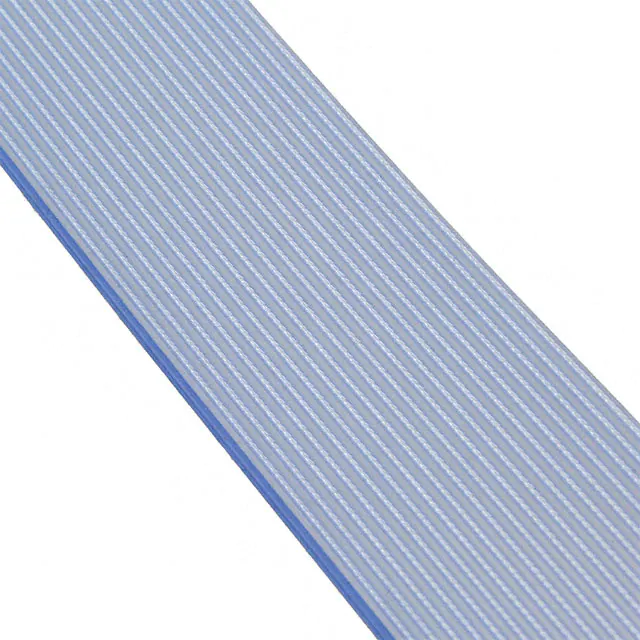

1000570034CBL RIBN 20COND FLAT 0.05 BLUE |
9,311 |
|
Datasheet | Temp-Flex 100057 | Digi-Spool®, Continuous Spool | Active | Flat Cable | 20 | 0.050" (1.27mm) | Enter Number of Feet in Order Quantity | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 1.000" (25.40mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
1000570033CBL RIBN 16COND FLAT 0.05 BLUE |
3,452 |
|
Datasheet | Temp-Flex 100057 | Digi-Spool®, Continuous Spool | Active | Flat Cable | 16 | 0.050" (1.27mm) | Enter Number of Feet in Order Quantity | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 0.800" (20.32mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|

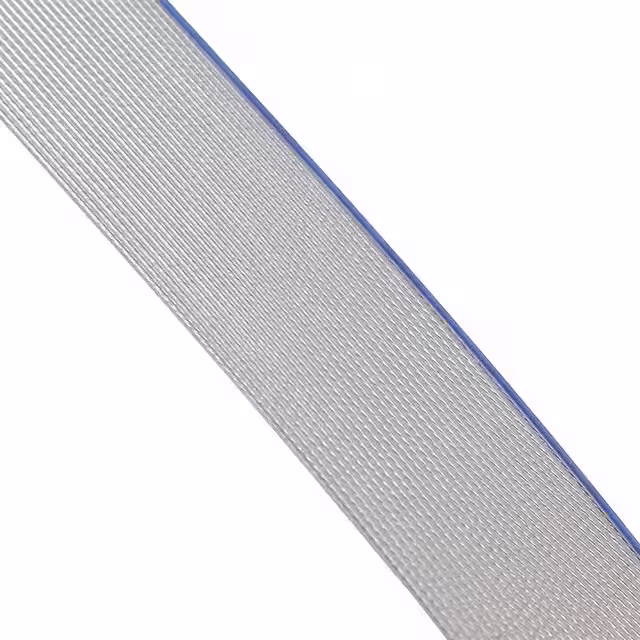

1000570023CBL RIBN 30COND 0.025 NATURAL |
5,852 |
|
Datasheet | Temp-Flex 100057 | Digi-Spool®, Continuous Spool | Active | Flat Cable | 30 | 0.025" (0.64mm) | Enter Number of Feet in Order Quantity | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 0.750" (19.05mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 200°C | UL Style 20726 | - |
|

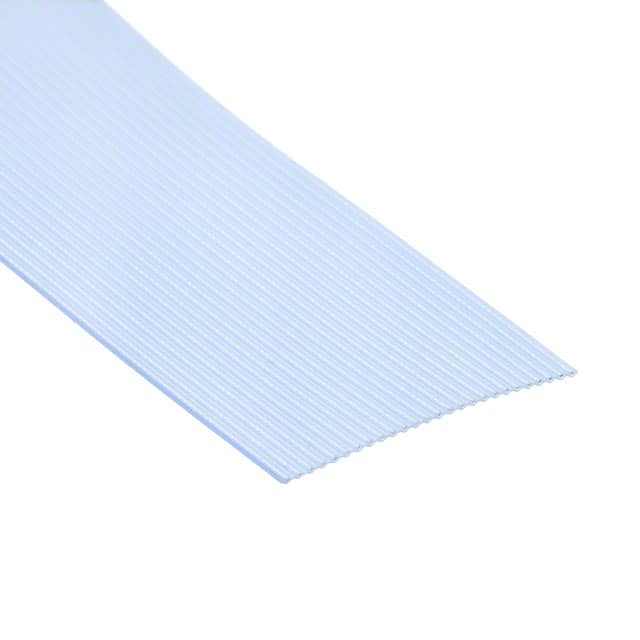

1000570036CBL RIBN 26COND FLAT 0.05 BLUE |
1,593 |
|
Datasheet | Temp-Flex 100057 | Digi-Spool®, Continuous Spool | Active | Flat Cable | 26 | 0.050" (1.27mm) | Enter Number of Feet in Order Quantity | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 1.300" (33.02mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
1000570024CBL RIBN 40COND 0.025 NATURAL |
1,004 |
|
Datasheet | Temp-Flex 100057 | Digi-Spool®, Continuous Spool | Active | Flat Cable | 40 | 0.025" (0.64mm) | Enter Number of Feet in Order Quantity | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 1.000" (25.40mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 200°C | UL Style 20726 | - |
|

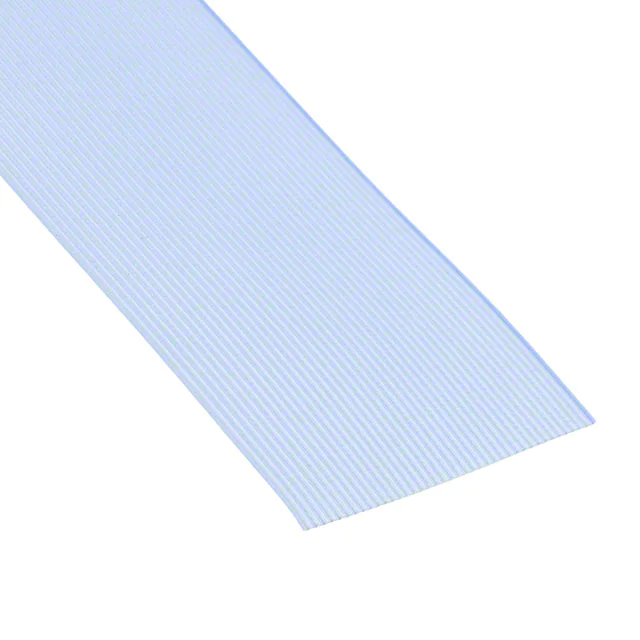

1000570038CBL RIBN 40COND FLAT 0.05 BLUE |
5,860 |
|
Datasheet | Temp-Flex 100057 | Digi-Spool®, Continuous Spool | Active | Flat Cable | 40 | 0.050" (1.27mm) | Enter Number of Feet in Order Quantity | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 2.000" (50.80mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|

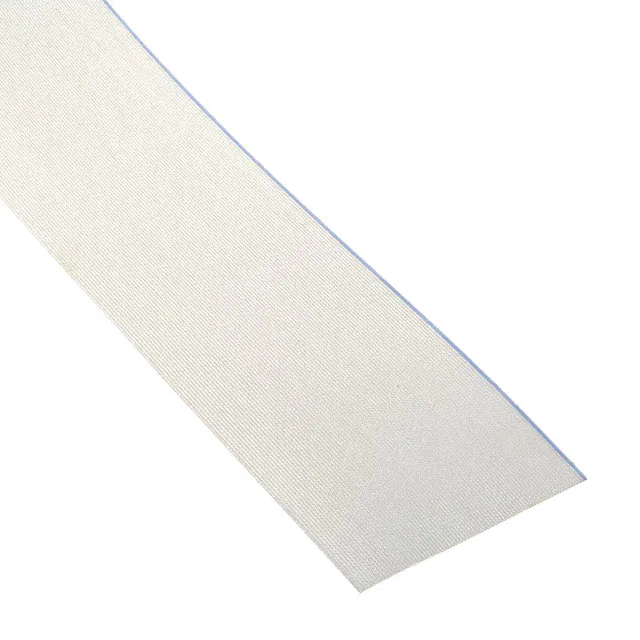

1000570028CBL RIBN 80COND 0.025 NATURAL |
5,132 |
|
Datasheet | Temp-Flex 100057 | Digi-Spool®, Continuous Spool | Active | Flat Cable | 80 | 0.025" (0.64mm) | Enter Number of Feet in Order Quantity | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 2.000" (50.80mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 200°C | UL Style 20726 | - |
