Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1000570254CBL RIBN 50COND 0.05 NATU 450' |
4,362 |
|
Datasheet | Temp-Flex 100057 | Spool | Active | Flat Cable | 50 | 0.050" (1.27mm) | 450.0' (137.16m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Natural | - | 2.500" (63.50mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -65°C ~ 200°C | - | - |
|
|
0082226005CBL RIBN 5COND 0.1 GRAY 100' |
3,042 |
|
Datasheet | 8867 | Bulk | Obsolete | Flat Cable | 5 | 0.100" (2.54mm) | 100.0' (30.48m) | 22 AWG | 7 Strands / 30 AWG | Unshielded | Gray | 0.054" (1.37mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | - |
|
0082245908CBL RIBN 8COND 0.1 GRAY 100' |
3,314 |
|
Datasheet | 8997 | Bulk | Obsolete | Flat Cable | 8 | 0.100" (2.54mm) | 100.0' (30.48m) | 24 AWG | 7 Strands / 32 AWG | Unshielded | Gray | 0.044" (1.12mm) | 0.800" (20.32mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | - |
|
0082283020CBL RIBN 20COND 0.039 GRAY 100' |
2,444 |
|
Datasheet | 24500 | Bulk | Obsolete | Flat Cable | 20 | 0.039" (1.00mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.031" (0.79mm) | 0.787" (20.00mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | -20°C ~ 105°C | UL E61522 | Zippable |
|

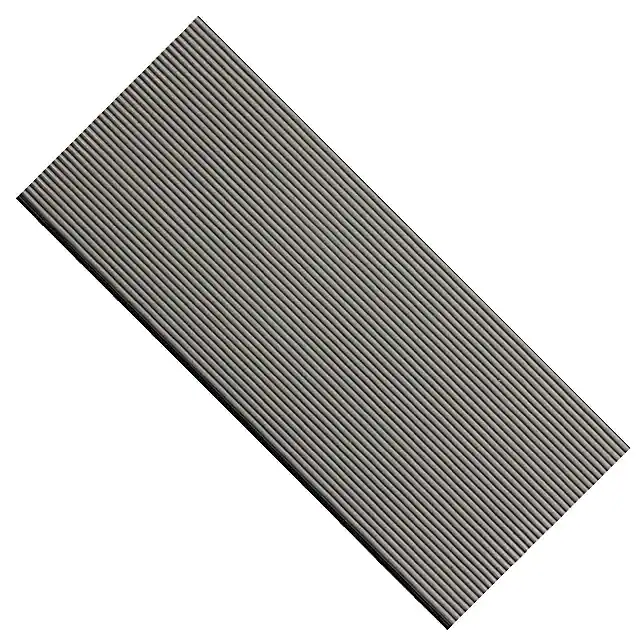

0082283040CBL RIBN 40COND 0.039 GRAY 100' |
1,280 |
|
Datasheet | 24500 | Bulk | Obsolete | Flat Cable | 40 | 0.039" (1.00mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.031" (0.79mm) | 1.575" (40.00mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | -20°C ~ 105°C | UL E61522 | Zippable |
|
0082283050CBL RIBN 50COND 0.039 GRAY 100' |
2,068 |
|
Datasheet | 24500 | Bulk | Obsolete | Flat Cable | 50 | 0.039" (1.00mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.031" (0.79mm) | 1.969" (50.01mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | -20°C ~ 105°C | UL E61522 | Zippable |
|
|
0082286101CBL RIBN 10COND 0.1 GRAY 100' |
1,501 |
|
Datasheet | 7767 | Bulk | Obsolete | Flat Cable | 10 | 0.100" (2.54mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.041" (1.04mm) | 1.000" (25.40mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | Zippable |
|

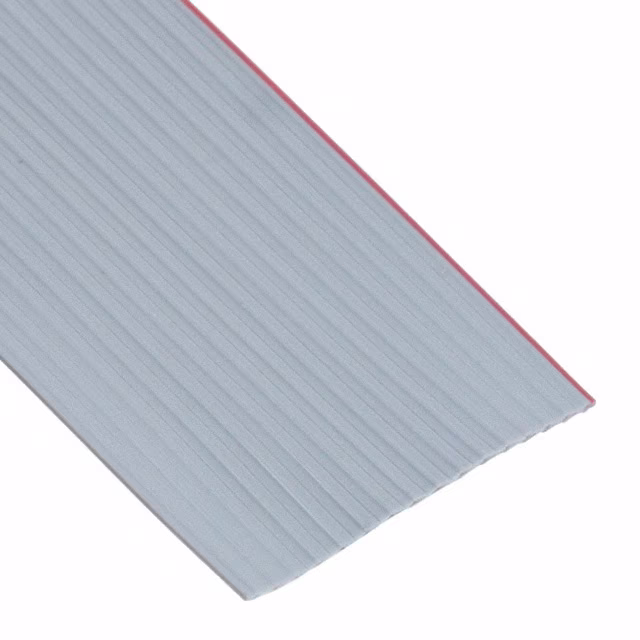

0082286161CBL RIBN 16COND 0.1 GRAY 100' |
4,300 |
|
Datasheet | 7767 | Bulk | Obsolete | Flat Cable | 16 | 0.100" (2.54mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.041" (1.04mm) | 1.600" (40.64mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651, CSA LL61126 | Zippable |
|
0082226102CBL RIBN 2COND 0.1 GRAY 100' |
3,152 |
|
Datasheet | 7560 | Bulk | Obsolete | Flat Cable | 2 | 0.100" (2.54mm) | 100.0' (30.48m) | 22 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.051" (1.30mm) | 0.200" (5.08mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
0082226104CBL RIBN 4COND 0.1 GRAY 100' |
3,251 |
|
Datasheet | 7560 | Bulk | Obsolete | Flat Cable | 4 | 0.100" (2.54mm) | 100.0' (30.48m) | 22 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.051" (1.30mm) | 0.300" (7.62mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
