Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

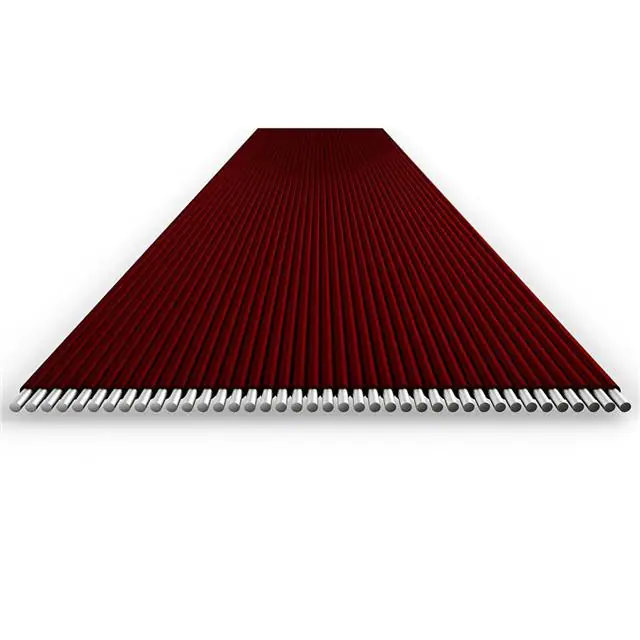

1000570272CBL RIBN 10COND 0.025 NATURAL |
1,667 |
|
Datasheet | Temp-Flex 100057 | Digi-Spool®, Continuous Spool | Active | Flat Cable | 10 | 0.025" (0.64mm) | Enter Number of Feet in Order Quantity | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 0.250" (6.35mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -65°C ~ 200°C | - | - |
|
|
1000570273CBL RIBN 12COND 0.025 NATURAL |
3,075 |
|
Datasheet | Temp-Flex 100057 | Digi-Spool®, Continuous Spool | Active | Flat Cable | 12 | 0.025" (0.64mm) | Enter Number of Feet in Order Quantity | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | - | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -65°C ~ 200°C | - | - |
|
1000570151CBL RIBN 14COND FLAT 0.05 BLUE |
3,991 |
|
Datasheet | Temp-Flex 100057 | Digi-Spool®, Continuous Spool | Active | Flat Cable | 14 | 0.050" (1.27mm) | Enter Number of Feet in Order Quantity | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 0.700" (17.78mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | 200°C | - | - |
|
|
1000570226CBL RIBN 2COND FLAT 0.05 NATURAL |
8,758 |
|
Datasheet | Temp-Flex 100057 | Digi-Spool®, Continuous Spool | Active | Flat Cable | 2 | 0.050" (1.27mm) | Enter Number of Feet in Order Quantity | 28 AWG | 19 Strands / 40 AWG | Unshielded | Natural | - | - | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
|
1000570267CBL RIBN 6COND 0.025 NATURAL |
953 |
|
Datasheet | Temp-Flex 100057 | Digi-Spool®, Continuous Spool | Active | Flat Cable | 6 | 0.025" (0.64mm) | Enter Number of Feet in Order Quantity | 30 AWG | Solid | Unshielded | Natural | - | 0.150" (3.81mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -65°C ~ 200°C | - | - |
|
|
1000570140CBL RIBN 10COND FLAT 0.039 BLUE |
7,861 |
|
Datasheet | Temp-Flex 100057 | Digi-Spool®, Continuous Spool | Active | Flat Cable | 10 | 0.039" (1.00mm) | Enter Number of Feet in Order Quantity | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | - | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | 200°C | - | - |
|
|
1000570142CBL RIBN 10COND FLAT 0.05 RED |
1,093 |
|
Datasheet | Temp-Flex 100057 | Digi-Spool®, Continuous Spool | Active | Flat Cable | 10 | 0.050" (1.27mm) | Enter Number of Feet in Order Quantity | 28 AWG | 7 Strands / 36 AWG | Unshielded | Red | 0.029" (0.74mm) | 0.500" (12.70mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | 200°C | - | - |
|
|
1000570276CBL RIBN 16COND 0.025 NATURAL |
2,194 |
|
Datasheet | Temp-Flex 100057 | Digi-Spool®, Continuous Spool | Active | Flat Cable | 16 | 0.025" (0.64mm) | Enter Number of Feet in Order Quantity | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 0.400" (10.16mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -65°C ~ 200°C | - | - |
|
|
1000570101CBL RIBN 20COND FLAT 0.05 GREEN |
1,490 |
|
Datasheet | Temp-Flex 100057 | Digi-Spool®, Continuous Spool | Active | Flat Cable | 20 | 0.050" (1.27mm) | Enter Number of Feet in Order Quantity | 26 AWG | 7 Strands / 34 AWG | Unshielded | Green | 0.032" (0.81mm) | 1.000" (25.40mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | 200°C | - | - |
|

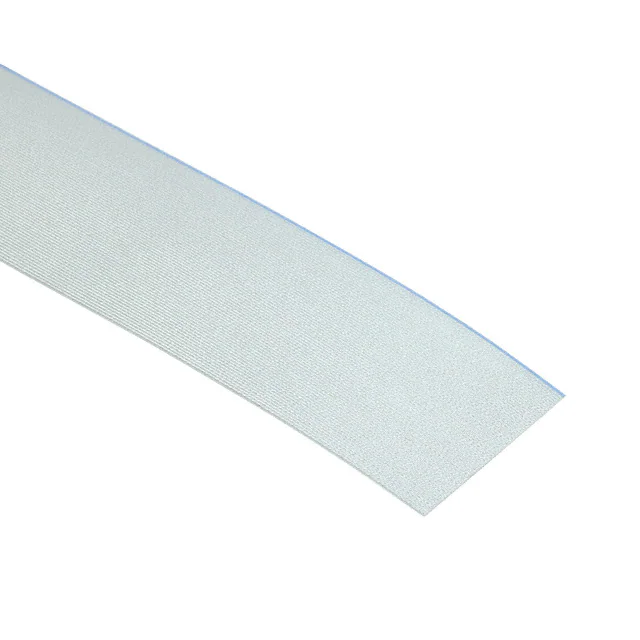

1000570027CBL RIBN 68COND 0.025 NATURAL |
1,998 |
|
Datasheet | Temp-Flex 100057 | Digi-Spool®, Continuous Spool | Active | Flat Cable | 68 | 0.025" (0.64mm) | Enter Number of Feet in Order Quantity | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 1.700" (43.18mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 200°C | UL Style 20726 | - |
