Flat Ribbon Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Pitch | Length | Wire Gauge | Conductor Strand | Shielding | Jacket Color | Ribbon Thickness | Ribbon Width | Jacket (Insulation) Material | Voltage | Operating Temperature | Ratings | Features | Ratings | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
09180107008CBL RIBN 10COND 0.05 BLACK 100' |
4,862 |
|
Datasheet | - | Bulk | Active | Flat Cable, Round Jacket | 10 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Black | 0.035" (0.89mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | - | - |
|
|
09180267008CBL RIBN 26COND 0.05 BLACK 100' |
3,530 |
|
Datasheet | - | Bulk | Active | Flat Cable, Round Jacket | 26 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Black | 0.035" (0.89mm) | 1.300" (33.02mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | - | - |
|

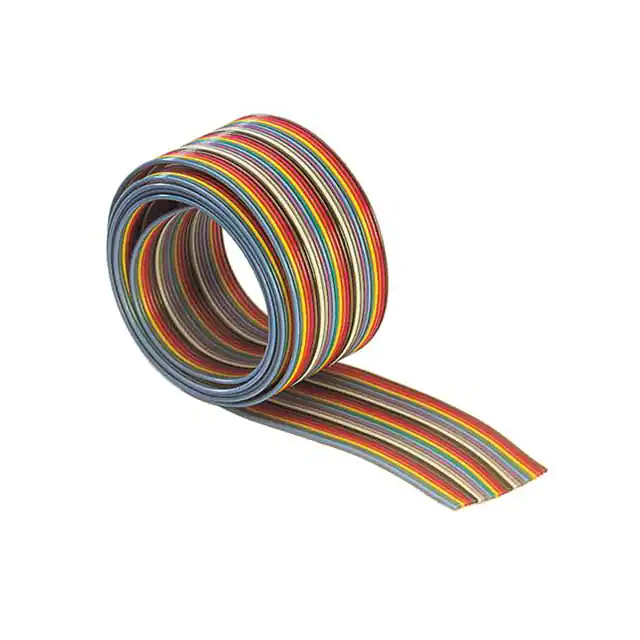

09180067005CBL RIBN 6COND 0.05 MULTI 100' |
4,849 |
|
Datasheet | - | Bulk | Active | Flat Cable | 6 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Multiple | 0.037" (0.93mm) | 0.287" (7.28mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
09180607001CBL RIBN 60COND 0.05 GRAY 100' |
3,255 |
|
Datasheet | - | Bulk | Active | Flat Cable | 60 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Gray | 0.037" (0.93mm) | 2.987" (75.86mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
09180167008CBL RIBN 16COND 0.05 BLACK 100' |
4,828 |
|
Datasheet | - | Bulk | Active | Flat Cable, Round Jacket | 16 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Black | 0.035" (0.89mm) | 0.800" (20.32mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | - | - |
|
09180147006CBL RIBN 14COND 0.05 MULTI 100' |
4,905 |
|
Datasheet | - | Bulk | Active | Flat Cable | 14 (7 Pair Twisted) | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 0.726" (18.44mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20130 | - |
|
09180207007CBL RIBN 20COND 0.05 GRAY 100' |
3,285 |
|
Datasheet | - | Bulk | Active | Flat Cable, Round Jacket | 20 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Shielded | Gray | 0.037" (0.93mm) | 1.000" (25.40mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 75°C | - | - |
|
09180377007CBL RIBN 37COND 0.05 GRAY 100' |
3,781 |
|
Datasheet | - | Bulk | Active | Flat Cable, Round Jacket | 37 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Shielded | Gray | 0.037" (0.93mm) | 1.850" (46.99mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 75°C | - | - |
|
|
09180347008CBL RIBN 34COND 0.05 BLACK 100' |
4,965 |
|
Datasheet | - | Bulk | Active | Flat Cable, Round Jacket | 34 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Black | 0.035" (0.89mm) | 1.700" (43.18mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | - | - |
|
09180347005CBL RIBN 34COND 0.05 MULTI 100' |
3,925 |
|
Datasheet | - | Bulk | Active | Flat Cable | 34 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Multiple | 0.037" (0.93mm) | 1.689" (42.91mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
