Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CB172D0335JBCCAP FILM |
83 |
|
Datasheet | 5040 (127102 Metric) | 3.3 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.504" L x 0.402" W (12.80mm x 10.20mm) | 0.217" (5.50mm) | Solder Pads | - | General Purpose | - | - |
|
FFB26J0565K--CAP FILM 5.6UF 10% 525VDC RADIAL |
80 |
|
Datasheet | Radial | 5.6 µF | ±10% | 105V | 525V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.224" L x 0.575" W (31.10mm x 14.60mm) | 1.012" (25.70mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
FFVE6B0107K--CAP FILM 100UF 10% 800VDC RADIAL |
12 |
|
Datasheet | Radial, Can | 100 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.047" (52.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
FFVE6B0107KJECAP FILM 100UF 10% 800VDC RADIAL |
5 |
|
Datasheet | Radial, Can | 100 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.047" (52.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
|
FFVE6C0476KJECAP FILM 47UF 10% 900VDC RADIAL |
4 |
|
Datasheet | Radial, Can | 47 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Chassis Mount | 3.327" Dia (84.50mm) | 1.614" (41.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
|
FFVE6B0147KJECAP FILM 140UF 10% 800VDC RADIAL |
25 |
|
Datasheet | Radial, Can | 140 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.559" (65.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|

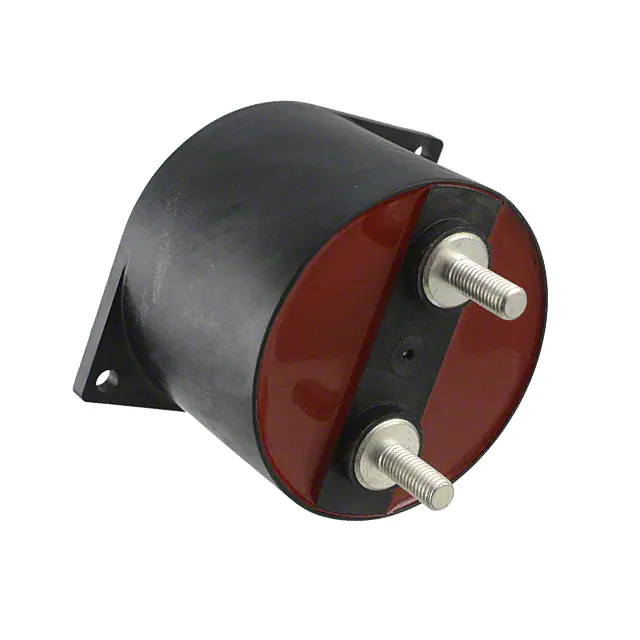

FFVE6U0107KJ7CAP FILM 100UF 10% 1.2KVDC RAD |
2 |
|
Datasheet | Radial, Can | 100 µF | ±10% | - | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.559" (65.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
FFVI6J2756KJECAP FILM 275UF 10% 500VDC RADIAL |
24 |
|
Datasheet | Radial, Can | 275 µF | ±10% | - | 500V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Chassis Mount | 3.327" Dia (84.50mm) | 2.559" (65.00mm) | Threaded, Female | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|

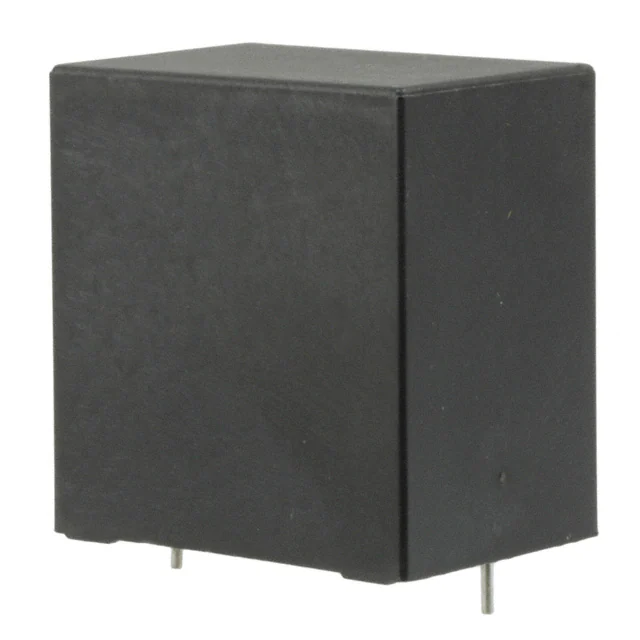

FB37M6A0306KCCAP FILM 30UF 10% 700VDC RADIAL |
59 |
|
Datasheet | Radial | 30 µF | ±10% | - | 700V | Polypropylene (PP), Metallized | 4.5 mOhms | -40°C ~ 100°C | Through Hole | 1.673" L x 1.181" W (42.50mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering | - | Low ESR |
|
|
FFB26A0435K--CAP FILM 4.3UF 10% 720VDC RADIAL |
93 |
|
Datasheet | Radial | 4.3 µF | ±10% | 120V | 720V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.224" L x 0.575" W (31.10mm x 14.60mm) | 1.012" (25.70mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
