Film Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FFB36A0625K--CAP FILM 6.2UF 10% 720VDC RADIAL |
272 |
|
Datasheet | Radial | 6.2 µF | ±10% | 120V | 720V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.224" L x 0.681" W (31.10mm x 17.30mm) | 1.173" (29.80mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
|
FFB34H0166K--CAP FILM 16UF 10% 300VDC RADIAL |
161 |
|
Datasheet | Radial | 16 µF | ±10% | 90V | 300V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.224" L x 0.681" W (31.10mm x 17.30mm) | 1.173" (29.80mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
FFB14D0336K--CAP FILM 33UF 10% 75VDC RADIAL |
490 |
|
Datasheet | Radial | 33 µF | ±10% | 45V | 75V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.224" L x 0.512" W (31.10mm x 13.00mm) | 0.882" (22.40mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
FFB56L0475K--CAP FILM 4.7UF 10% 1.1KVDC RAD |
136 |
|
Datasheet | Radial | 4.7 µF | ±10% | 180V | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.866" W (32.00mm x 22.00mm) | 1.457" (37.00mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
|
FFB34D0686K--CAP FILM 68UF 10% 75VDC RADIAL |
192 |
|
Datasheet | Radial | 68 µF | ±10% | 45V | 75V | Polyester, Metallized | - | -55°C ~ 105°C | Through Hole | 1.224" L x 0.681" W (31.10mm x 17.30mm) | 1.173" (29.80mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering | - | - |
|
FFV34D0167K--CAP FILM 160UF 10% 75VDC RADIAL |
304 |
|
Datasheet | Radial - 4 Leads | 160 µF | ±10% | 45V | 75V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.575" L x 1.417" W (40.00mm x 36.00mm) | 1.575" (40.00mm) | PC Pins | 0.984" (25.00mm) | General Purpose | - | - |
|
FFVE6C0476K--CAP FILM 47UF 10% 900VDC RADIAL |
160 |
|
Datasheet | Radial, Can | 47 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Chassis Mount | 3.327" Dia (84.50mm) | 1.614" (41.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|
|
FFVE6K0107K--CAP FILM 100UF 10% 600VDC RADIAL |
16 |
|
Datasheet | Radial, Can | 100 µF | ±10% | - | 600V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Chassis Mount | 3.327" Dia (84.50mm) | 1.614" (41.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
|

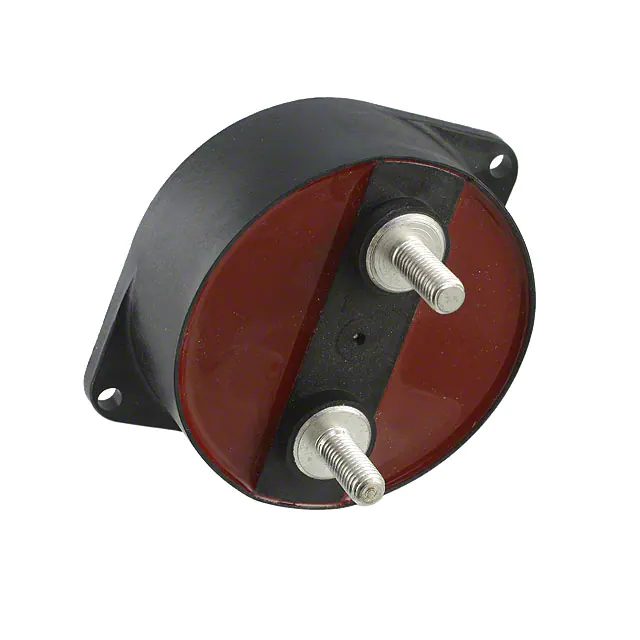

FFVE4H0227K--CAP FILM 220UF 10% 300VDC RADIAL |
32 |
|
Datasheet | Radial, Can | 220 µF | ±10% | - | 300V | Polyester, Metallized | - | -40°C ~ 105°C | Chassis Mount | 3.327" Dia (84.50mm) | - | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | - |
-2,80mm.jpg)
|
CB037E0104KBACAP FILM 0.1UF 10% 100VDC 1812 |
2,434 |
|
Datasheet | 1812 (4532 Metric) | 0.1 µF | ±10% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.126" W (4.70mm x 3.20mm) | 0.118" (3.00mm) | Solder Pads | - | General Purpose | - | - |
