DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

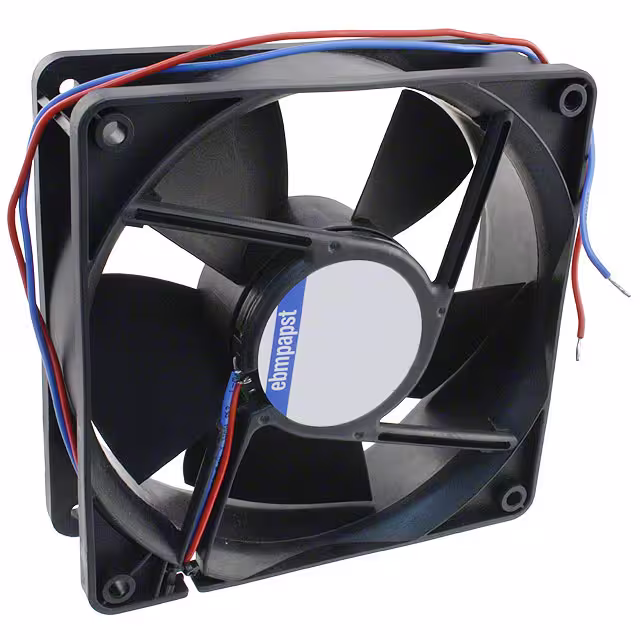

4212NGLFAN AXIAL 119X38MM 12VDC WIRE |
1,857 |
|
Datasheet | 4200N | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 59.0 CFM (1.65m³/min) | - | Sintec | Tubeaxial | - | 28.0dB(A) | 1.4 W | 1700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.507 lb (229.97 g) |
|
|
4212NGMLFAN AXIAL 119X38MM 12VDC WIRE |
4,445 |
|
Datasheet | 4200N | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 75.0 CFM (2.10m³/min) | - | Sintec | Tubeaxial | - | 35.0dB(A) | 2.3 W | 2150 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.507 lb (229.97 g) |
|
|
4212NGNFAN AXIAL 119X38MM 12VDC WIRE |
3,657 |
|
Datasheet | 4200N | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 38.00mm | 97.0 CFM (2.72m³/min) | - | Sintec | Tubeaxial | - | 42.0dB(A) | 4.3 W | 2750 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.507 lb (229.97 g) |
|
|
4214NGLFAN AXIAL 119X38MM 24VDC WIRE |
3,948 |
|
Datasheet | 4200N | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 59.0 CFM (1.65m³/min) | - | Sintec | Tubeaxial | - | 28.0dB(A) | 1.4 W | 1700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.507 lb (229.97 g) |
|
|
4214NGMFAN AXIAL 119X38MM 24VDC WIRE |
3,768 |
|
Datasheet | 4200N | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 85.0 CFM (2.38m³/min) | - | Sintec | Tubeaxial | - | 38.0dB(A) | 3.1 W | 2450 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.507 lb (229.97 g) |
|
|
4214NGNFAN AXIAL 119X38MM 24VDC WIRE |
2,000 |
|
Datasheet | 4200N | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 97.0 CFM (2.72m³/min) | - | Sintec | Tubeaxial | - | 42.0dB(A) | 4.3 W | 2750 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.507 lb (229.97 g) |
|
3312VFAN AXIAL 92X32MM 12VDC WIRE |
4,544 |
|
Datasheet | 3300V | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 23.0 CFM (0.644m³/min) | - | Ball | Tubeaxial | - | 24.0dB(A) | 1.4 W | - | 2 Wire Leads | - | - | - | 0.44 lb (199.58 g) |
|
|
412/2P-097FAN AXIAL 40X20MM 12VDC WIRE |
1,021 |
|
Datasheet | 400 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 5.9 CFM (0.165m³/min) | - | Sintec | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | - | 800 mW | 6000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
4394LFAN AXIAL 119X32MM 24VDC TERM |
1,301 |
|
Datasheet | 4300 | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 32.00mm | 56.0 CFM (1.57m³/min) | - | Ball | Tubeaxial | - | 30.0dB(A) | 1.2 W | - | 2 Terminals | - | - | CE, CSA, UL, VDE | 0.5 lb (226.8 g) |
|
3312MFAN AXIAL 92X32MM 12VDC WIRE |
4,599 |
|
Datasheet | 3300 | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 40.0 CFM (1.12m³/min) | - | Ball | Tubeaxial | - | 34.0dB(A) | 1.7 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CSA, UL, VDE | 0.419 lb (190.06 g) |
