DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

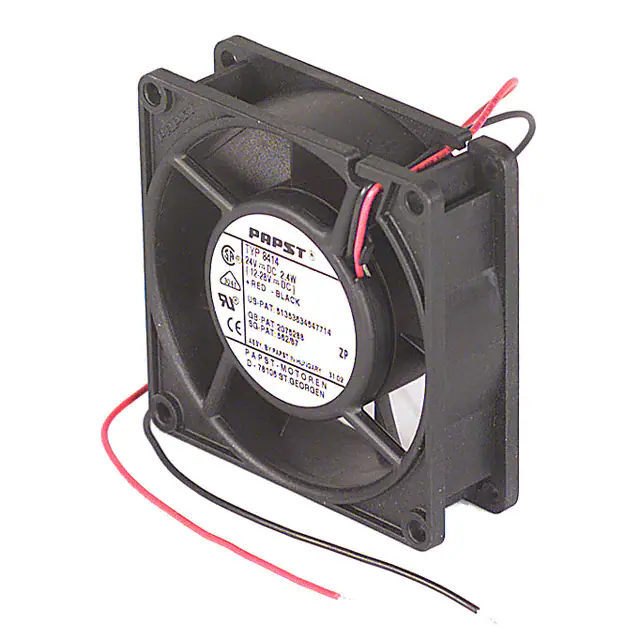

8414FAN AXIAL 80X25MM 24VDC WIRE |
2,310 |
|
Datasheet | 8400 | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 33.0 CFM (0.924m³/min) | - | Ball | Tubeaxial | - | 35.0dB(A) | 2.4 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|

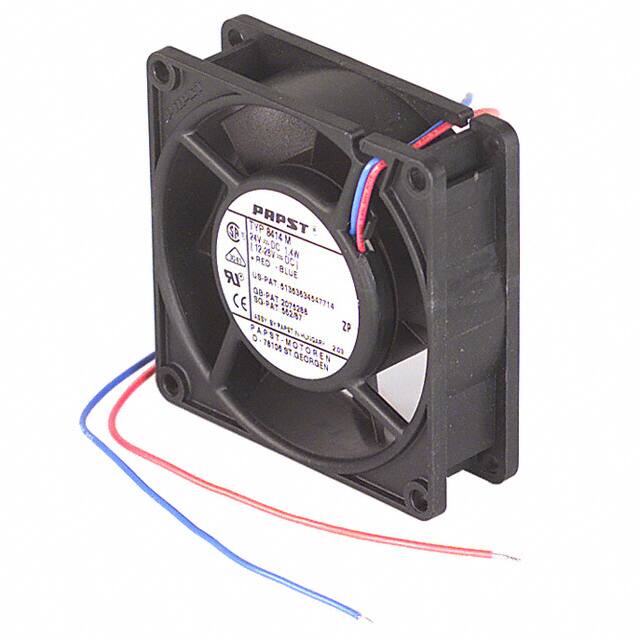

8414MFAN AXIAL 80X25MM 24VDC WIRE |
4,066 |
|
Datasheet | 8400 | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 27.0 CFM (0.756m³/min) | - | Ball | Tubeaxial | - | 29.0dB(A) | 1.4 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|
8414LFAN AXIAL 80X25MM 24VDC WIRE |
4,400 |
|
Datasheet | 8400 | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 21.0 CFM (0.588m³/min) | - | Ball | Tubeaxial | - | 21.0dB(A) | 800 mW | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|

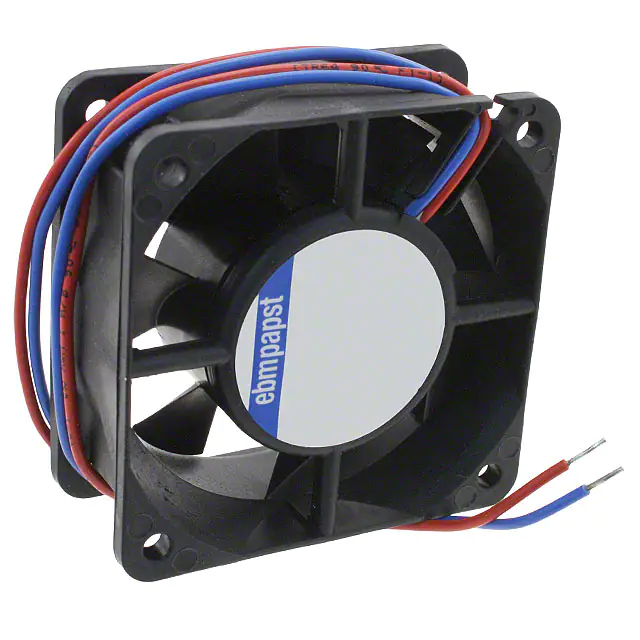

614HFAN AXIAL 60X25.4MM 24VDC WIRE |
3,055 |
|
Datasheet | 600 | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 27.0 CFM (0.756m³/min) | - | Ball | Tubeaxial | - | 44.0dB(A) | 3.4 W | - | 2 Wire Leads | - | - | - | 0.19 lb (86.18 g) |
|

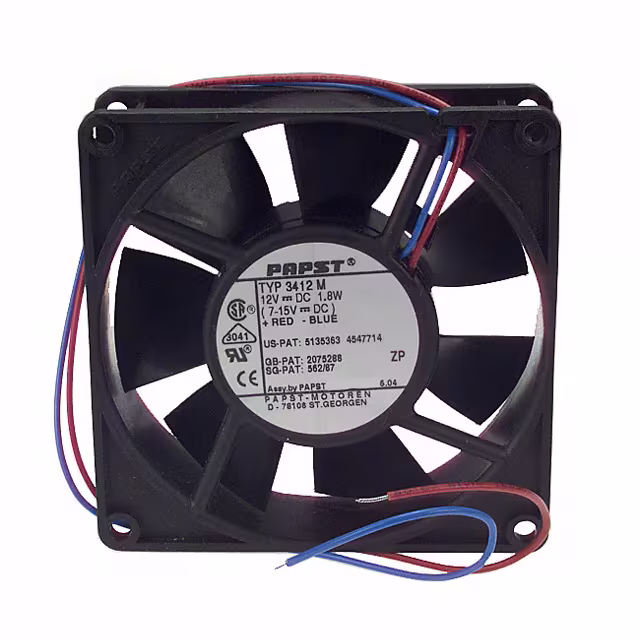

3412MFAN AXIAL 92X25.4MM 12VDC WIRE |
4,331 |
|
Datasheet | 3400 | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 42.0 CFM (1.18m³/min) | - | Ball | Tubeaxial | - | 32.0dB(A) | 1.8 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|

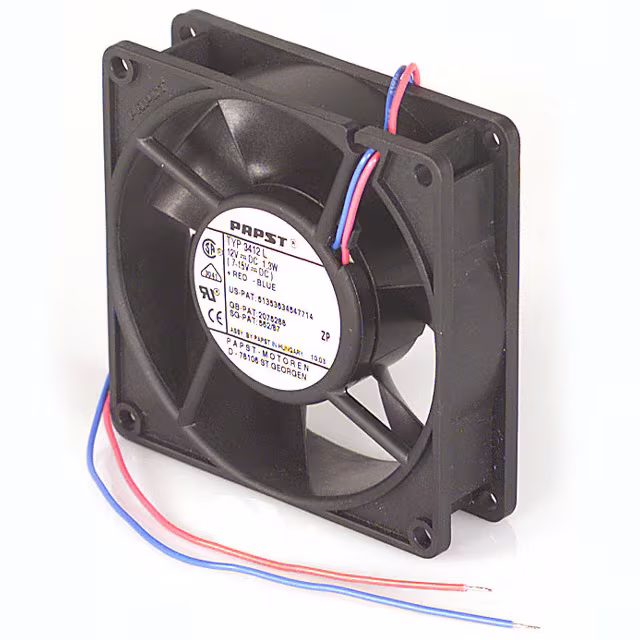

3412LFAN AXIAL 92X25.4MM 12VDC WIRE |
4,302 |
|
Datasheet | 3400 | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 36.0 CFM (1.01m³/min) | - | Ball | Tubeaxial | - | 27.0dB(A) | 1.3 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|
|
3412FAN AXIAL 92X25.4MM 12VDC WIRE |
3,521 |
|
Datasheet | 3400 | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 49.0 CFM (1.37m³/min) | - | Ball | Tubeaxial | - | 36.0dB(A) | 2.4 W | - | 2 Wire Leads | - | - | - | 0.31 lb (140.61 g) |
|
|
605LFAN AXIAL 60X25.4MM 5VDC WIRE |
3,698 |
|
Datasheet | 600 | - | Obsolete | 5VDC | Square - 60mm L x 60mm H | 25.40mm | 12.0 CFM (0.336m³/min) | - | Ball | Tubeaxial | - | 26.0dB(A) | 800 mW | - | 2 Wire Leads | - | - | - | 0.19 lb (86.18 g) |
|
|
612MFAN AXIAL 60X25.4MM 12VDC WIRE |
3,701 |
|
Datasheet | 600 | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 18.0 CFM (0.504m³/min) | - | Ball | Tubeaxial | - | 33.0dB(A) | 1.3 W | - | 2 Wire Leads | - | - | - | 0.19 lb (86.18 g) |
|
|
612LFAN AXIAL 60X25.4MM 12VDC WIRE |
2,879 |
|
Datasheet | 600 | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 12.0 CFM (0.336m³/min) | - | Ball | Tubeaxial | - | 26.0dB(A) | 700 mW | - | 2 Wire Leads | - | - | - | 0.19 lb (86.18 g) |
