DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8414NHFAN AXIAL 80X25.4MM 24VDC WIRE |
398 |
|
Datasheet | 8400N | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 46.5 CFM (1.30m³/min) | - | Ball | Tubeaxial | - | 37.0dB(A) | 2.4 W | 3600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.21 lb (95.25 g) |
|
|
8414NFAN AXIAL 80X25.4MM 24VDC WIRE |
385 |
|
Datasheet | 8400N | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 40.6 CFM (1.14m³/min) | - | Ball | Tubeaxial | - | 32.0dB(A) | 2 W | 3100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|

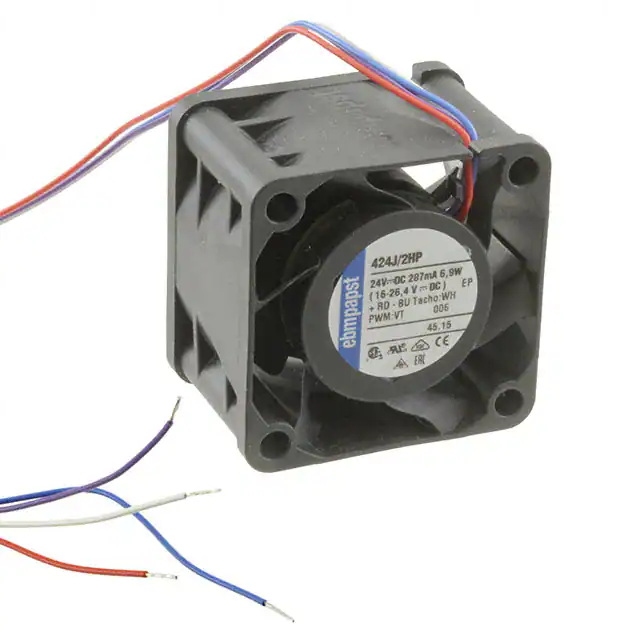

424J/2HPFAN AXIAL 40X28MM 24VDC WIRE |
323 |
|
Datasheet | 420J | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 22.4 CFM (0.627m³/min) | 2.129 in H2O (530.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 7.2 W | 17200 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CSA, UL, VDE | 0.099 lb (44.91 g) |
|

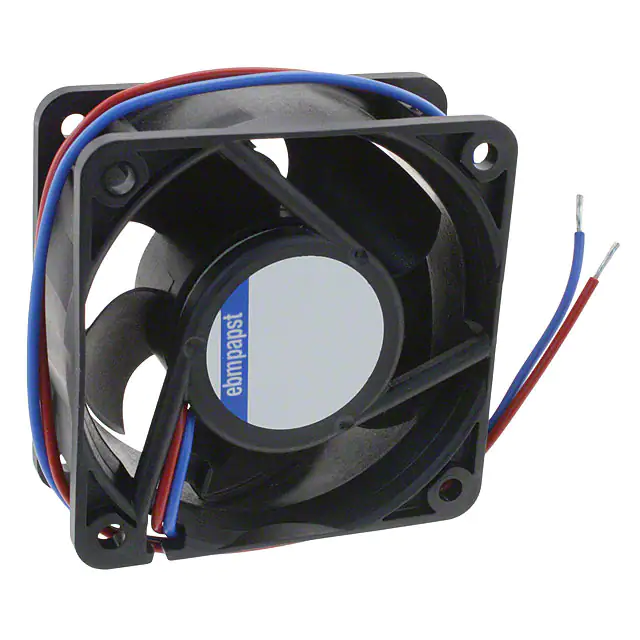

624NFAN AXIAL 60X25.4MM 24VDC WIRE |
1,025 |
|
Datasheet | 620 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 23.5 CFM (0.658m³/min) | - | Ball | Tubeaxial | - | 35.0dB(A) | 2.2 W | 6100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
|
622MFAN AXIAL 60X25.4MM 12VDC WIRE |
349 |
|
Datasheet | 620 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 17.7 CFM (0.496m³/min) | - | Ball | Tubeaxial | - | 29.0dB(A) | 1 W | 4550 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
614NHFAN AXIAL 60X25.4MM 24VDC WIRE |
673 |
|
Datasheet | 600N | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 27.1 CFM (0.759m³/min) | - | Ball | Tubeaxial | - | 37.0dB(A) | 2.1 W | 5600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.145 lb (65.77 g) |
_Series.jpg)
|
3414NHHFAN AXIAL 92X25.4MM 24VDC WIRE |
549 |
|
Datasheet | 3400N | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 60.0 CFM (1.68m³/min) | - | Ball | Tubeaxial | - | 39.0dB(A) | 3.1 W | 3250 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.22 lb (99.79 g) |
|
|
612NNFAN AXIAL 60X25.4MM 12VDC WIRE |
276 |
|
Datasheet | 600N | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 24.7 CFM (0.692m³/min) | - | Ball | Tubeaxial | - | 35.0dB(A) | 1.6 W | 5100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.145 lb (65.77 g) |
|
712F/2M-006FAN AXIAL 70X15MM 12VDC RECT |
178 |
|
Datasheet | 700F | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 21.2 CFM (0.594m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 32.0dB(A) | 1.1 W | 4300 RPM | 3 Position Rectangular Connector | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
|
612NHFAN AXIAL 60X25.4MM 12VDC WIRE |
1,515 |
|
Datasheet | 600N | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 27.1 CFM (0.759m³/min) | - | Ball | Tubeaxial | - | 37.0dB(A) | 2 W | 5600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
