DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
612FFAN AXIAL 60X15MM 12VDC WIRE |
1,782 |
|
Datasheet | 600F | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 17.1 CFM (0.479m³/min) | - | Sintec | Tubeaxial | - | 27.0dB(A) | 1 W | 3900 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.066 lb (29.94 g) |
|
514FFAN AXIAL 50X15MM 24VDC WIRE |
810 |
|
Datasheet | 500F | Box | Active | 24VDC | Square - 50mm L x 50mm H | 15.00mm | 11.8 CFM (0.330m³/min) | - | Sintec | Tubeaxial | - | 30.0dB(A) | 1 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|
412F/2H-038FAN AXL 40X10MM 12VDC RECT CONN |
126 |
|
Datasheet | 400F | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 5.9 CFM (0.165m³/min) | - | Sleeve | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 800 mW | 6000 RPM | 3 Position Rectangular Connector | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | - |
|
|
614FFAN AXIAL 60X15MM 24VDC WIRE |
211 |
|
Datasheet | 600F | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 17.1 CFM (0.479m³/min) | - | Sintec | Tubeaxial | - | 27.0dB(A) | 1.1 W | 3900 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.066 lb (29.94 g) |
|

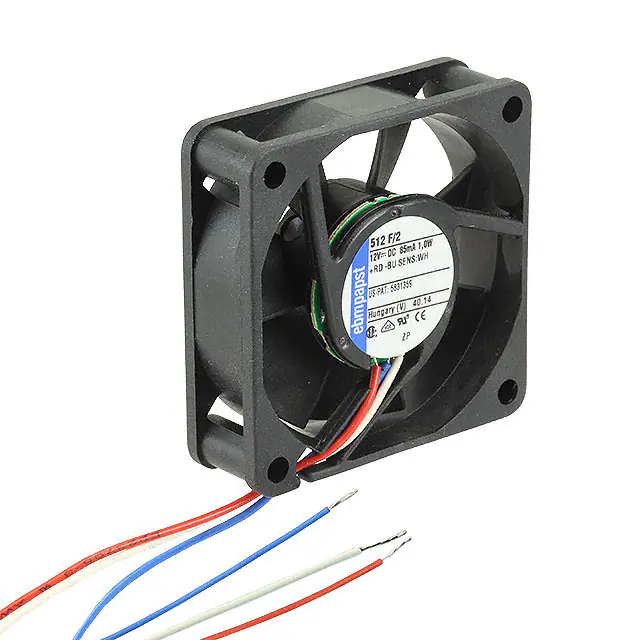

512F/2FAN AXIAL 50X15MM 12VDC WIRE |
1,172 |
|
Datasheet | 500F | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 11.8 CFM (0.330m³/min) | - | Sintec | Tubeaxial | Speed Sensor (Tach) | 30.0dB(A) | 1 W | 5000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.055 lb (24.95 g) |
|

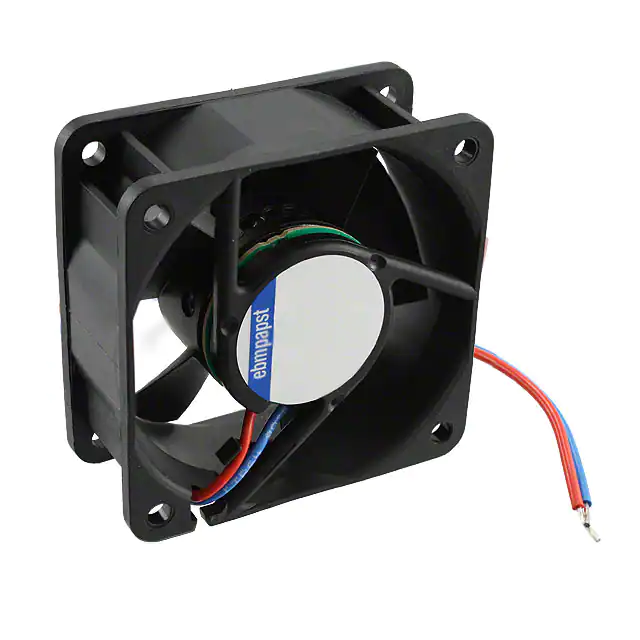

614NGMFAN AXIAL 60X25.4MM 24VDC WIRE |
1,450 |
|
Datasheet | 600NG | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 20.6 CFM (0.577m³/min) | - | Sintec | Tubeaxial | - | 28.0dB(A) | 1.7 W | 4100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.145 lb (65.77 g) |
|
|
612FHFAN AXIAL 60X15MM 12VDC WIRE |
107 |
|
Datasheet | 600F | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 19.4 CFM (0.543m³/min) | - | Sintec | Tubeaxial | - | 31.0dB(A) | 1.4 W | 4500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CE, CSA, UL, VDE | 0.066 lb (29.94 g) |
|
412/2-036FAN AXIAL 40X20MM 12VDC WIRE |
526 |
|
Datasheet | 400 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 5.9 CFM (0.165m³/min) | - | Sintec | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 18.0dB(A) | 900 mW | 6000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|

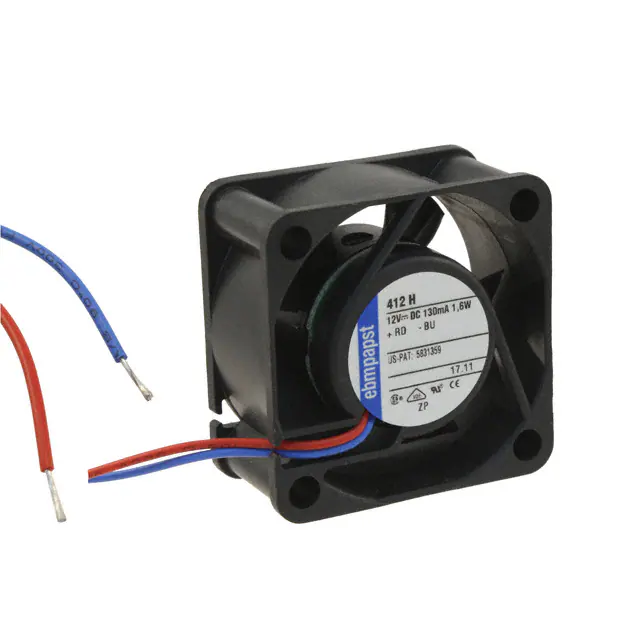

412HFAN AXIAL 40X20MM 12VDC WIRE |
425 |
|
Datasheet | 400 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.9 CFM (0.221m³/min) | - | Sintec | Tubeaxial | - | 29.0dB(A) | 1.6 W | 8100 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, UL, VDE | 0.059 lb (26.76 g) |
|

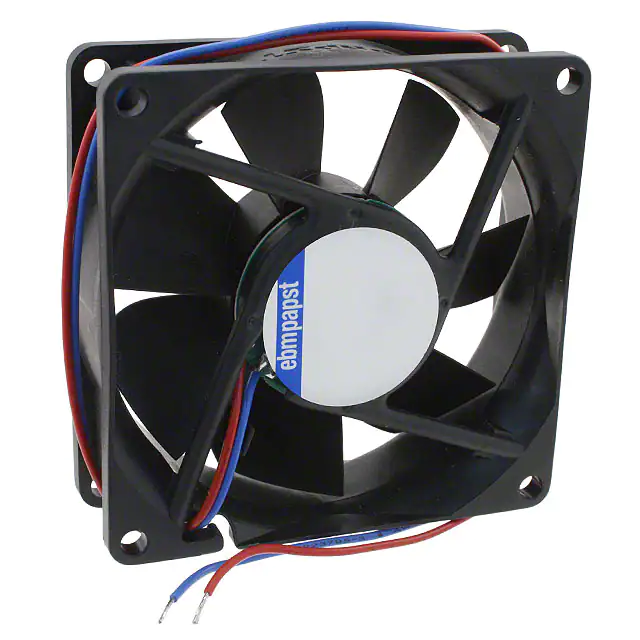

8414NGHFAN AXIAL 80X25.4MM 24VDC WIRE |
538 |
|
Datasheet | 8400N | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 46.5 CFM (1.30m³/min) | - | Sintec | Tubeaxial | - | 37.0dB(A) | 2.6 W | 3600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.21 lb (95.25 g) |
