DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

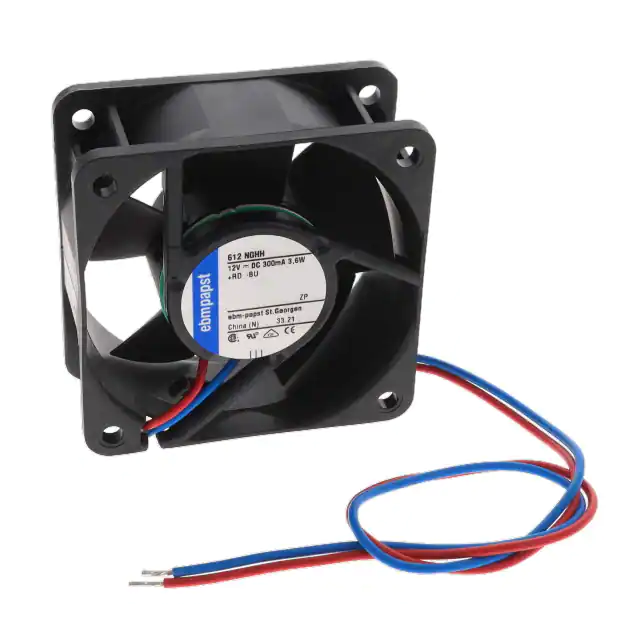

612NGHHFAN AXIAL 60X25.4MM 12VDC WIRE |
1,159 |
|
Datasheet | 600NG | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 33.0 CFM (0.924m³/min) | - | Sintec | Tubeaxial | - | 43.0dB(A) | 3.8 W | 6850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.19 lb (86.18 g) |
|
422J/2HPFAN AXIAL 40X28MM 12VDC WIRE |
2,117 |
|
Datasheet | 420J | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 22.4 CFM (0.627m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 6.8 W | 17200 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE | 0.099 lb (44.91 g) |
|
255HFAN AXIAL 25X8MM 5VDC WIRE |
619 |
|
Datasheet | 250 | Box | Active | 5VDC | Square - 25mm L x 25mm H | 8.00mm | 2.6 CFM (0.073m³/min) | - | Sintec | Tubeaxial | - | 23.0dB(A) | 600 mW | 12000 RPM | 2 Wire Leads | - | 14 ~ 131°F (-10 ~ 55°C) | CE, CSA, UL, VDE | 0.011 lb (4.99 g) |
|
8414NMFAN AXIAL 80X25.4MM 24VDC WIRE |
194 |
|
Datasheet | 8400N | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 34.1 CFM (0.955m³/min) | - | Ball | Tubeaxial | - | 27.0dB(A) | 1.4 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
_Series.jpg)
|
3412NFAN AXIAL 92X25.4MM 12VDC WIRE |
427 |
|
Datasheet | 3400N | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 49.4 CFM (1.38m³/min) | - | Ball | Tubeaxial | - | 32.0dB(A) | 2.2 W | 2700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.22 lb (99.79 g) |
|
624MFAN AXIAL 60X25.4MM 24VDC WIRE |
299 |
|
Datasheet | 620 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 17.7 CFM (0.496m³/min) | - | Ball | Tubeaxial | - | 29.0dB(A) | 1.5 W | 4550 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.187 lb (84.82 g) |
|
612NHHFAN AXIAL 60X25.4MM 12VDC WIRE |
1,780 |
|
Datasheet | 600N | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 33.0 CFM (0.924m³/min) | - | Ball | Tubeaxial | - | 43.0dB(A) | 3 W | - | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.19 lb (86.18 g) |
|
714FFAN AXIAL 70X15MM 24VDC WIRE |
273 |
|
Datasheet | 700F | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 15.00mm | 25.9 CFM (0.725m³/min) | - | Sintec | Tubeaxial | - | 38.0dB(A) | 1.5 W | 5300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.117 lb (53.07 g) |
|
|
8412NHFAN AXIAL 80X25.4MM 12VDC WIRE |
727 |
|
Datasheet | 8400N | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 46.5 CFM (1.30m³/min) | - | Ball | Tubeaxial | - | 37.0dB(A) | 1.7 W | 3600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
614NMLFAN AXIAL 60X25.4MM 24VDC WIRE |
472 |
|
Datasheet | 600N | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 14.7 CFM (0.412m³/min) | - | Ball | Tubeaxial | - | 19.0dB(A) | 1 W | 3000 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.145 lb (65.77 g) |
