DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
612FLFAN AXIAL 60X15MM 12VDC WIRE |
160 |
|
Datasheet | 600F | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 11.2 CFM (0.314m³/min) | - | Sintec | Tubeaxial | - | 16.0dB(A) | 400 mW | 2650 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.06 lb (27.22 g) |
|

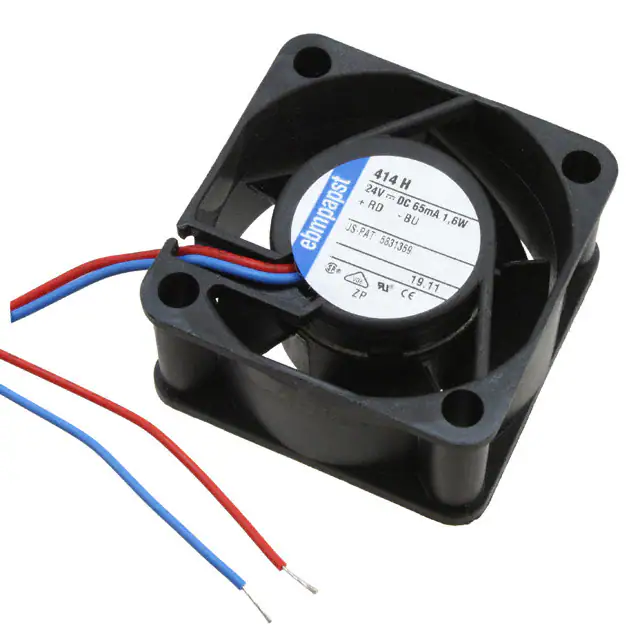

414HFAN AXIAL 40X20MM 24VDC WIRE |
1,191 |
|
Datasheet | 400 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 7.9 CFM (0.221m³/min) | - | Sintec | Tubeaxial | - | 29.0dB(A) | 1.6 W | 8100 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, UL, VDE | 0.059 lb (26.76 g) |
|
8412NGFAN AXIAL 80X25.4MM 12VDC WIRE |
458 |
|
Datasheet | 8400N | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 40.6 CFM (1.14m³/min) | - | Sintec | Tubeaxial | - | 32.0dB(A) | 2 W | 3100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
8414NGMFAN AXIAL 80X25.4MM 24VDC WIRE |
314 |
|
Datasheet | 8400N | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 34.1 CFM (0.955m³/min) | - | Sintec | Tubeaxial | - | 26.0dB(A) | 1.4 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
|
8414NGFAN AXIAL 80X25.4MM 24VDC WIRE |
164 |
|
Datasheet | 8400N | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 40.6 CFM (1.14m³/min) | - | Sintec | Tubeaxial | - | 32.0dB(A) | 2 W | 3100 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, CSA, UL, VDE | 0.209 lb (94.8 g) |
|
RL48-19/14MLFAN BLOWER 75.2X27MM 24VDC WIRE |
144 |
|
Datasheet | RL48 | Box | Active | 24VDC | Rectangular/Rounded - 75.2mm L x 75.5mm H | 27.00mm | 12.9 CFM (0.361m³/min) | - | Ball | Blower | - | 51.0dB(A) | 2.9 W | 3500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.165 lb (74.84 g) |
_Series.jpg)
|
3414NGHHFAN AXIAL 92X25.4MM 24VDC WIRE |
382 |
|
Datasheet | 3400N | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.40mm | 60.0 CFM (1.68m³/min) | - | Sintec | Tubeaxial | - | 39.0dB(A) | 3.2 W | 3250 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, UL, VDE | 0.22 lb (99.79 g) |
|
614NGNFAN AXIAL 60X25.4MM 24VDC WIRE |
133 |
|
Datasheet | 600NG | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 24.7 CFM (0.692m³/min) | - | Sintec | Tubeaxial | - | 35.0dB(A) | 2.1 W | - | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 0.19 lb (86.18 g) |
|
|
3412NMEFAN AXIAL 92X25.4MM 12VDC WIRE |
139 |
|
Datasheet | 3400N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 42.4 CFM (1.19m³/min) | - | Ball | Tubeaxial | - | 28.0dB(A) | 1.1 W | 2300 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CSA, UL, VDE | 0.22 lb (99.79 g) |
|
8312HFAN AXIAL 80X32MM 12VDC WIRE |
118 |
|
Datasheet | 8300 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 47.1 CFM (1.32m³/min) | - | Ball | Tubeaxial | - | 48.0dB(A) | 5.5 W | 5000 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
