DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFB0712HHDFAN AXIAL 70X20MM 12VDC WIRE |
2,645 |
|
Datasheet | AFB | Tray | Obsolete | 12VDC | Square - 70mm L x 70mm H | 20.00mm | 40.4 CFM (1.13m³/min) | 0.222 in H2O (55.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 40.5dB(A) | 3 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.154 lb (69.85 g) |
|
FFB0812GHEFAN AXIAL 80X38MM 12VDC WIRE |
2,782 |
|
Datasheet | FFB | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 89.9 CFM (2.52m³/min) | 0.922 in H2O (229.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 59.8dB(A) | 13.8 W | 6600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|

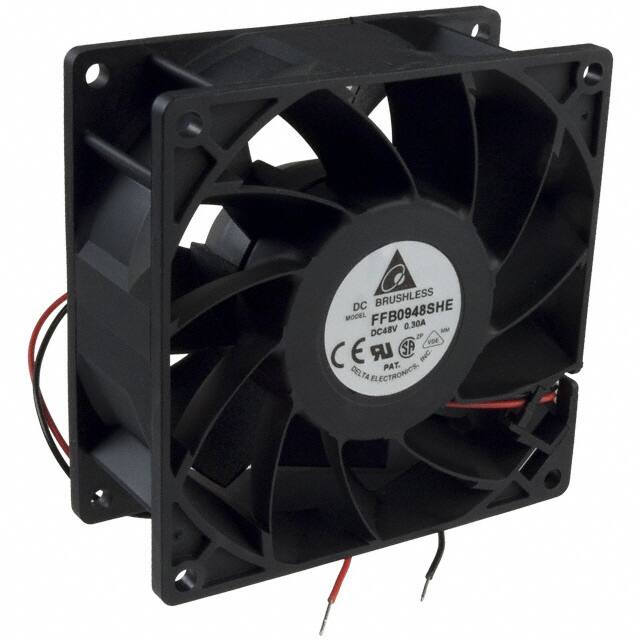

FFB0948SHEFAN AXIAL 92X38MM 48VDC WIRE |
4,978 |
|
Datasheet | FFB | Tray | Obsolete | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 100.3 CFM (2.81m³/min) | 0.572 in H2O (142.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 52.5dB(A) | 9.6 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
BFB1248HHFAN BLOWER 120X32MM 48VDC WIRE |
3,544 |
|
Datasheet | BFB | Tray | Obsolete | 48VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 35.3 CFM (0.988m³/min) | 0.984 in H2O (245.1 Pa) | Ball | Blower | Locked Rotor Protection | 54.0dB(A) | 10.56 W | 2800 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.508 lb (230.42 g) |
|
AFB0912LDFAN AXIAL 92X20MM 12VDC WIRE |
2,873 |
|
Datasheet | AFB | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 20.00mm | 41.0 CFM (1.15m³/min) | 0.084 in H2O (20.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.5dB(A) | 960 mW | 2100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.203 lb (92.08 g) |
|

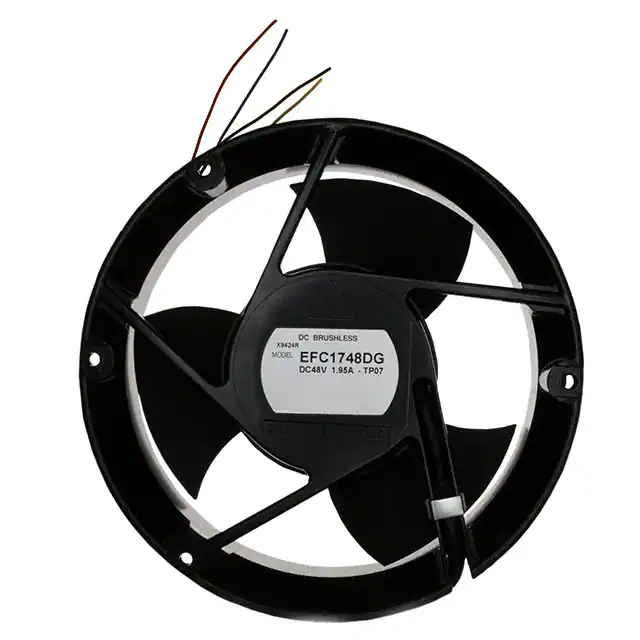

EFC1748DG-TP07FAN AXIAL 172X50.8MM 48VDC WIRE |
1,142 |
|
Datasheet | EFC | Box | Obsolete | 48VDC | Round - 172mm Dia | 50.80mm | 415.7 CFM (11.64m³/min) | 1.771 in H2O (441.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 63.4dB(A) | 59 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 1.9 lbs (861.8 g) |
|
AFB0912LD-F00FAN AXIAL 92X20MM 12VDC WIRE |
1,137 |
|
Datasheet | AFB | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 20.00mm | 41.0 CFM (1.15m³/min) | 0.084 in H2O (20.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.5dB(A) | 960 mW | 2100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.203 lb (92.08 g) |
|
BFB0505MFAN BLOWER 51X15MM 5VDC WIRE |
1,227 |
|
Datasheet | BFB | Tray | Obsolete | 5VDC | Square/Rounded - 51mm L x 51.3mm H | 15.00mm | 3.2 CFM (0.090m³/min) | 0.433 in H2O (107.9 Pa) | Ball | Blower | Locked Rotor Protection | 32.5dB(A) | 1.65 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.062 lb (28.12 g) |
|
AFB0912H-TA50FAN AXIAL 92X25.4MM 12VDC WIRE |
4,832 |
|
Datasheet | AFB | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 59.9 CFM (1.68m³/min) | 0.191 in H2O (47.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 2.52 W | 2800 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.267 lb (121.11 g) |
|
PFB0612GHE-T500FAN AXIAL 60X38MM 12VDC WIRE |
3,024 |
|
Datasheet | PFB | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.00mm | 55.6 CFM (1.56m³/min) | 1.444 in H2O (359.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 57.5dB(A) | 10.2 W | 10000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.287 lb (130.18 g) |
