DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
THB1448AEFAN AXIAL 139.7X38MM 48VDC WIRE |
2,624 |
|
Datasheet | THB | Box | Active | 48VDC | Square - 139.7mm L x 139.7mm H | 38.00mm | 325.9 CFM (9.13m³/min) | 1.650 in H2O (411.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.8dB(A) | 52.8 W | 6100 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 1.3 lbs (600.0 g) |
|

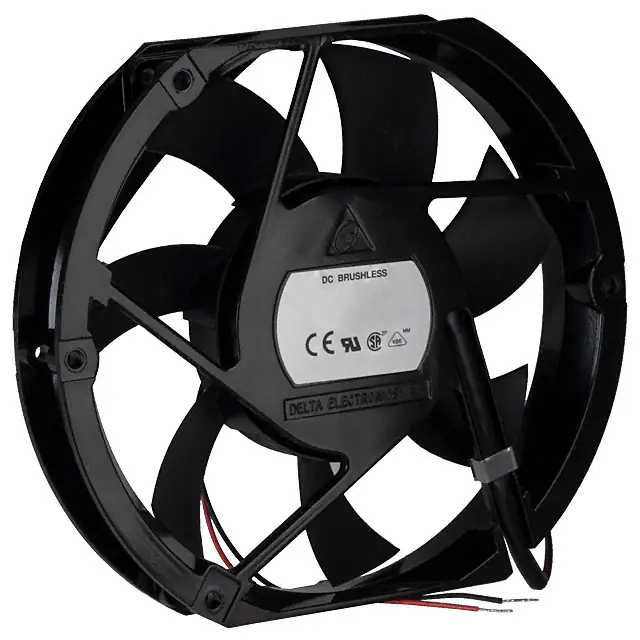

AFB1512L-TA50FAN AXIAL 172X25.4MM 12VDC WIRE |
1,876 |
|
Datasheet | AFB | Tray | Obsolete | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 25.40mm | 160.8 CFM (4.50m³/min) | 0.305 in H2O (75.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.0dB(A) | 6.72 W | 2400 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.948 lb (430.01 g) |
|

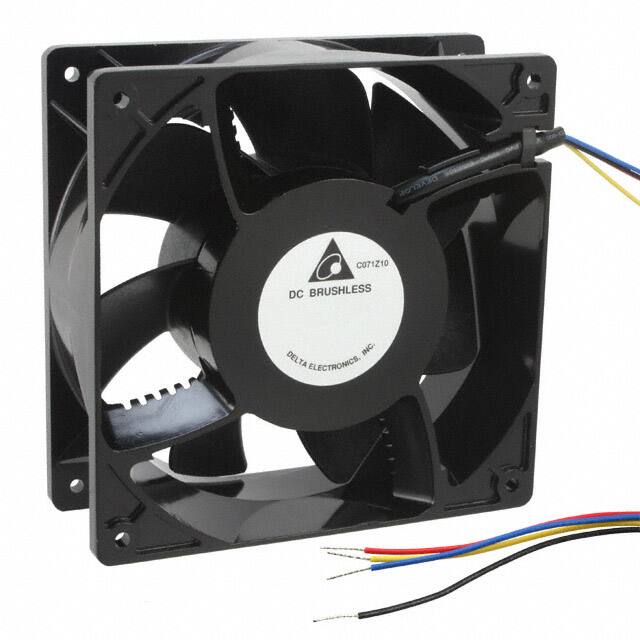

TFA1448CGFAN AXIAL 139.7X50.8MM 48VDC |
2,514 |
|
Datasheet | TFA | Box | Obsolete | 48VDC | Square - 139.7mm L x 139.7mm H | 50.80mm | 285.0 CFM (7.98m³/min) | 1.020 in H2O (255.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.5dB(A) | 34.56 W | 4200 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 1.6 lbs (725.7 g) |
|
THB1548DG-CXKRFAN AXIAL 172X50.8MM 48VDC WIRE |
1,367 |
|
Datasheet | THB | Bulk | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 410.5 CFM (11.49m³/min) | 2.085 in H2O (519.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 70.0dB(A) | 75.36 W | 5800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 1.7 lbs (771.1 g) |
|
|
EFC1748DG-TYSGFAN AXIAL 172X50.8MM 48VDC WIRE |
4,792 |
|
Datasheet | EFC | Bulk | Active | 48VDC | Round - 172mm Dia | 50.80mm | 415.7 CFM (11.64m³/min) | 1.771 in H2O (441.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 63.4dB(A) | 59.04 W | 5500 RPM | 4 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | - | 1.9 lbs (861.8 g) |
|

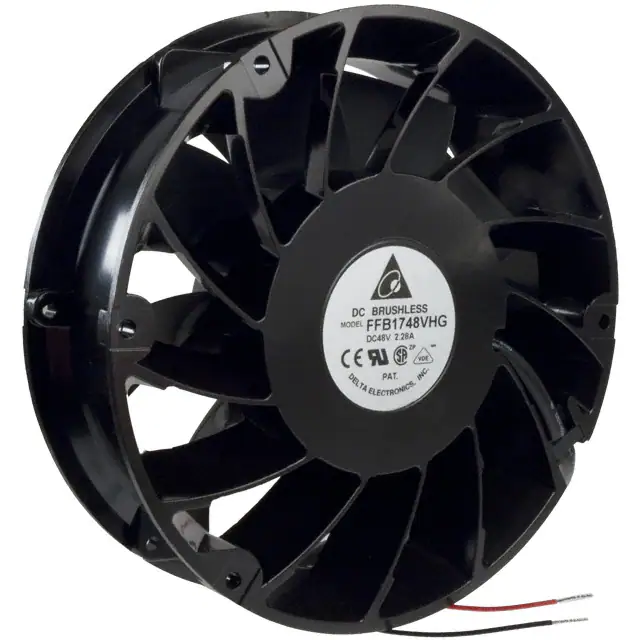

FFB1748VHGFAN AXIAL 172X50.8MM 48VDC WIRE |
2,395 |
|
Datasheet | FFB | Tray | Obsolete | 48VDC | Round - 172mm Dia | 50.80mm | 432.8 CFM (12.12m³/min) | 1.578 in H2O (393.1 Pa) | Ball | Tubeaxial | - | 72.0dB(A) | 91.2 W | 4600 RPM | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 2.1 lbs (952.5 g) |
|
AHB1548EH-F00FAN AXIAL 172X25.4MM 48VDC WIRE |
2,448 |
|
Datasheet | AHB | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 25.40mm | 271.1 CFM (7.59m³/min) | 0.736 in H2O (183.3 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 61.0dB(A) | 24.96 W | 4000 RPM | 3 Wire Leads | - | - | CE, CSA, UL, VDE | 0.948 lb (430.01 g) |
|
|
THB1548DG-CXKQFAN AXIAL 172X50.8MM 48VDC WIRE |
4,369 |
|
Datasheet | THB | Box | Active | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 410.5 CFM (11.49m³/min) | 2.085 in H2O (519.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.0dB(A) | 75.36 W | 5800 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, cURus, TUV | 1.7 lbs (771.1 g) |
|

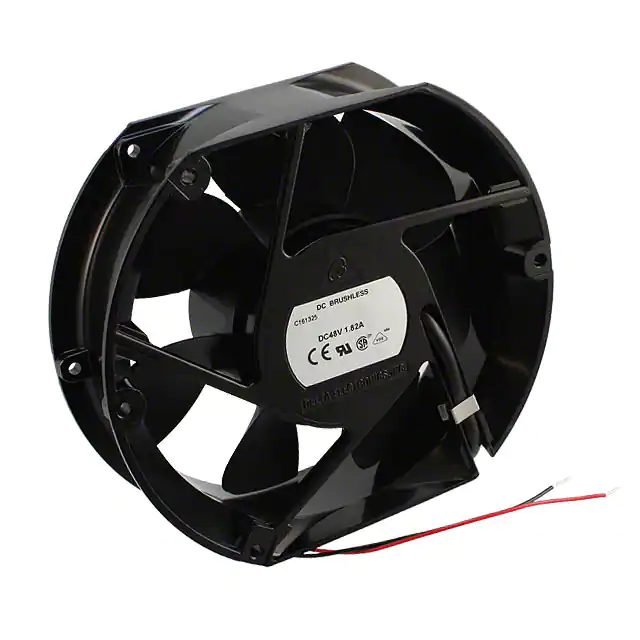

AHB1548GHGFAN AXIAL 172X50.8MM 48VDC WIRE |
2,550 |
|
Datasheet | AHB | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 50.80mm | 402.7 CFM (11.28m³/min) | 1.964 in H2O (489.2 Pa) | Ball | Tubeaxial | - | 68.5dB(A) | 72.96 W | 5200 RPM | 2 Wire Leads | - | -40 ~ 176°F (-40 ~ 80°C) | CE, CSA, UL, VDE | 1.8 lb (800.0 g) |
|

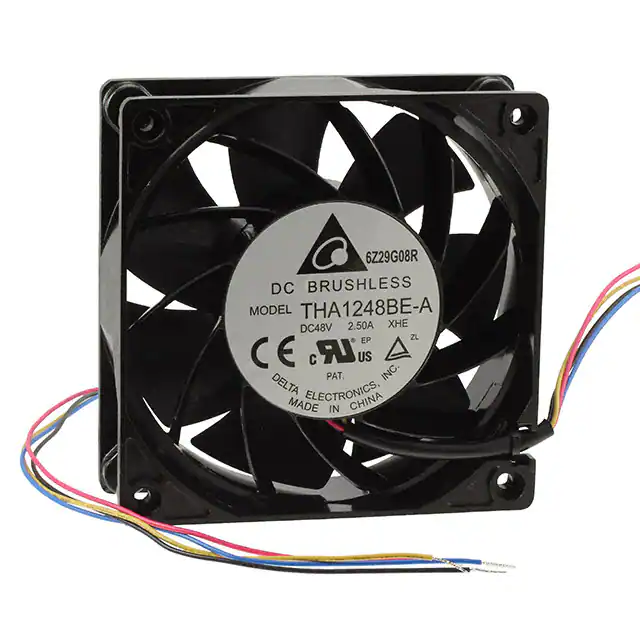

THA1248BE-AXHEFAN AXIAL 120X38MM 48VDC WIRE |
4,202 |
|
Datasheet | THA | Box | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 302.8 CFM (8.48m³/min) | 3.394 in H2O (845.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.5dB(A) | 80.64 W | 9000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 1.1 lbs (500.0 g) |
