DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

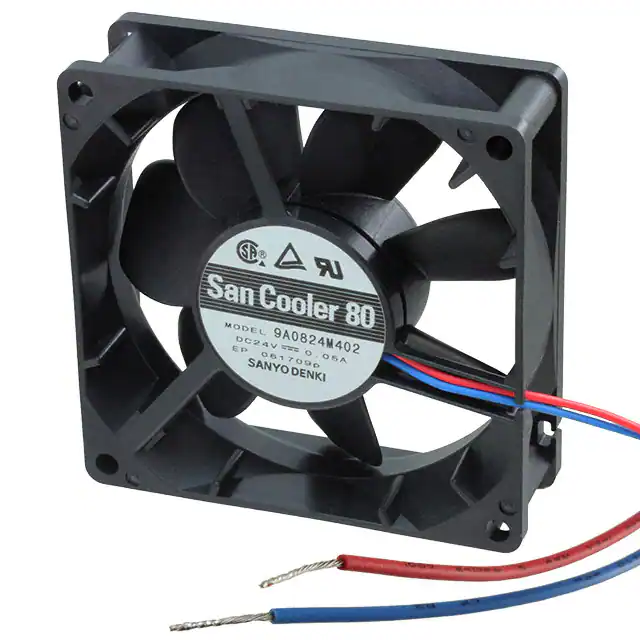

9A0824M402FAN AXIAL 80X25MM 24VDC WIRE |
3,668 |
|
Datasheet | San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 23.0dB(A) | 1.2 W | 2350 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
109P0412M3013FAN AXIAL 40X28MM 12VDC WIRE |
3,508 |
|
Datasheet | San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 5.3 CFM (0.148m³/min) | 0.087 in H2O (21.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.0dB(A) | 540 mW | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
109P0624J701FAN AXIAL 60X15MM 24VDC WIRE |
1,811 |
|
Datasheet | San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 21.5 CFM (0.602m³/min) | 0.347 in H2O (86.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.0dB(A) | 3.36 W | 6200 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|
109P0412G3023FAN AXIAL 40X28MM 12VDC WIRE |
2,898 |
|
Datasheet | San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 14.8 CFM (0.414m³/min) | 0.719 in H2O (179.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 42.0dB(A) | 3.72 W | 11500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
109P0412H301FAN AXIAL 40X28MM 12VDC WIRE |
3,233 |
|
Datasheet | San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Speed Sensor (Tach) | 37.0dB(A) | 2.34 W | 8700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
9A0924G401FAN AXIAL 92X25MM 24VDC WIRE |
2,438 |
|
Datasheet | San Cooler 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 62.1 CFM (1.74m³/min) | 0.267 in H2O (66.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 43.0dB(A) | 4.56 W | 3900 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|

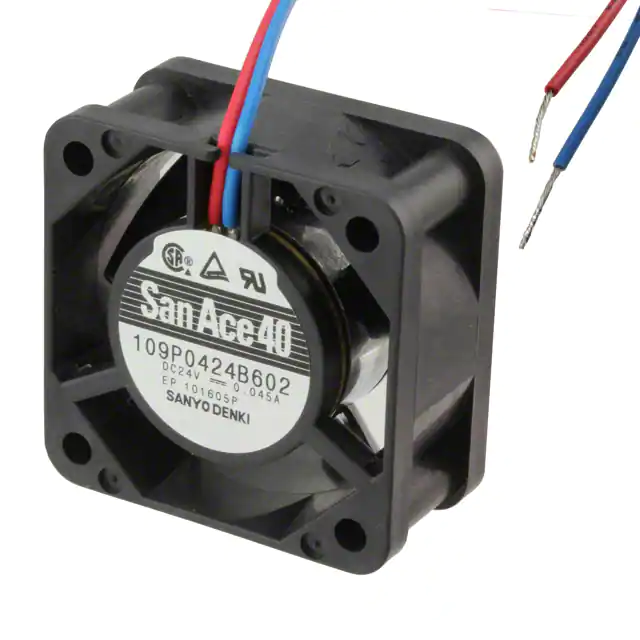

109P0424B602FAN AXIAL 40X20MM 24VDC WIRE |
2,264 |
|
Datasheet | San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 4.9 CFM (0.137m³/min) | 0.114 in H2O (28.4 Pa) | Ball | Tubeaxial | - | 25.0dB(A) | 1.44 W | 5200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.101 lb (45.81 g) |
|

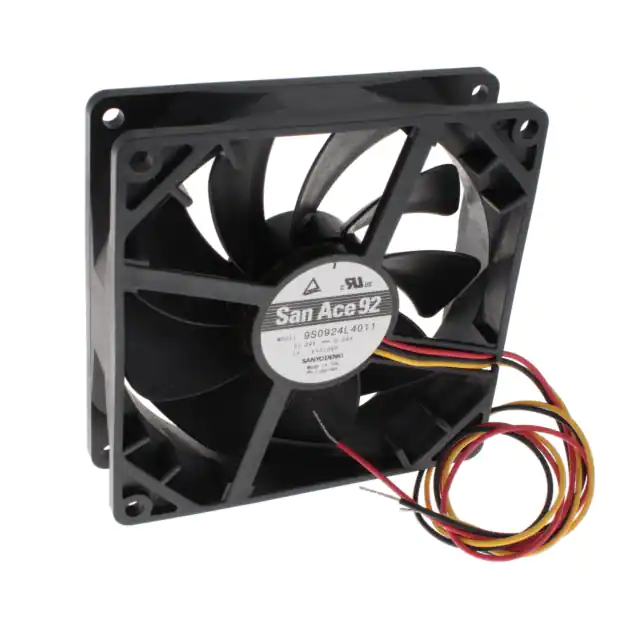

9S0924L4011FAN AXIAL 92X25MM 24VDC WIRE |
1,190 |
|
Datasheet | San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.053 in H2O (13.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 17.0dB(A) | 960 mW | 1750 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
9S0912M4011FAN AXIAL 92X25MM 12VDC WIRE |
1,591 |
|
Datasheet | San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 37.8 CFM (1.06m³/min) | 0.087 in H2O (21.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 22.0dB(A) | 1.32 W | 2250 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
|
9S0912L401FAN AXIAL 92X25MM 12VDC WIRE |
1,890 |
|
Datasheet | San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.053 in H2O (13.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 17.0dB(A) | 840 mW | 1750 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
