DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9S0812L4021FAN AXIAL 80X25MM 12VDC WIRE |
4,977 |
|
Datasheet | San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 23.3 CFM (0.652m³/min) | 0.073 in H2O (18.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 16.0dB(A) | 600 mW | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.167 lb (75.75 g) |
|

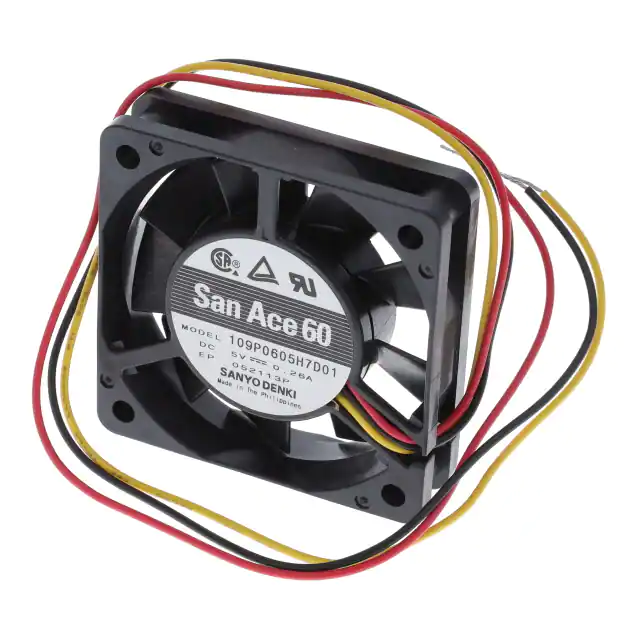

109P0605H7D01FAN AXIAL 60X15MM BALL 5VDC WIRE |
2,659 |
|
Datasheet | San Ace 60 | Box | Active | 5VDC | Square - 60mm L x 60mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.153 in H2O (38.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 32.0dB(A) | 1.3 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|
109P0524H701FAN AXIAL 52X15MM 24VDC WIRE |
3,478 |
|
Datasheet | San Ace 52 | Box | Active | 24VDC | Square - 52mm L x 52mm H | 15.00mm | 9.0 CFM (0.252m³/min) | 0.128 in H2O (31.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 1.2 W | 4600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
109P0624J702FAN AXIAL 60X15MM 24VDC WIRE |
4,693 |
|
Datasheet | San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 21.5 CFM (0.602m³/min) | 0.347 in H2O (86.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 3.36 W | 6200 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|
109P0424F3023FAN AXIAL 40X28MM 24VDC WIRE |
1,285 |
|
Datasheet | San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 8.6 CFM (0.241m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 30.0dB(A) | 1.32 W | 6700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
9S0812M401FAN AXIAL 80X25MM 12VDC WIRE |
2,486 |
|
Datasheet | San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 22.0dB(A) | 960 mW | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.167 lb (75.75 g) |
|
|
9S0812M4011FAN AXIAL 80X25MM 12VDC WIRE |
2,101 |
|
Datasheet | San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 22.0dB(A) | 960 mW | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.167 lb (75.75 g) |
|
9S0612M402FAN AXIAL 60X25MM 12VDC WIRE |
2,367 |
|
Datasheet | San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 14.1 CFM (0.395m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | - | 16.0dB(A) | 840 mW | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.122 lb (55.34 g) |
|
9S0912L402FAN AXIAL 92X25MM 12VDC WIRE |
3,100 |
|
Datasheet | San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.053 in H2O (13.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 17.0dB(A) | 840 mW | 1750 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
9A0824L402FAN AXIAL 80X25MM 24VDC WIRE |
4,744 |
|
Datasheet | San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 23.0 CFM (0.644m³/min) | 0.059 in H2O (14.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 20.0dB(A) | 960 mW | 1850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
