DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9RA0624M400260X25MM 24VDC LOW NOISE |
3,900 |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA0624F4002160X25MM 24VDC LOW NOISE RBLS |
2,971 |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

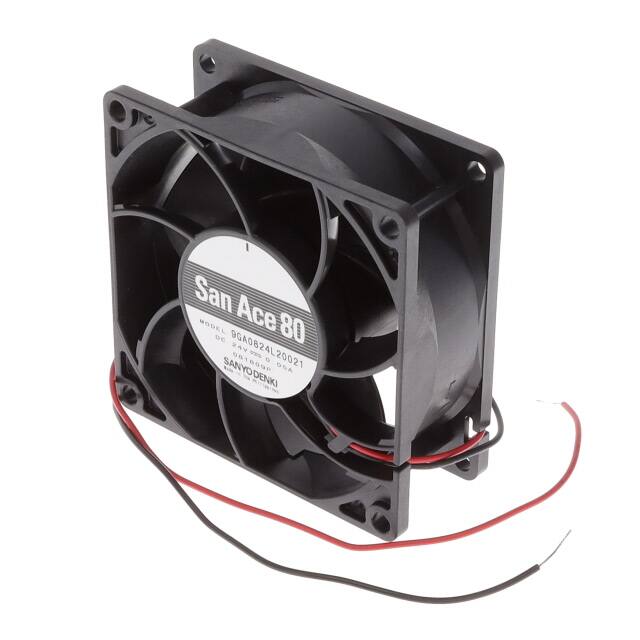

9GA0824L20021FAN AXIAL 80X32MM 24VDC WIRE |
4,146 |
|
Datasheet | San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 1.2 W | - | 2 Wire Leads | - | - | - | - |
|
9GA0812A20021FAN AXIAL 80X32MM 12VDC WIRE |
3,274 |
|
Datasheet | San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 3.72 W | - | 2 Wire Leads | - | - | - | - |
|
9RA0648G40011FAN AXIAL 60X25MM 48VDC WIRE |
4,023 |
|
Datasheet | San Ace 60 | Box | Active | 48VDC | Square - 60mm L x 60mm H | 25.00mm | 28.2 CFM (0.790m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 2.88 W | 5600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9G0912P2A0192X32MM 12V,HIGH PERF. DC TACH,P |
1,327 |
|
Datasheet | San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | - | - | - | 4 Wire Leads | - | - | CSA, TUV, UR | - |
|
9G1248F4021FAN AXIAL 120X25MM 48VDC WIRE |
3,576 |
|
Datasheet | San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.169 in H2O (42.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 35.0dB(A) | 2.88 W | 2250 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
9RA0848H10011FAN AXIAL 80X38MM 48VDC WIRE |
2,413 |
|
Datasheet | San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 38.00mm | 77.3 CFM (2.19m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 8.64 W | 6100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9GA0912L40192X25MM 12V,HIGH PERF.,LOW POWER |
1,829 |
|
Datasheet | San Ace 92 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 30.7 CFM (0.860m³/min) | 0.067 in H2O (16.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 21.0dB(A) | 1.08 W | 2000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA0824H10011FAN AXIAL 80X38MM 24VDC WIRE |
2,828 |
|
Datasheet | San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 77.3 CFM (2.19m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 46.0dB(A) | 7.92 W | 6100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
