DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9RA1424S1001140X38MM 24VDC LOW NOISE TACH |
2,103 |
|
Datasheet | San Ace 140 | Box | Active | 24VDC | Square - 140mm L x 140mm H | 38.00mm | 189.0 CFM (5.29m³/min) | 0.520 in H2O (129.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 49.0dB(A) | 6.9 W | 3750 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
|
9RA1448M1001140X38MM 48VDC LOW NOISE TACH |
4,544 |
|
Datasheet | San Ace 140 | Box | Active | 48VDC | Square - 140mm L x 140mm H | 38.00mm | 113.0 CFM (3.16m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 2.9 W | 2250 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|
9WL0912P4G001FAN AXIAL 92X25MM 12VDC WIRE |
4,218 |
|
Datasheet | San Ace 92W | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 68.1 CFM (1.91m³/min) | 0.326 in H2O (81.2 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 40.0dB(A) | 3.6 W | 4400 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|

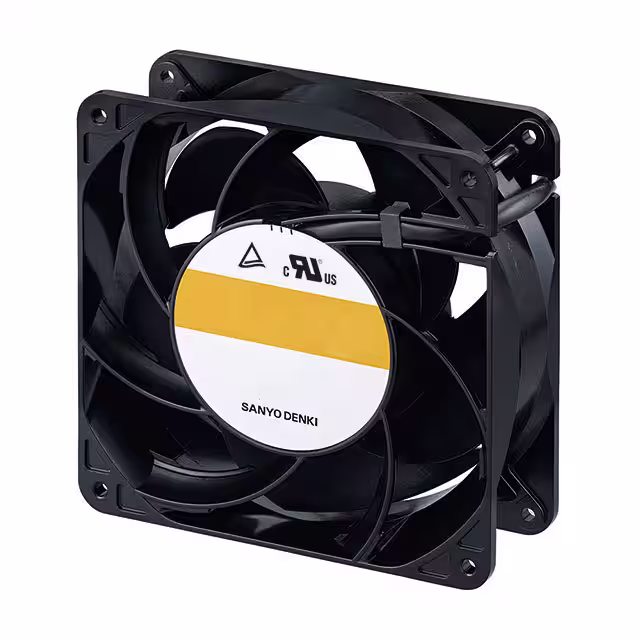

9LG1224G1001FAN |
4,815 |
|
Datasheet | San Ace 120 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9LG1248G1001FAN |
3,468 |
|
Datasheet | San Ace 120L | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
|
9GV5724P5H03FAN AXIAL 172X51MM 24VDC WIRE |
1,814 |
|
Datasheet | San Ace 172 | Box | Active | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 400.0 CFM (11.20m³/min) | 2.770 in H2O (690.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 74.0dB(A) | 96 W | 6300 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 1.8 lb (800.0 g) |
|
|
109E1312A102FAN AXIAL 127X38MM 12VDC WIRE |
4,240 |
|
Datasheet | San Ace 127 | Box | Active | 12VDC | Square - 127mm L x 127mm H | 38.00mm | 170.0 CFM (4.76m³/min) | 0.622 in H2O (155.0 Pa) | Ball | Tubeaxial | - | 52.0dB(A) | 16.8 W | 3850 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.882 lb (400.07 g) |
|
|
9GV1424P1H004FAN 24VDC 140X38MM TACH/PWM CONN |
4,095 |
|
- |
San Ace 140 | Box | Active | 24VDC | Square - 140mm L x 140mm H | 38.00mm | - | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 62.0dB(A) | - | 5200 RPM | 4 Position Rectangular Connector | - | -4 ~ 158°F (-20 ~ 70°C) | - | - |
|
9GP1224P1G001FAN AXIAL 120X38MM 24VDC WIRE |
2,635 |
|
Datasheet | San Ace 120GP | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 247.0 CFM (6.92m³/min) | 1.480 in H2O (368.7 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 38.4 W | 6550 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | 0.97 lb (439.98 g) |
|
|
9CRLB0612P0G001FAN 60x76mm 12VDC TACH/PWM |
4,401 |
|
Datasheet | San Ace 60L | Box | Active | 12VDC | Square - 60mm L x 60mm H | 76.00mm | 85.7 CFM (2.400m³/min) | 6.000 in H2O (1510.0 Pa) | Ball | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 75.0dB(A) | 43.2 W | 19700 RPM Front, 18300 RPM Rear | 4 Wire Leads per Fan | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
