AC Fans
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3956FAN AXIAL 92X25MM 230VAC TERM |
3,048 |
|
Datasheet | 3900 | Box | Obsolete | 230VAC | Square - 92mm L x 92mm H | 25.00mm | 34.7 CFM (0.972m³/min) | - | Ball | Tubeaxial | - | 35.0dB(A) | 11.00W | 2650 RPM | 2 Terminals | - | -40 ~ 176°F (-40 ~ 80°C) | CE, CSA, UL, VDE | 0.617 lb (279.87 g) |
|
5958WFAN AXIAL 127X38MM 230VAC WIRE |
2,930 |
|
Datasheet | 5900 | Box | Obsolete | 230VAC | Square - 127mm L x 127mm H | 38.00mm | 121.2 CFM (3.39m³/min) | 0.261 in H2O (65.0 Pa) | Ball | Tubeaxial | - | 46.0dB(A) | 17.00W | 3100 RPM | 2 Wire Leads | - | -22 ~ 167°F (-30 ~ 75°C) | CCC, CE, CSA, UL, VDE | 1.3 lbs (589.7 g) |
|

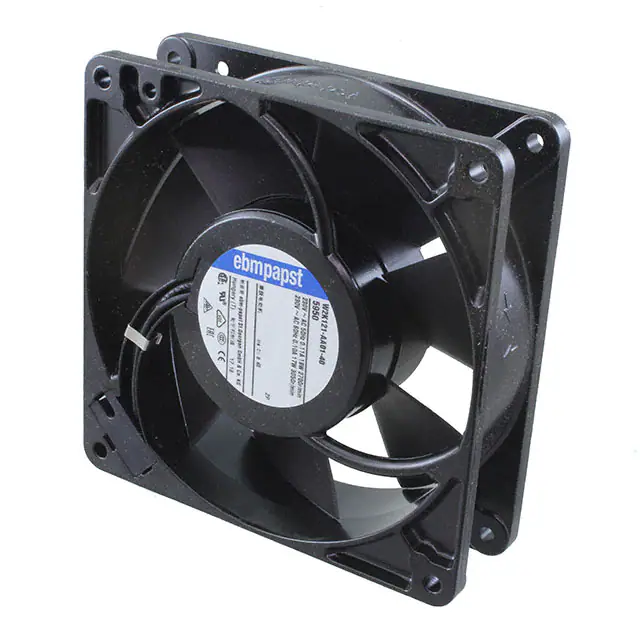

5950FAN AXIAL 127X38MM 230VAC |
4,213 |
|
Datasheet | 5900 | Bulk | Obsolete | 230VAC | Square - 127mm L x 127mm H | 38.00mm | 106.0 CFM (2.97m³/min) | - | Sintec | Tubeaxial | - | 43.0dB(A) | 18.00W | 2700 RPM | 2 Terminals | - | -4 ~ 122°F (-20 ~ 50°C) | CE, CSA, UL, VDE | - |
|
4656Z-853FAN AXIAL 119X38MM 230VAC |
1,277 |
|
- |
4000Z | Bulk | Active | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 94.1 CFM (2.63m³/min) | - | Ball | Tubeaxial | - | 40.0dB(A) | 19.00W | 2650 RPM | 2 Terminals | IP54/IP65 - Dust Protected, Water Resistant, Dust Tight, Water Resistant | -40 ~ 167°F (-40 ~ 75°C) | - | - |
|
|
5950WAC TUBEAXIAL FAN |
1,430 |
|
- |
- | Bulk | Obsolete | 230VAC | Square - 127mm L x 127mm H | 38.00mm | 105.9 CFM (2.97m³/min) | - | Sintec | Tubeaxial | - | 46.0dB(A) | 17.00W | - | 2 Wire Leads | - | 131°F (55°C) | CSA, VDE, UL | - |
|
|
4628NAC AXIAL FAN |
2,718 |
|
- |
4000N | Bulk | Obsolete | 115VAC | Square - 119mm L x 119mm H | 38.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
3800FAN AXIAL 92X38MM 115VAC WIRE |
1,386 |
|
Datasheet | 3000 | Bulk | Active | 115VAC | Square - 92mm L x 92mm H | 38.00mm | 31.8 CFM (0.890m³/min) | - | Sintec | Tubeaxial | - | 26.0dB(A) | 8.00W | 1900 RPM | 2 Wire Leads | - | 14 ~ 176°F (-10 ~ 80°C) | CE, CSA, UL, VDE | 0.926 lb (420.03 g) |
|
|
3850FAN AXIAL 92X38MM 230VAC WIRE |
1,775 |
|
Datasheet | 3000 | Bulk | Active | 230VAC | Square - 92mm L x 92mm H | 38.00mm | 28.8 CFM (0.806m³/min) | - | Sintec | Tubeaxial | - | 24.0dB(A) | 9.00W | 1750 RPM | 2 Wire Leads | - | 14 ~ 167°F (-10 ~ 75°C) | CE, CSA, UL, VDE | 0.926 lb (420.03 g) |
|
55442.75160FAN BLOWER CF 300X79MM 230VAC |
1,238 |
|
Datasheet | QLK45 | Bulk | Active | 230VAC | Rectangular - 402mm L x 74.5mm H | 79.00mm | 83.0 CFM (2.32m³/min) | 0.353 in H2O (88.0 Pa) | Sleeve | Blower, Cross Flow | - | 50.0dB(A) | 24.00W | - | Terminal Block | - | - | - | 3.2 lbs (1.5 kg) |
|
55416.17090FAN BLOWER CF 122X108MM 115VAC |
2,573 |
|
Datasheet | QLN65 | Bulk | Active | 115VAC | Rectangular - 196mm L x 90mm H (65mm Dia) | 108.0mm | 74.0 CFM (2.07m³/min) | 0.200 in H2O (49.8 Pa) | Sleeve | Blower, Cross Flow | - | - | 42.00W | 1950 RPM | Terminal Block | - | 32 ~ 140°F (0 ~ 60°C) | - | 2 lbs (907.2 g) |
