AC Fans
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3900FAN AXIAL 92X25MM 115VAC TERM |
2,759 |
|
Datasheet | 3900 | Bulk | Obsolete | 115VAC | Square - 92mm L x 92mm H | 25.00mm | 41.2 CFM (1.15m³/min) | - | Sintec | Tubeaxial | - | 40.0dB(A) | 9.00W | 3150 RPM | 2 Terminals | - | -4 ~ 176°F (-20 ~ 80°C) | CE, CSA, UL, VDE | 0.617 lb (279.87 g) |
|
4600TAFAN AXIAL 113X37MM 115VAC WIRE |
1,486 |
|
Datasheet | 4600TA | Bulk | Active | 115VAC | Round - 113mm Dia | 37.00mm | 86.5 CFM (2.42m³/min) | - | Sintec | Tubeaxial | Frameless | 43.0dB(A) | 18.00W | 2900 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | - | 0.948 lb (430.01 g) |
|
4650ZWFAN AXIAL 119X38MM 230VAC WIRE |
1,312 |
|
Datasheet | 4000Z | Bulk | Obsolete | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 94.2 CFM (2.64m³/min) | - | Sintec | Tubeaxial | - | 40.0dB(A) | 19.00W | 2650 RPM | 2 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | - | 1.2 lbs (544.3 g) |
|
|
4606TAFAN AXIAL 113X37MM 115VAC WIRE |
3,683 |
|
Datasheet | 4600TA | Bulk | Obsolete | 115VAC | Round - 113mm Dia | 37.00mm | 86.5 CFM (2.42m³/min) | - | Ball | Tubeaxial | - | 44.0dB(A) | 18.00W | 2900 RPM | 2 Wire Leads | - | -40 ~ 176°F (-40 ~ 80°C) | CE, CSA, UL, VDE | 0.948 lb (430.01 g) |
|
|
3906LFAN AXIAL 92X25MM 115VAC TERM |
4,131 |
|
Datasheet | 3900 | Bulk | Obsolete | 115VAC | Square - 92mm L x 92mm H | 25.00mm | 23.0 CFM (0.644m³/min) | - | Ball | Tubeaxial | - | 27.0dB(A) | 5.00W | 1850 RPM | 2 Terminals | - | -40 ~ 176°F (-40 ~ 80°C) | CE, CSA, UL, VDE | 0.617 lb (279.87 g) |
|
|
3956MFAN AXIAL 92X25MM 230VAC TERM |
4,606 |
|
Datasheet | 3900 | Bulk | Obsolete | 230VAC | Square - 92mm L x 92mm H | 25.00mm | 26.5 CFM (0.742m³/min) | - | Ball | Tubeaxial | - | 29.0dB(A) | 6.00W | 2150 RPM | 2 Terminals | - | -40 ~ 176°F (-40 ~ 80°C) | CE, CSA, UL, VDE | 0.617 lb (279.87 g) |
|

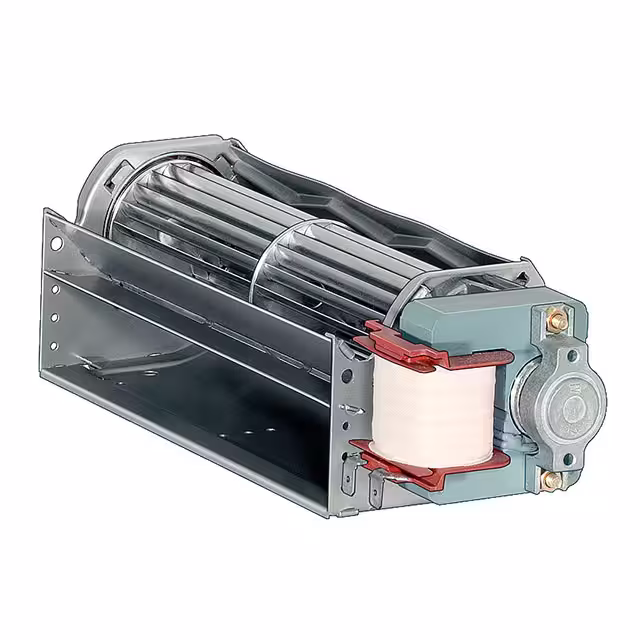

55442.45500FAN BLOWER CF 180X79MM 115VAC |
1,640 |
|
Datasheet | QLK45 | Bulk | Active | 115VAC | Rectangular - 265mm L x 71mm H (45mm Dia) | 79.00mm | 69.0 CFM (1.93m³/min) | 0.293 in H2O (73.0 Pa) | Sleeve | Blower, Cross Flow | - | - | 28.00W | 2200 RPM | Terminal Block | - | - | - | 1.9 lbs (861.8 g) |
|
55444.30000FAN BLOWER CF 200X74MM 115VAC |
3,794 |
|
Datasheet | QL4 | Bulk | Active | 115VAC | Rectangular - 282mm L x 59mm H (40mm Dia) | 74.00mm | 48.0 CFM (1.34m³/min) | 0.056 in H2O (14.0 Pa) | - | Blower, Cross Flow | - | - | 11.00W | 2300 RPM | 2 Terminals | - | 32 ~ 140°F (0 ~ 60°C) | - | 1.3 lbs (589.7 g) |
|
9956MFAN AXIAL 119X25MM 230VAC TERM |
3,499 |
|
Datasheet | 9900 | Bulk | Obsolete | 230VAC | Square - 119mm L x 119mm H | 25.00mm | 61.2 CFM (1.71m³/min) | - | Ball | Tubeaxial | - | 35.0dB(A) | 10.00W | 2250 RPM | 2 Terminals | - | -40 ~ 176°F (-40 ~ 80°C) | CE, CSA, UL, VDE | 0.716 lb (324.77 g) |
|

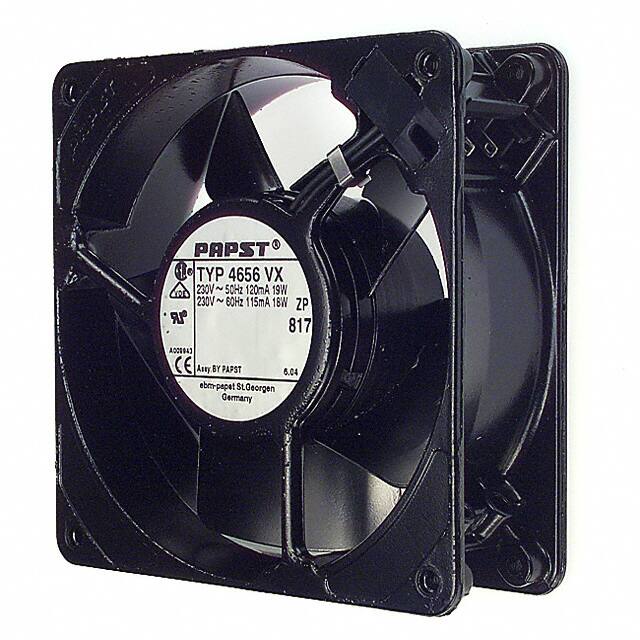

4656VX-817FAN AXIAL 119X38MM 230VAC TERM |
2,600 |
|
Datasheet | 4000VX | - | Obsolete | 230VAC | Square - 119mm L x 119mm H | 38.00mm | 106.0 CFM (2.97m³/min) | - | Ball | Tubeaxial | - | 45.0dB(A) | 18.00W | - | 2 Terminals | - | - | CE, CSA, UL, VDE | 1.1 lbs (499.0 g) |
