AC Fans
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9ADW1TS11P0H001225X99MM, ACDC, 115V, SPLASH PRO |
4,844 |
|
Datasheet | San Ace 225AD | Box | Active | 115VAC | Round - 225mm Dia | 99.00mm | 787.0 CFM (22.04m³/min) | 3.050 in H2O (759.7 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 140W | 3100 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | -4 ~ 140°F (-20 ~ 60°C) | CE, cURus, TUV | - |
|
9ADW1TS11P0M001225X99MM, ACDC, 115V, SPLASH PRO |
2,671 |
|
Datasheet | San Ace 225AD | Box | Active | 115VAC | Round - 225mm Dia | 99.00mm | 597.0 CFM (16.72m³/min) | 1.770 in H2O (440.9 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 67.0dB(A) | 61W | 2350 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | -4 ~ 140°F (-20 ~ 60°C) | CE, cURus, TUV | - |
|
9ADW1TS23P0M001225X99MM, ACDC, 230V, SPLASH PRO |
1,206 |
|
Datasheet | San Ace 225AD | Box | Active | 230VAC | Round - 225mm Dia | 99.00mm | 597.0 CFM (16.72m³/min) | 1.770 in H2O (440.9 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 67.0dB(A) | 61W | 2350 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | -4 ~ 140°F (-20 ~ 60°C) | CE, cURus, TUV | - |
|
9ADTS23P0F001225X99MM, ACDC, 230V, CENTRIFUGA |
4,036 |
|
Datasheet | San Ace 225AD | Box | Active | 230VAC | Round - 225mm Dia | 99.00mm | 621.0 CFM (17.39m³/min) | 1.930 in H2O (480.8 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 70.0W | 2450 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CE, cURus, TUV | - |
|
9ADW1TS23P0H001225X99MM, ACDC, 230V, SPLASH PRO |
4,537 |
|
Datasheet | San Ace 225AD | Box | Active | 230VAC | Round - 225mm Dia | 99.00mm | 787.0 CFM (22.04m³/min) | 3.050 in H2O (759.7 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 140W | 3100 RPM | 4 Wire Leads | IP56 - Dust Protected, Water Resistant | -4 ~ 140°F (-20 ~ 60°C) | CE, cURus, TUV | - |
|
9ADTS23P0G001225X99MM, ACDC, 230V, CENTRIFUGA |
4,249 |
|
Datasheet | San Ace 225AD | Box | Active | 230VAC | Round - 225mm Dia | 99.00mm | 812.0 CFM (22.74m³/min) | 3.400 in H2O (846.9 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 74.0dB(A) | 155W | 3200 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CE, cURus, TUV | - |
|

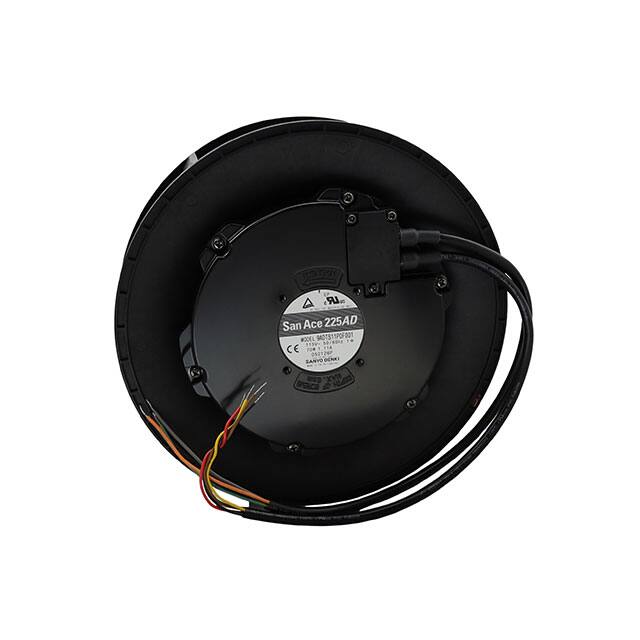

9ADTS11P0F001225X99MM, ACDC, 115V, CENTRIFUGA |
2,088 |
|
Datasheet | San Ace 225AD | Box | Active | 115VAC | Round - 225mm Dia | 99.00mm | 621.0 CFM (17.39m³/min) | 1.930 in H2O (480.8 Pa) | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 68.0dB(A) | 70.0W | 2450 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CE, cURus, TUV | - |
|
109S005FAN 120X38MM 100VAC |
4,971 |
|
Datasheet | San Ace 120 | Box | Active | 100VAC | Square - 119mm L x 119mm H | 38.00mm | 95.4 CFM (2.67m³/min) | 0.264 in H2O (65.7 Pa) | Ball | Tubeaxial | - | 43.0dB(A) | 12.00W | 3100 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | PSE | 1.2 lbs (544.3 g) |
|
9AD0901M1H1FAN 92X38MM 90/264VAC RBLS LSS |
4,403 |
|
Datasheet | San Ace 92AD | Box | Active | 100 ~ 240VAC | Square - 92mm L x 92mm H | 38.00mm | 41.7 CFM (1.17m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | - | 33.0dB(A) | 3.00W | 3100 RPM | 2 Position Rectangular Connector | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, PSE, TUV, UL | 0.551 lb (249.93 g) |
|
109S034FAN AXIAL 80X25MM 230VAC WIRE |
4,787 |
|
Datasheet | San Ace 80 | Box | Active | 230VAC | Square - 80mm L x 80mm H | 25.00mm | 22.3 CFM (0.624m³/min) | 0.114 in H2O (28.4 Pa) | - | Tubeaxial | Locked Rotor Protection | 30.0dB(A) | 7.00W | 2700 RPM | 2 Wire Leads | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 0.597 lb (270.79 g) |
