AC Fans
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WPA0624S400160X25MM 24VDC IP68 HIGH PERF TAC |
124 |
|
Datasheet | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9AD1201M4H001FAN 120X25MM 100-240VAC LOWSPEED |
4,596 |
|
Datasheet | San Ace 120AD | Box | Active | 100 ~ 240VAC | Square - 120mm L x 120mm H | 25.00mm | 63.0 CFM (1.76m³/min) | 0.141 in H2O (35.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 1.60W | 2250 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cURus, TUV, UKCA | - |
|
109S484-20FAN 120X25MM 115VAC ALARM |
3,545 |
|
Datasheet | San Ace 120 | Box | Active | 115VAC | Square - 119mm L x 119mm H | 25.00mm | 81.3 CFM (2.28m³/min) | 0.216 in H2O (53.9 Pa) | Ball | Tubeaxial | Alarm | 41.0dB(A) | 12.00W | 2900 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, PSE, TUV, UL | 0.86 lb (390.09 g) |
|
|
109S478UL-30120X38MM 200V,SAN ACE, SNSR VLT |
2,857 |
|
Datasheet | San Ace 120 | Box | Active | 200VAC | Square - 120mm L x 120mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.276 in H2O (68.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 16.00W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|
|
109S478UL-20FAN 120X38MM 200VAC ALARM |
3,262 |
|
Datasheet | San Ace 120 | Box | Active | 200VAC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.276 in H2O (68.7 Pa) | Ball | Tubeaxial | Alarm | 45.0dB(A) | 16.00W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, PSE, TUV, UL | 1.3 lbs (589.7 g) |
|
|
109S474UL-20FAN 120X38MM 115VAC ALARM |
4,786 |
|
Datasheet | San Ace 120 | Box | Active | 115VAC | Square - 119mm L x 119mm H | 38.00mm | 102.4 CFM (2.87m³/min) | 0.276 in H2O (68.7 Pa) | Ball | Tubeaxial | Alarm | 45.0dB(A) | 16.00W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, PSE, TUV, UL | 1.3 lbs (589.7 g) |
|
|
109S494-3092X25MM 230V,MINI ACE, SNSR VLT |
3,238 |
|
Datasheet | San Ace 92 | Box | Active | 230VAC | Square - 92mm L x 92mm H | 25.00mm | 38.9 CFM (1.09m³/min) | 0.197 in H2O (49.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 9.00W | 3100 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, PSE, TUV, UR | - |
|

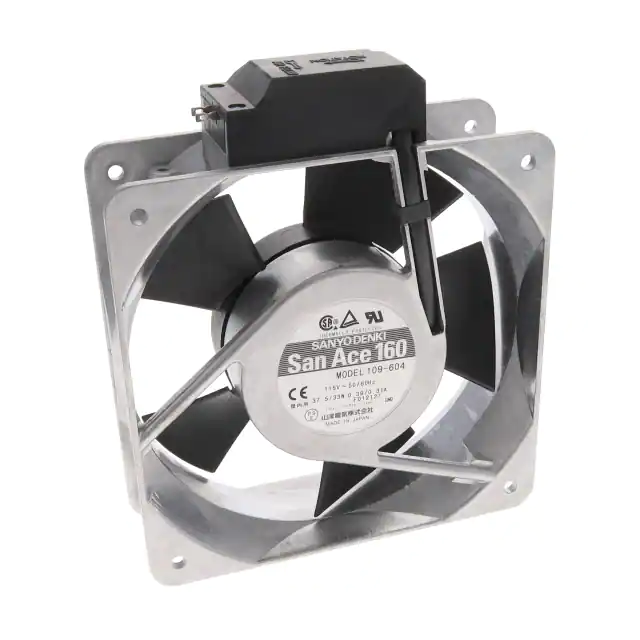

109-604FAN 160X51MM 115VAC |
3,098 |
|
Datasheet | San Ace 160 | Box | Active | 115VAC | Square - 160mm L x 160mm H | 51.00mm | 300.4 CFM (8.41m³/min) | 0.669 in H2O (166.6 Pa) | Ball | Tubeaxial | - | 60.0dB(A) | 33.00W | 3350 RPM | 2 Terminals | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 2.4 lbs (1.1 kg) |
|

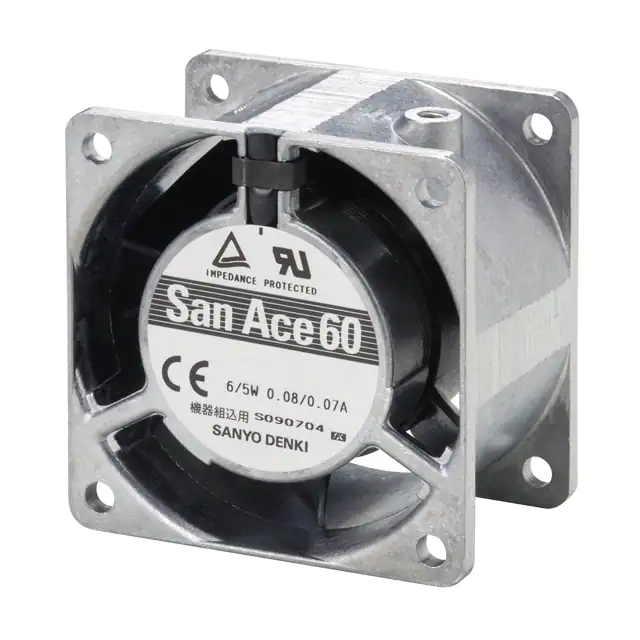

109-133FAN 60X38MM 115VAC |
1,684 |
|
Datasheet | San Ace 60 | Box | Active | 115VAC | Square - 60mm L x 60mm H | 38.00mm | 14.1 CFM (0.395m³/min) | 0.094 in H2O (23.4 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 5.00W | 3150 RPM | 2 Wire Leads | - | -22 ~ 140°F (-30 ~ 60°C) | CE, TUV, UL | 0.375 lb (170.1 g) |
|
|
109S088FAN AXIAL 120X25MM 200VAC WIRE |
1,020 |
|
Datasheet | San Ace 120 | Box | Active | 200VAC | Square - 120mm L x 120mm H | 25.00mm | 81.3 CFM (2.28m³/min) | 0.216 in H2O (53.9 Pa) | - | Tubeaxial | Locked Rotor Protection | 41.0dB(A) | 12.00W | 2900 RPM | 2 Wire Leads | - | -22 ~ 140°F (-30 ~ 60°C) | CE, CSA, PSE, TUV, UL | 0.816 lb (370.13 g) |
