Sensor Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensor Type | Sensing Range | Interface | Sensitivity | Voltage - Supply | Embedded | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TBMA780-Q-LT-01AEVALUATION BOARD FOR MA780 |
4,533 |
|
Datasheet | MagAlpha | Box | Active | Magnetic, Linear Position | - | Serial, SPI | - | 3V ~ 3.6V | No | Board(s), Accessories | MA780 |
|
TBMA730-Q-LT-01AMA730 EVALUATION BOARD |
2,060 |
|
Datasheet | MagAlpha | Box | Active | Magnetic, Linear Position | - | Serial, SPI | - | 3V ~ 3.6V | No | Board(s), Accessories | MA730 |
|
EVCS1802-S-20-00ALINEAR HALL-EFFECT CURRENT SENSO |
3,701 |
|
Datasheet | - | Box | Active | Current Sensor | ±20A | Analog | 66mV/A | 3V ~ 3.6V | No | Board(s) | MCS1802 |
|
EVCS1803-S-50-00ALINEAR HALL-EFFECT CURRENT SENSO |
3,324 |
|
Datasheet | - | Box | Active | Current Sensor | ±50A | Analog | 40mV/A | 4.5V ~ 5.5V | No | Board(s) | MCS1803 |
|
TBMA710-Q-LT-01AMA710 EVALUATION BOARD |
1,105 |
|
Datasheet | MagAlpha | Box | Active | Magnetic, Linear Position | - | Serial, SPI | - | 3V ~ 3.6V | No | Board(s), Accessories | MA710 |
|
|
TBMA702-Q-LT-01AMA702 EVALUATION BOARD |
2,625 |
|
Datasheet | MagAlpha | Box | Active | Magnetic, Linear Position | - | Serial, SPI | - | 3V ~ 3.6V | No | Board(s), Accessories | MA702 |
|
TBMA704-Q-LT-01AEVALUATION BOARD FOR MA704 |
4,808 |
|
Datasheet | MagAlpha | Box | Active | Magnetic, Linear Position | - | Serial, SPI | - | 3V ~ 3.6V | No | Board(s), Accessories | MA704 |
|
EVCS1803-S-20-00ALINEAR HALL-EFFECT CURRENT SENSO |
3,169 |
|
Datasheet | - | Box | Active | Current Sensor | ±20A | Analog | 100mV/A | 4.5V ~ 5.5V | No | Board(s) | MCS1803 |
|

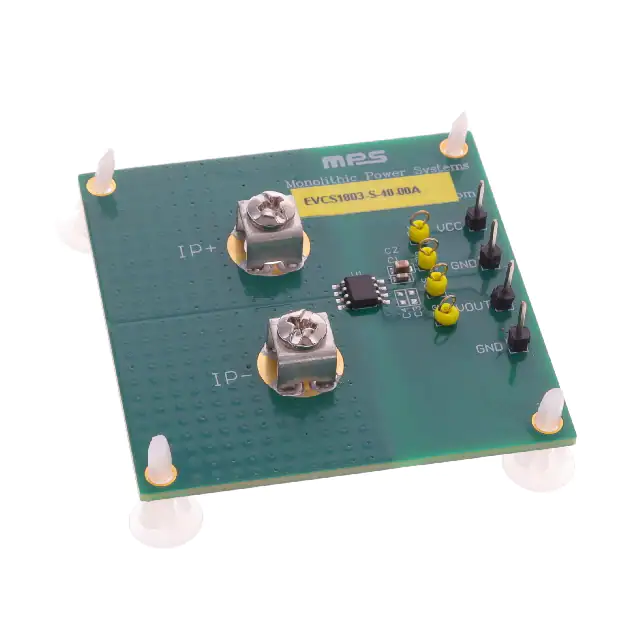

EVCS1803-S-40-00ALINEAR HALL-EFFECT CURRENT SENSO |
4,421 |
|
Datasheet | - | Box | Active | Current Sensor | ±40A | Analog | 50mV/A | 4.5V ~ 5.5V | No | Board(s) | MCS1803 |
|
EVCS1802-S-10-00ALINEAR HALL-EFFECT CURRENT SENSO |
3,598 |
|
Datasheet | - | Box | Active | Current Sensor | ±10A | Analog | 132mV/A | 3V ~ 3.6V | No | Board(s) | MCS1802 |
