Sensor Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensor Type | Sensing Range | Interface | Sensitivity | Voltage - Supply | Embedded | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVCS1803-S-05-00ALINEAR HALL-EFFECT CURRENT SENSO |
4,246 |
|
Datasheet | - | Box | Active | Current Sensor | ±5A | Analog | 400mV/A | 4.5V ~ 5.5V | No | Board(s) | MCS1803 |
|
TBMA732-Q-LT-00AEVALUATION BOARD FOR MA732 |
2,210 |
|
Datasheet | MagAlpha | Box | Active | Magnetic, Linear Position | - | Serial, SPI | - | 3V ~ 3.6V | No | Board(s), Accessories | MA732 |
|
TBMA310-Q-LT-01AEVALUATION BOARD FOR MA310 |
3,462 |
|
Datasheet | MagAlpha | Box | Active | Magnetic, Linear Position | - | Serial, SPI | - | 3V ~ 3.6V | No | Board(s), Accessories | MA310 |
|
TBMA850-Q-LT-01AMA850 EVALUATION BOARD |
1,315 |
|
Datasheet | MagAlpha | Box | Active | Magnetic, Rotary Position | - | Serial, SPI | - | 3V ~ 3.6V | No | Board(s), Accessories | MA850 |
|
TBMAQ473-Q-LT-01ALONG EVAL BOARD FOR MAQ473 |
3,218 |
|
Datasheet | MagAlpha | Box | Active | Magnetic, Linear Position | - | Serial, SPI | 5mT | 3V ~ 3.6V | No | Board(s), Accessories | MAQ473 |
|

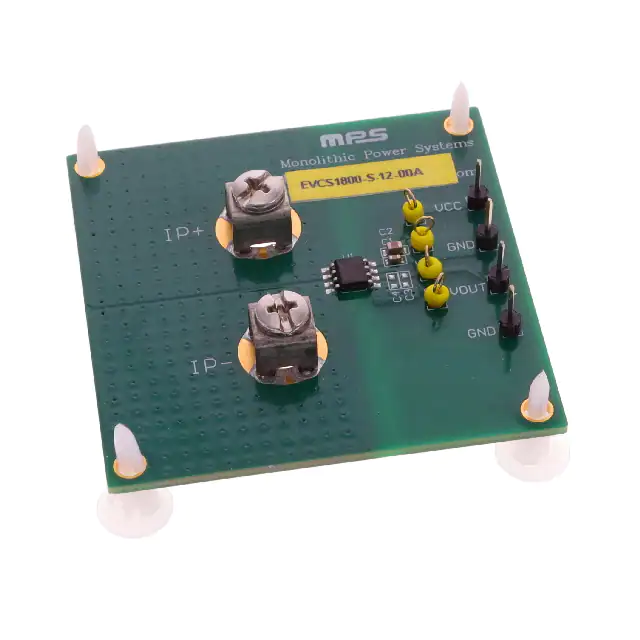

EVCS1800-S-12-00ALINEAR HALL-EFFECT CURRENT SENSO |
1,021 |
|
Datasheet | - | Box | Active | Current Sensor | ±12.5A | Analog | 110mV/A | 3V ~ 3.6V | No | Board(s) | MCS1800 |
|
EVCS1803-S-10-00ALINEAR HALL-EFFECT CURRENT SENSO |
3,887 |
|
Datasheet | - | Box | Active | Current Sensor | ±10A | Analog | 200mV/A | 4.5V ~ 5.5V | No | Board(s) | MCS1803 |
|
TBMA734-Q-LT-00ALONG EVAL BOARD FOR MA734 |
4,446 |
|
Datasheet | MagAlpha | Box | Active | Magnetic, Linear Position | - | Serial, SPI | 5mT | 3V ~ 3.6V | No | Board(s), Accessories | MA734 |
|
|
EVCS1823-Q-350BRN-00AULTRA-SMALL PACKAGE, LINEAR HALL |
2,421 |
|
Datasheet | - | Bulk | Active | Current Sensor | ±50A | Analog | 26.4mV/A | 3.3V | No | Board(s) | MCS1823 |
|
|
EVCS1823-Q-540BRN-00AULTRA-SMALL PACKAGE, LINEAR HALL |
3,277 |
|
Datasheet | - | Bulk | Active | Current Sensor | ±40A | Analog | 50mV/A | 5V | No | Board(s) | MCS1823 |
