Sensor Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensor Type | Sensing Range | Interface | Sensitivity | Voltage - Supply | Embedded | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

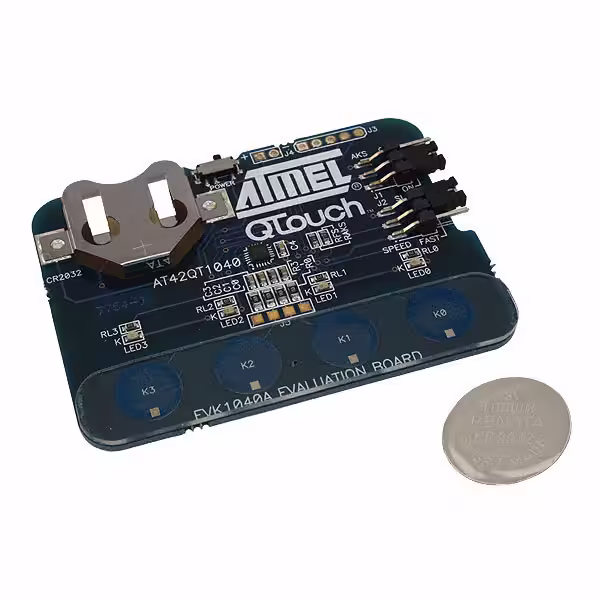

EVK1040AKIT EVALUATION FOR AT42QT1040 |
2,145 |
|
Datasheet | Quantum, QTouch™ | Box | Obsolete | Touch, Capacitive | 4 Buttons/Keys | Discrete | - | 1.8V ~ 5.5V | No | Board(s) | AT42QT1040 |
|

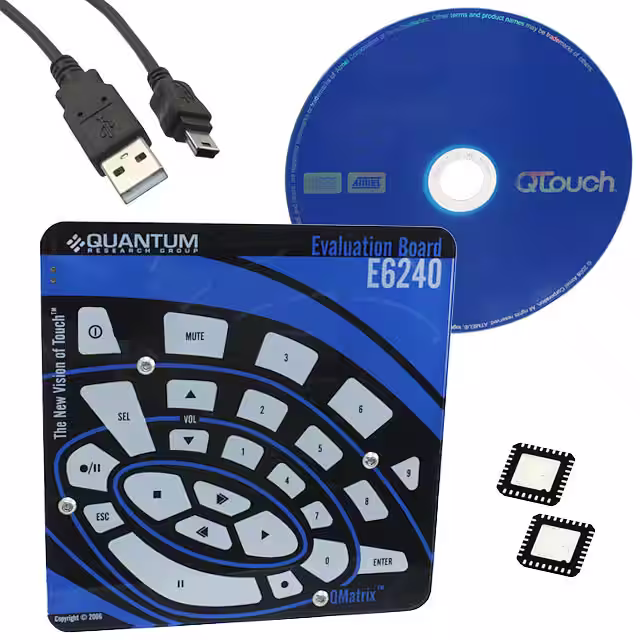

E6240KIT EVAL/DEV USING QT60240-ISG |
3,250 |
|
Datasheet | Quantum, QMatrix™ | Box | Obsolete | Touch, Capacitive | 16 / 24 Buttons/Keys | I2C, USB | - | 5V | No | Board(s), Cable(s) | QT60160, QT60240 |
|
E1106BOARD EVALUATION FOR QT1106-ISG |
3,261 |
|
Datasheet | Quantum, QTouch™ | Box | Obsolete | Touch, Capacitive | - | USB | - | 2.8V ~ 5V | No | Board(s) | QT1106 |
|

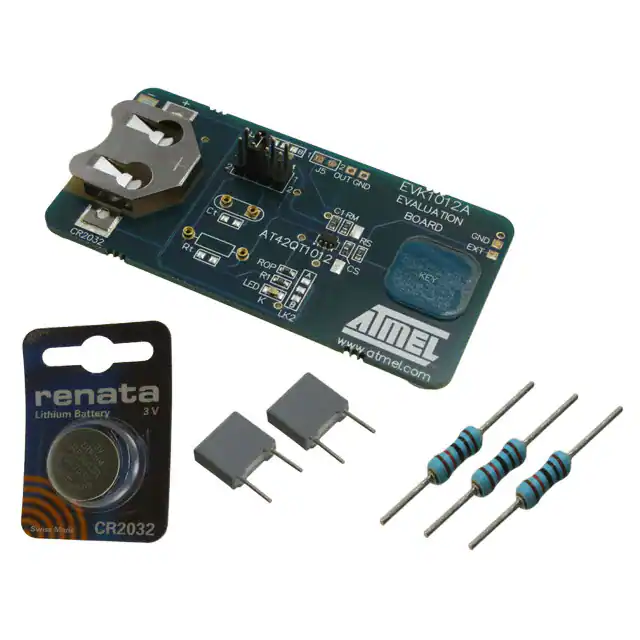

ATEVK1012ABOARD EVAL FOR AT42QT1012A |
2,340 |
|
Datasheet | QTouch™ | Box | Obsolete | Touch, Capacitive | 1 Button/Key | - | - | - | - | Board(s) | AT42QT1012 |
|

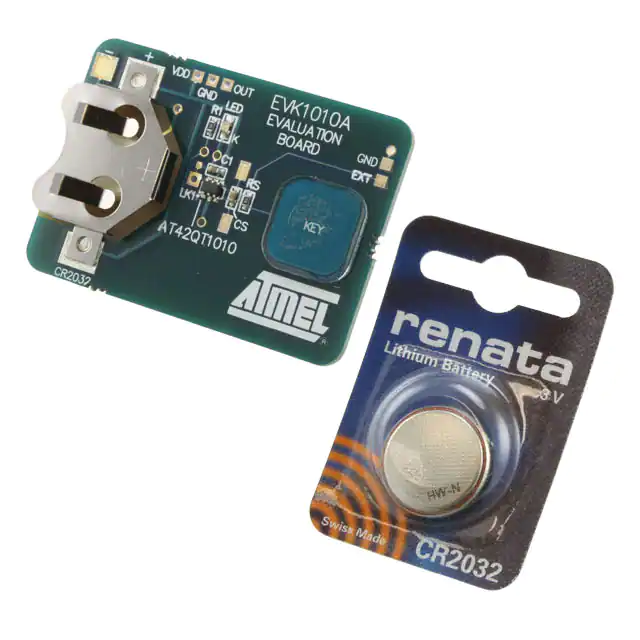

ATEVK1010ABOARD EVAL FOR AT42QT1010A |
2,829 |
|
Datasheet | QTouch™ | Box | Obsolete | Touch, Capacitive | 1 Button/Key | - | - | - | - | Board(s) | AT42QT1010 |
|
ATAVRQTOUCHXBOARD EVAL CAPACITIVE TOUCH |
2,123 |
|
Datasheet | QTouch™ | Box | Obsolete | Touch, Capacitive | 1 Slider, 1 Wheel, 2 Buttons | USB | - | 5V, USB | Yes, MCU, 8-Bit | Board(s) | AT90USB1287, ATxmega128A1 |
|

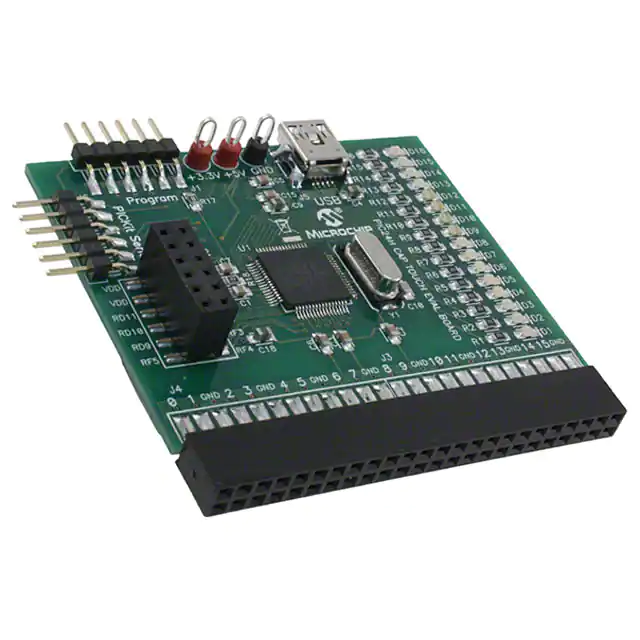

AC243026BOARD EVAL PIC24H MTOUCH CAP |
3,347 |
|
Datasheet | mTouch™ | Bulk | Active | Touch, Capacitive | - | Serial | - | 3.3V | Yes, MCU, 16-Bit | Board(s) | PIC24H |
|

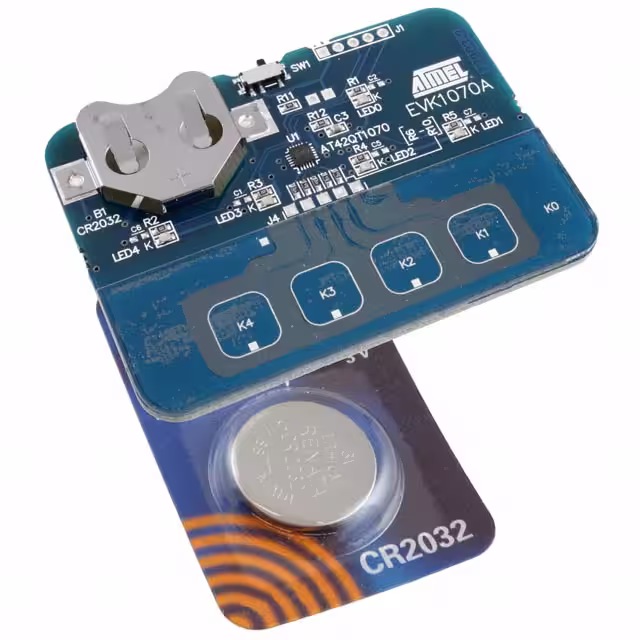

ATEVK1070AEVALUATION KIT STANDALONE |
3,251 |
|
Datasheet | QTouch™ | Box | Obsolete | Touch, Capacitive | 4 Buttons/Keys | - | - | - | No | Board(s) | AT42QT1070 |
|

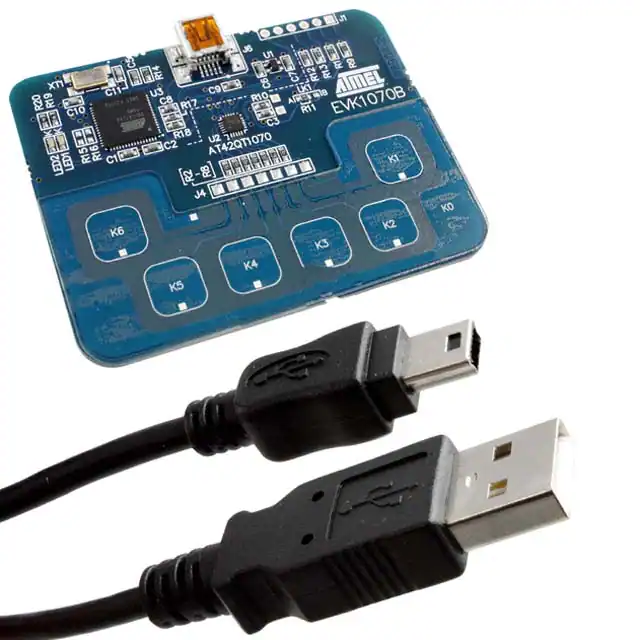

ATEVK1070BEVALUATION KIT COMMS |
3,470 |
|
Datasheet | QTouch™ | Box | Obsolete | Touch, Capacitive | 6 Buttons/Keys | USB | - | 5V, USB | No | Board(s), Cable(s) | AT42QT1070 |
|
TUNAG003MODULE MEMS COMPASS I2C CM1020 |
2,940 |
|
- |
Unagi | Box | Active | Magnetic, Digital Compass | - | I2C | - | 2.7V ~ 4V | Yes | Board(s) | CM1020 |
